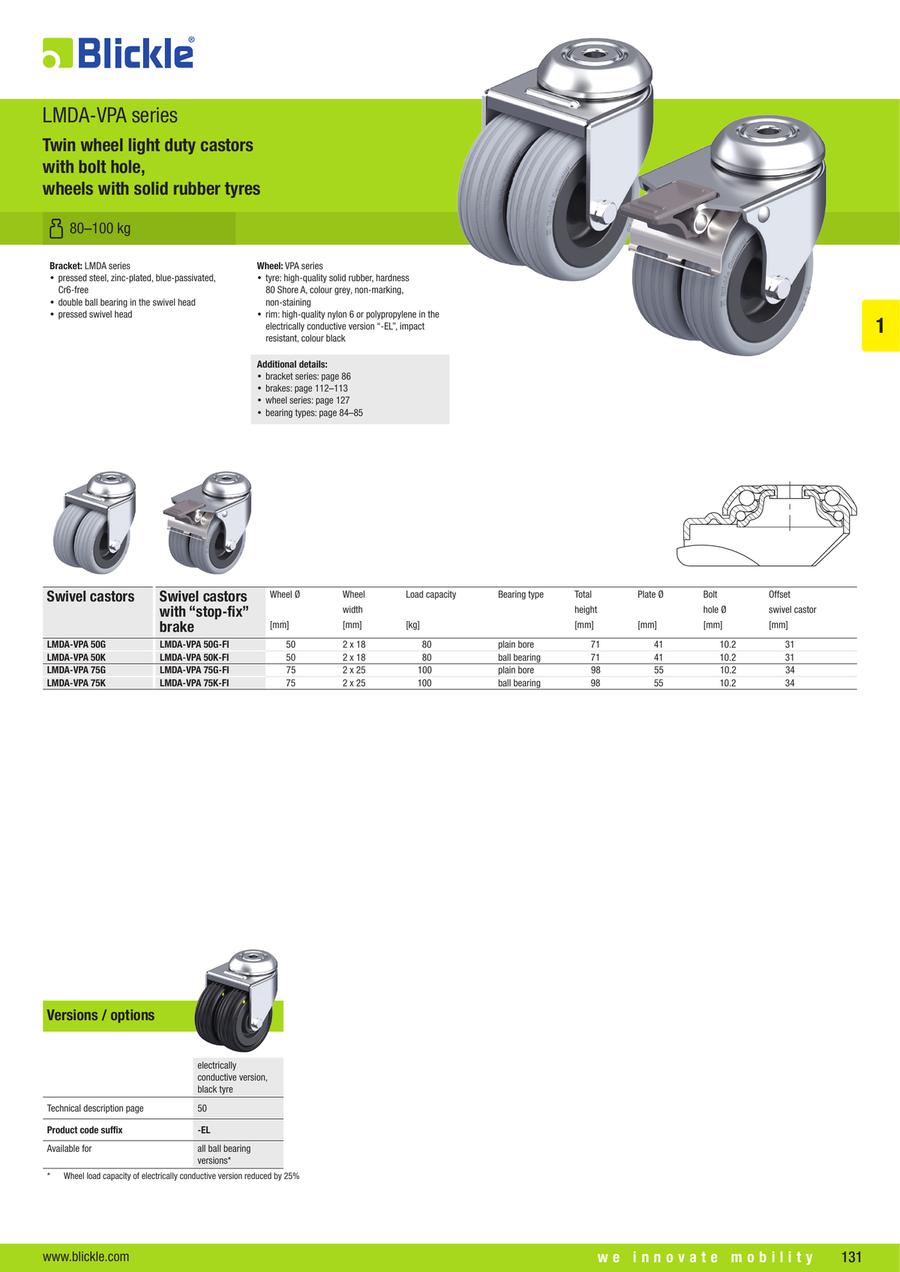

Light Duty Twin Wheel Swivel Castor, LMDA-VPA Series
Bracket: LMDA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- pressed swivel head
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| LMDA-VPA 50G |
| LMDA-VPA 50G-FI |
| LMDA-VPA 50K |
| LMDA-VPA 50K-EL |
| LMDA-VPA 50K-FI |
| LMDA-VPA 50K-FI-EL |
| LMDA-VPA 75G |
| LMDA-VPA 75G-FI |
| LMDA-VPA 75K |
| LMDA-VPA 75K-EL |
| LMDA-VPA 75K-FI |
| LMDA-VPA 75K-FI-EL |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Bearing type | Material (details) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.74 € | 1 | 5 Days | 170 | 35.01 to 80.00 | - | 41 | 125 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 71 | 248 | 50 | 18 | grey | yes | yes | 80 | ||
19.03 € | 1 | 5 Days | 200 | 35.01 to 80.00 | - | 41 | 150 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 71 | 299 | 50 | 18 | grey | yes | yes | 80 | ||
19.33 € | 1 | 5 Days | 200 | 35.01 to 80.00 | - | 41 | 150 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 71 | 306 | 50 | 18 | grey | yes | yes | 80 | ||
26.02 € | 1 | 7 Days | 200 | 35.01 to 80.00 | - | 41 | 150 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 71 | 294 | 50 | 18 | black | no | no | 60 | ||
23.63 € | 1 | 5 Days | 200 | 35.01 to 80.00 | - | 41 | 150 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 71 | 352 | 50 | 18 | grey | yes | yes | 80 | ||
30.32 € | 1 | 7 Days | 200 | 35.01 to 80.00 | - | 41 | 150 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 71 | 342 | 50 | 18 | black | no | no | 60 | ||
23.90 € | 1 | 5 Days | 200 | 80.01 to 140.00 | - | 55 | 150 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 504 | 75 | 25 | grey | yes | yes | 100 | ||
30.68 € | 1 | 5 Days | 200 | 80.01 to 140.00 | - | 55 | 150 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 579 | 75 | 25 | grey | yes | yes | 100 | ||
28.94 € | 1 | 5 Days | 200 | 80.01 to 140.00 | - | 55 | 150 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 593 | 75 | 25 | grey | yes | yes | 100 | ||
37.28 € | 1 | 7 Days | 205 | 80.01 to 140.00 | - | 55 | 160 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 98 | 574 | 75 | 25 | black | no | no | 90 | ||
35.73 € | 1 | 5 Days | 205 | 80.01 to 140.00 | Conductivity | 55 | 160 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 665 | 75 | 25 | grey | yes | yes | 100 | ||
44.09 € | 1 | 7 Days | 205 | 80.01 to 140.00 | Conductivity | 55 | 160 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 98 | 643 | 75 | 25 | black | no | no | 90 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Wheel Width B(mm) | 50 |
|---|---|---|---|---|---|
| Material | Rubber | Product type | twin wheel swivel castor | Suitable for autoclaves | no |
| Mounting type | bolt hole | Tread and tyre hardness | 80 Shore A | Wheel body color | black |
| Tread hydrolysis-resistant | no | Rustproof | no | Maximum temperature resistance(°C) | 60 |
| Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Bearing type
- Ball bearing
- plain bore
-
Material (details)
- Tread material: Rubber, Wheel body material: high-quality nylon 6
- Tread material: Rubber, Wheel body material: high-quality polypropylene
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 3 km/h(kg)
-
Type
- LMDA-VPA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
