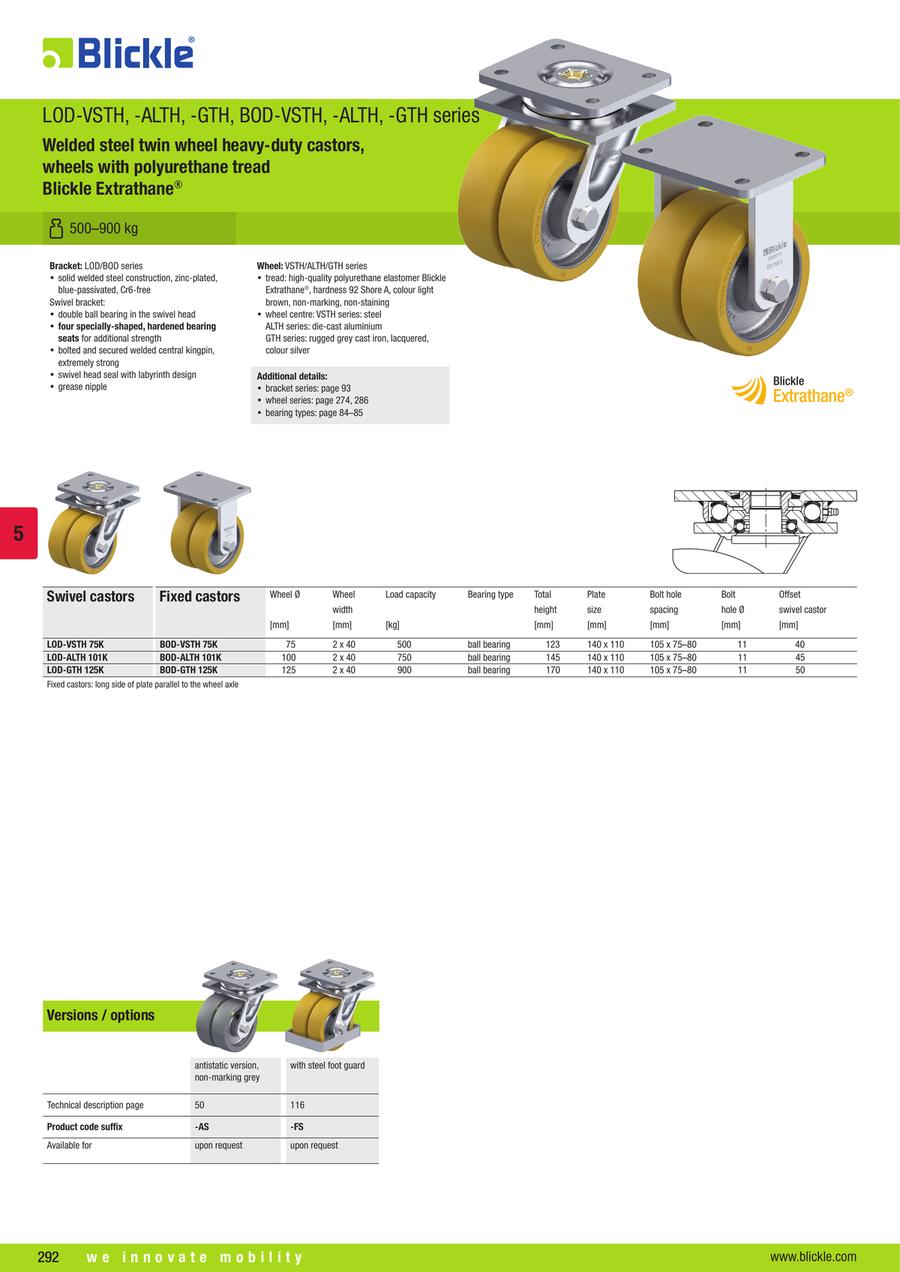

Heavy Duty Welded Steel Twin Wheel Swivel Castor, LOD-VSTH Series
Heavy Duty Welded Steel Twin Wheel Swivel Castor, Heavy Duty Wheel, with Blickle Extrathane® Polyurethane Tread, with Steel Wheel Centre
Bracket: LOD series
Bracket: LOD series
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seats for additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Wheel: VSTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: steel
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
LOD-VSTH 75K
- Product data
- CAD data not available
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Mounting Height H(mm) | 245 | Load Range(daN) | 485.01 to 750.00 |
|---|---|---|---|---|---|
| Wheel Material | Steel | Plate Length L(mm) | 140 | Plate Width W(mm) | 110 |
| Wheel Dia. D(mm) | 200 | Wheel Width B(mm) | 50 | Bearing type | Ball bearing |
| Material (details) | Tread material: Polyurethane, Wheel body material: steel | Material | Polyurethane | Product type | twin wheel swivel castor |
| Total height(mm) | 123 | Weight(g) | 4520 | Wheel diameter(mm) | 75 |
| Wheel width(mm) | 40 | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 92 Shore A | Tread color | light brown | Wheel body color | silver |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 70 | Minimum temperature resistance(°C) | -20 |
| Load capacity at 4 km/h(kg) | 500 |
This page is Heavy Duty Welded Steel Twin Wheel Swivel Castor, LOD-VSTH Series, part number LOD-VSTH 75K.
You can find the detail information about specifications and dimensions on part number LOD-VSTH 75K.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
