Configure
- Mounting Height H(mm)
- 225
- 255
- Wheel Characteristics
- Wheel Dia. D(mm)
- 125
- 150
- Wheel Width B(mm)
- 50
- 54
- Product type
- Weight(g)
- 258
- 284
- Type
- Est. shipping days
- All
- Within 5 working days
- Within 23 working days

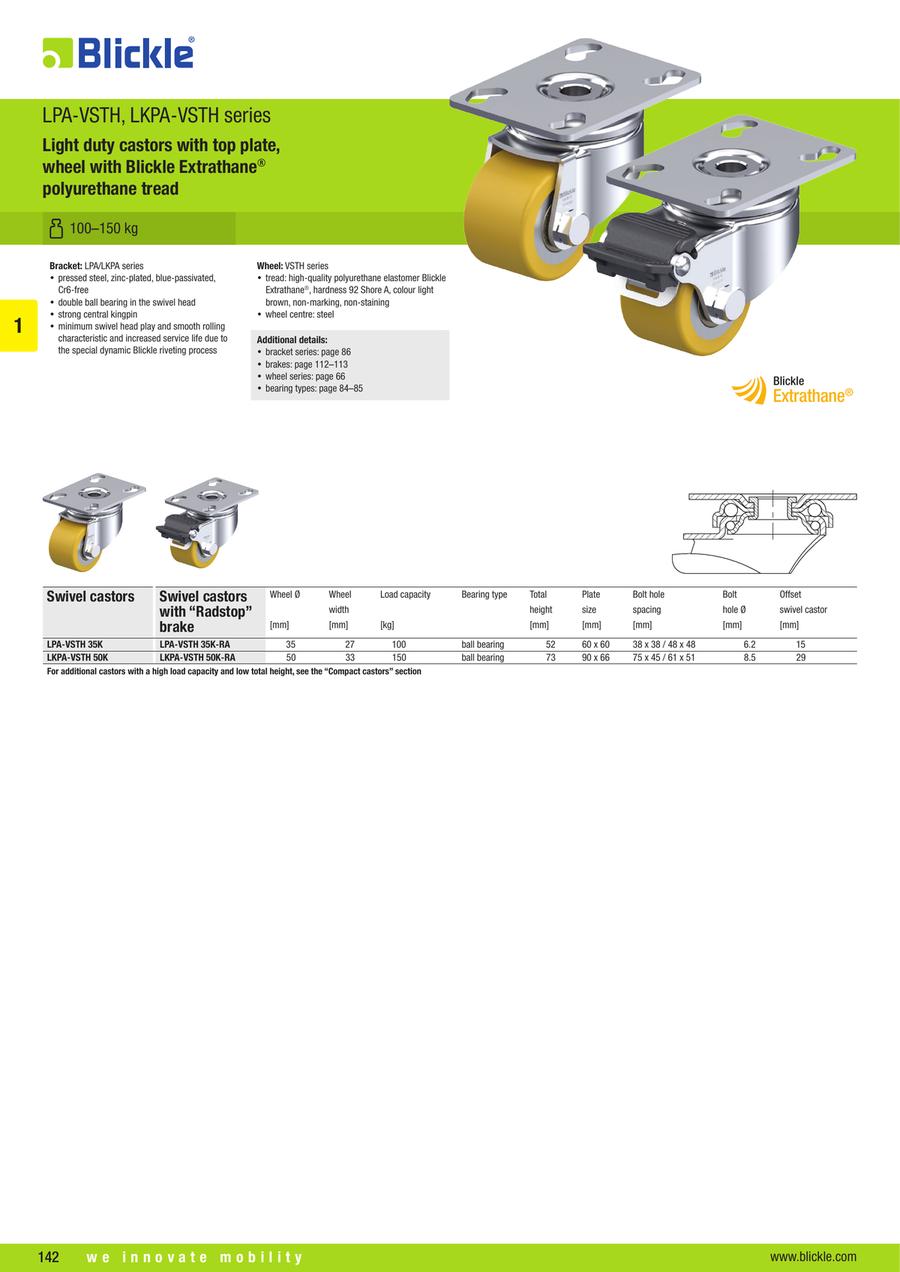

Light Duty Swivel Castor, LPA-VSTH Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
19.88 € ( 23.66 € ) | 5 working days |
24.70 € ( 29.39 € ) | 23 working days |
More Information
Basic information
Light Duty Swivel Castor, with Top Plate Fitting, Heavy Duty Wheel, with Blickle Extrathane® Polyurethane Tread, with Steel Wheel Centre, LPA-VSTH Series
Bracket: LPA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VSTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: steel
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
