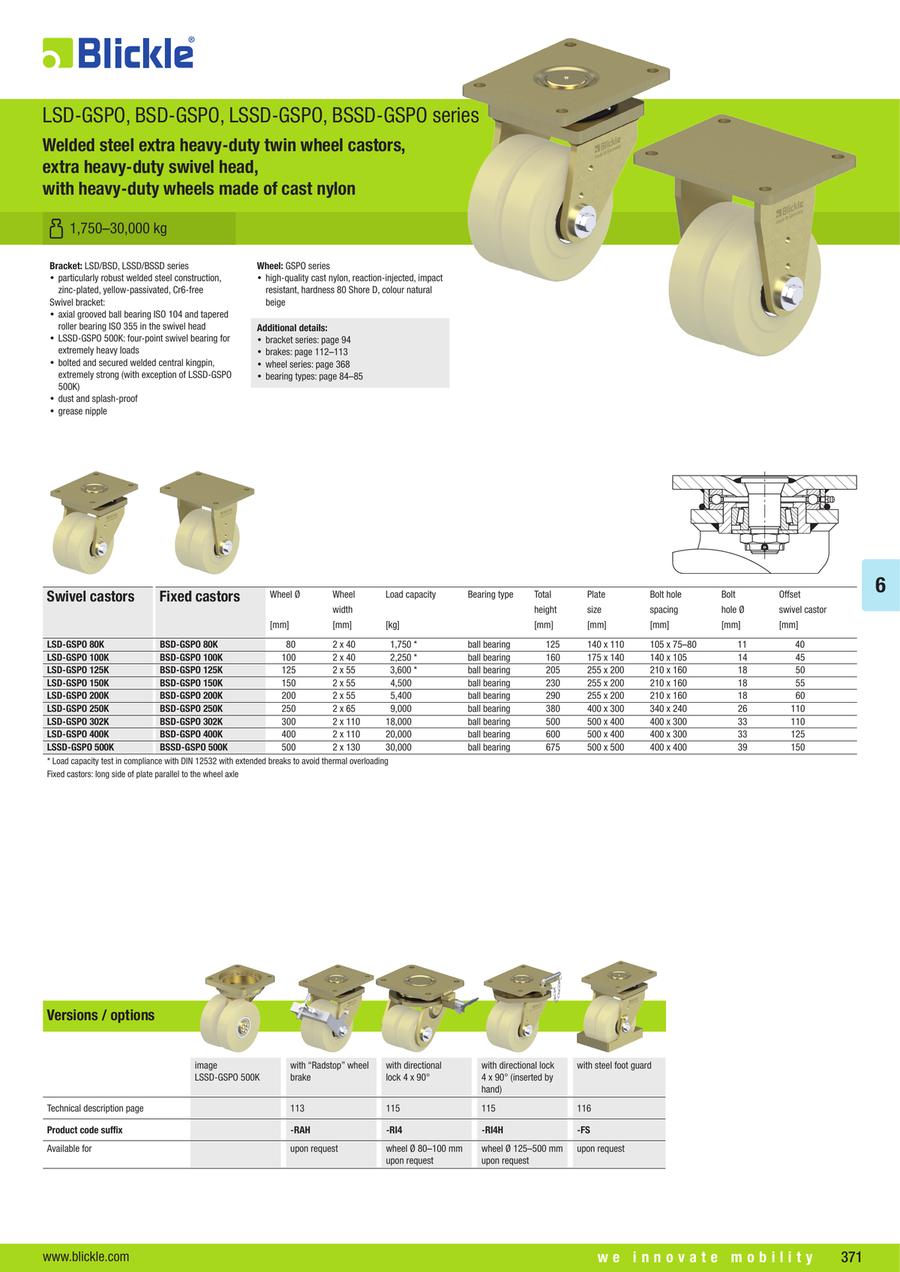

Extra Heavy Duty Welded Steel Twin Wheel Swivel Castor, LSSD-GSPO Series
Extra Heavy Duty Welded Steel Twin Wheel Swivel Castor, Extra Heavy Duty Swivel Head, Heavy Duty Wheel Made of Compressed Cast Nylon
Bracket: LSSD series
Bracket: LSSD series
- particularly robust welded steel construction
- four-point swivel bearing for extremely heavy loads
- dust and splash-proof
- grease nipple
Wheel: GSPO series
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
LSSD-GSPO 500K
- Product data
- CAD data not available
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Mounting Height H(mm) | 205 | Load Range(daN) | Up to 35.00 |
|---|---|---|---|---|---|
| Wheel Material | Engineering Plastics | Plate Length L(mm) | 500 | Plate Width W(mm) | 500 |
| Wheel Dia. D(mm) | 160 | Wheel Width B(mm) | 50 | Bearing type | Ball bearing |
| Material (details) | Tread material: Synthetic, Wheel body material: high-quality cast nylon | Material | Synthetic | Product type | twin wheel swivel castor |
| Total height(mm) | 675 | Weight(g) | 280500 | Wheel diameter(mm) | 500 |
| Wheel width(mm) | 130 | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 80 Shore D | Tread color | natural beige | Wheel body color | natural beige |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 80 | Minimum temperature resistance(°C) | -20 |
| Load capacity at 4 km/h(kg) | 30000 |
This page is Extra Heavy Duty Welded Steel Twin Wheel Swivel Castor, LSSD-GSPO Series, part number LSSD-GSPO 500K.
You can find the detail information about specifications and dimensions on part number LSSD-GSPO 500K.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
