Configure
- Mounting Height H(mm)
- 245
- Load Range(daN)
- Wheel Dia. D(mm)
- 200
- Wheel Width B(mm)
- 50
- Bearing type
- Product type
- Total height(mm)
- 170
- 197
- 202
- 245
- Weight(g)
- 1000
- 2380
- 2462
- 2620
- 2625
- 2652
- 2759
- 2788
- 2866
- 2924
- 2966
- 2973
- 3012
- 3062
- 3119
- 3120
- 3202
- 3238
- 3270
- 3305
- 3361
- 3400
- 3411
- 3479
- 3510
- 3620
- 3628
- 3697
- 3730
- 3900
- 3930
- 3976
- 4216
- 4271
- 4294
- 4614
- Wheel diameter(mm)
- 125
- 150
- 160
- 200
- Minimum temperature resistance(°C)
- -25
- -20
- Load capacity at 4 km/h(kg)
- 750
- 800
- 850
- 1000
- Type
- Est. shipping days
- All
- Within 7 working days
- Within 23 working days

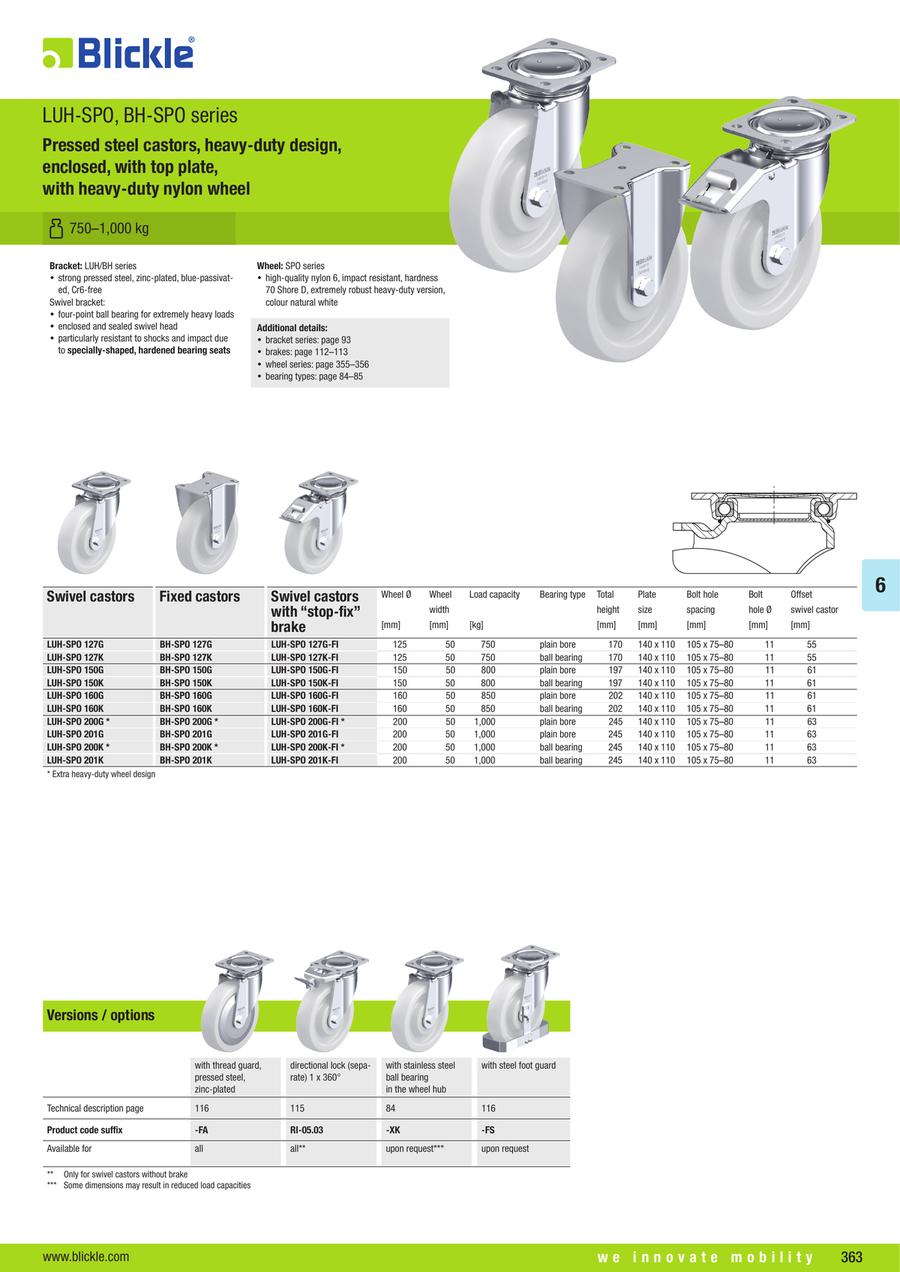

Pressed Steel Swivel Castor, LUH-SPO Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
171.00 € ( 203.49 € ) | 7 working days |
180.68 € ( 215.01 € ) | 23 working days |
234.77 € ( 279.38 € ) | 7 working days |
244.45 € ( 290.90 € ) | 7 working days |
186.64 € ( 222.10 € ) | 7 working days |
196.32 € ( 233.62 € ) | 23 working days |
250.22 € ( 297.76 € ) | 7 working days |
259.90 € ( 309.28 € ) | 7 working days |
177.75 € ( 211.52 € ) | 7 working days |
188.79 € ( 224.66 € ) | 7 working days |
242.48 € ( 288.55 € ) | 7 working days |
253.53 € ( 301.70 € ) | 7 working days |
194.62 € ( 231.60 € ) | 7 working days |
205.65 € ( 244.72 € ) | 23 working days |
259.30 € ( 308.57 € ) | 7 working days |
270.35 € ( 321.72 € ) | 23 working days |
192.99 € ( 229.66 € ) | 7 working days |
204.69 € ( 243.58 € ) | 7 working days |
257.71 € ( 306.67 € ) | 7 working days |
269.43 € ( 320.62 € ) | 23 working days |
222.87 € ( 265.22 € ) | 7 working days |
234.58 € ( 279.15 € ) | 23 working days |
287.56 € ( 342.20 € ) | 7 working days |
299.28 € ( 356.14 € ) | 23 working days |
253.25 € ( 301.37 € ) | 7 working days |
266.39 € ( 317.00 € ) | 23 working days |
324.62 € ( 386.30 € ) | 7 working days |
337.75 € ( 401.92 € ) | 7 working days |
269.55 € ( 320.76 € ) | 7 working days |
282.68 € ( 336.39 € ) | 23 working days |
340.89 € ( 405.66 € ) | 7 working days |
354.00 € ( 421.26 € ) | 23 working days |
196.05 € ( 233.30 € ) | 7 working days |
209.18 € ( 248.92 € ) | 23 working days |
267.42 € ( 318.23 € ) | 7 working days |
280.55 € ( 333.85 € ) | 7 working days |
218.78 € ( 260.35 € ) | 7 working days |
231.92 € ( 275.98 € ) | 7 working days |
290.10 € ( 345.22 € ) | 7 working days |
303.23 € ( 360.84 € ) | 7 working days |
More Information
Basic information
Pressed Steel Swivel Castor, Enclosed Design, with Top Plate Fitting, Nylon Heavy Duty Wheel
Bracket: LUH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- four-point ball bearing for extremely heavy loads
- enclosed and sealed swivel head
- particularly resistant to shocks and impact due to specially-shaped, hardened bearing seats
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
