Configure
- Mounting Height H(mm)
- 125
- 150
- 190
- 195
- 235
- Load Range(daN)
- Plate Length L(mm)
- 100
- 140
- Plate Width W(mm)
- 85
- 110
- Wheel Dia. D(mm)
- 100
- 125
- 150
- 160
- 200
- Wheel Width B(mm)
- 35
- 40
- 45
- 50
- Product type
- Total height(mm)
- 125
- 150
- 190
- 195
- 235
- Weight(g)
- 721
- 741
- 750
- 841
- 872
- 878
- 900
- 912
- 920
- 949
- 954
- 1010
- 1062
- 1066
- 1075
- 1106
- 1129
- 1756
- 1855
- 1900
- 1917
- 2020
- 2110
- 2150
- 2242
- 2250
- 2300
- 2357
- 2394
- 2419
- 2450
- 2489
- 2569
- 2584
- 2644
- 2750
- 2831
- 2908
- 3000
- 3050
- 3124
- Wheel diameter(mm)
- 100
- 125
- 150
- 160
- 200
- Wheel width(mm)
- 35
- 40
- 45
- 50
- Minimum temperature resistance(°C)
- -25
- -20
- Load capacity at 4 km/h(kg)
- 250
- 400
- Type
- Est. shipping days
- All
- Within 5 working days
- Within 7 working days
- Within 23 working days

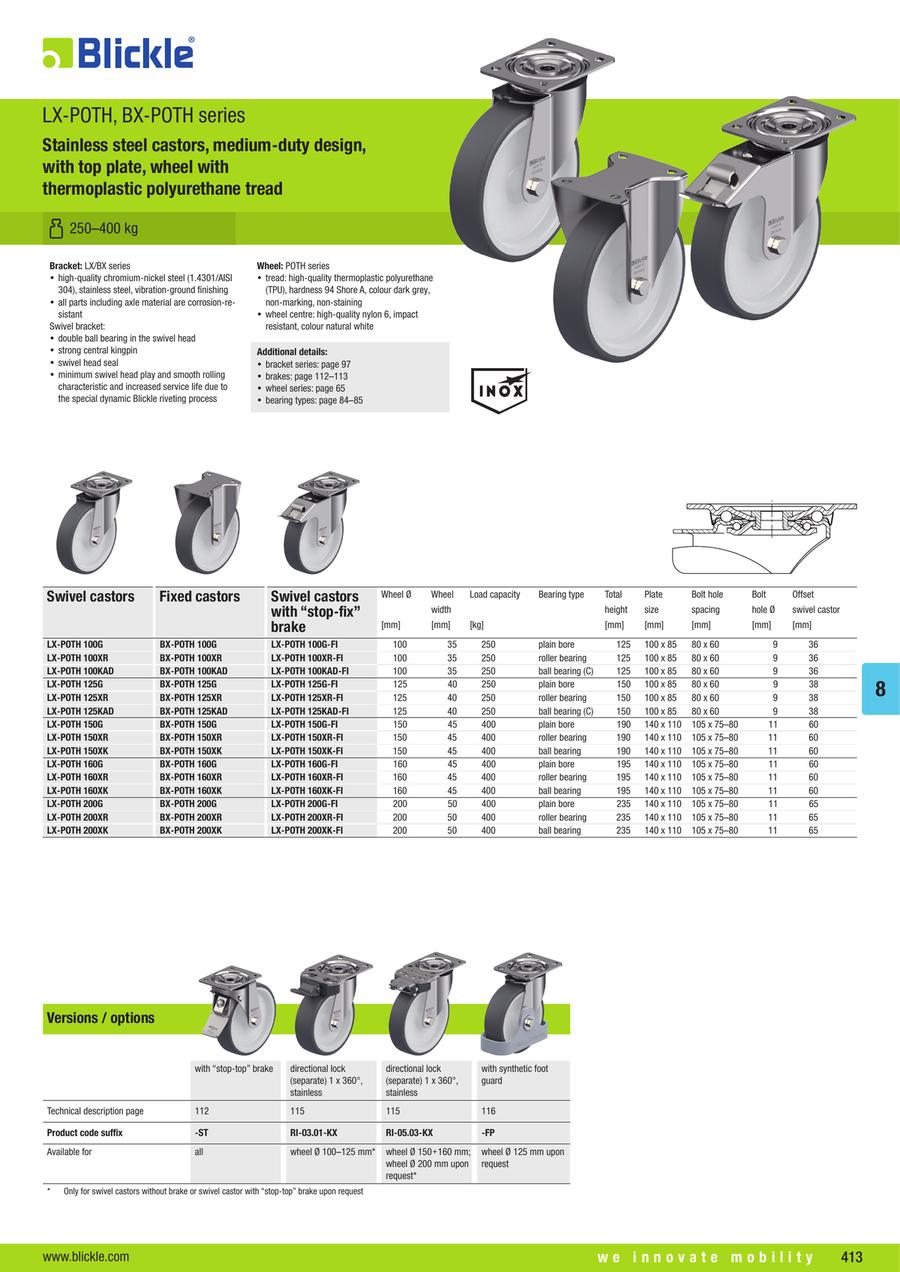

Stainless Steel Swivel Castor, LX-POTH Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
99.76 € ( 118.71 € ) | 7 working days |
126.90 € ( 151.01 € ) | 7 working days |
175.12 € ( 208.39 € ) | 7 working days |
105.18 € ( 125.16 € ) | 7 working days |
132.47 € ( 157.64 € ) | 5 working days |
180.53 € ( 214.83 € ) | 7 working days |
106.12 € ( 126.28 € ) | 7 working days |
133.23 € ( 158.54 € ) | 7 working days |
181.47 € ( 215.95 € ) | 7 working days |
109.78 € ( 130.64 € ) | 7 working days |
136.40 € ( 162.32 € ) | 7 working days |
185.13 € ( 220.30 € ) | 7 working days |
116.46 € ( 138.59 € ) | 7 working days |
143.23 € ( 170.44 € ) | 5 working days |
191.80 € ( 228.24 € ) | 7 working days |
116.40 € ( 138.52 € ) | 7 working days |
143.03 € ( 170.21 € ) | 7 working days |
191.75 € ( 228.18 € ) | 7 working days |
195.55 € ( 232.70 € ) | 7 working days |
265.14 € ( 315.52 € ) | 7 working days |
296.22 € ( 352.50 € ) | 7 working days |
255.28 € ( 303.78 € ) | 7 working days |
324.69 € ( 386.38 € ) | 7 working days |
355.94 € ( 423.57 € ) | 7 working days |
210.35 € ( 250.32 € ) | 7 working days |
279.93 € ( 333.12 € ) | 7 working days |
311.02 € ( 370.11 € ) | 7 working days |
195.98 € ( 233.22 € ) | 7 working days |
265.57 € ( 316.03 € ) | 7 working days |
296.64 € ( 353.00 € ) | 7 working days |
262.66 € ( 312.57 € ) | 7 working days |
332.07 € ( 395.16 € ) | 7 working days |
363.32 € ( 432.35 € ) | 7 working days |
210.07 € ( 249.98 € ) | 7 working days |
279.65 € ( 332.78 € ) | 7 working days |
310.73 € ( 369.77 € ) | 7 working days |
229.80 € ( 273.46 € ) | 7 working days |
305.10 € ( 363.07 € ) | 7 working days |
330.45 € ( 393.24 € ) | 23 working days |
282.40 € ( 336.06 € ) | 7 working days |
357.50 € ( 425.43 € ) | 7 working days |
383.05 € ( 455.83 € ) | 23 working days |
239.72 € ( 285.27 € ) | 7 working days |
315.02 € ( 374.87 € ) | 7 working days |
340.38 € ( 405.05 € ) | 7 working days |
More Information
Basic information
Stainless Steel Swivel Castor, with Top Plate Fitting, Medium Duty Design, Wheel, with Thermoplastic Polyurethane Tread, with Heavy Duty Nylon Wheel Centre
Bracket: LX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POTH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
