Configure

Wheel O.D.(mm)
- 100
- 125
- 140
- 150
- 151
- 160
- 180
- 200
- 250
Wheel Width(mm)
- 32
- 40
- 50
Hole Diameter(mm)
- 15
- 20
- 25
Hub Width(mm)
- 32
- 40
- 45
- 60
Max. Load / Allowable Load(daN)
- 200
- 250
- 300
- 350
- 400
- 450
- 500
- 550
- 650
Max. Load / Allowable Load(kg)
- 200
- 250
- 300
- 350
- 400
- 450
- 500
- 550
- 650
Product type
- Front wheel for industrial trucks
- wheel
Weight(g)
- 440
- 450
- 458
- 590
- 597
- 598
- 600
- 608
- 616
- 788
- 790
- 798
- 802
- 803
- 870
- 877
- 1034
- 1044
- 1090
- 1091
- 1109
- 1111
- 1115
- 1120
- 1136
- 1320
- 1323
- 1328
- 1345
- 1511
- 1534
- 1536
- 1537
- 1545
- 1550
- 1570
- 1582
- 1591
- 1592
- 2158
- 2189
- 2190
- 2193
- 2222
- 2230
- 2242
- 2280
Antistatic
- no
- yes
Tread and tyre hardness
- 65 Shore A
- 71 Shore A
Electrically conductive
- no
- yes
Tread color
- black
- grey
Non-staining
- no
- yes
Non-marking
- no
- yes
Max. temperature resistance(° C)
- 80
- 134
Clamping length(mm)
- 50
- 54
Load capacity at 4km/h(kg)
- 200
- 250
- 300
- 350
- 400
- 450
- 500
- 550
- 650
Type
- ALEV
Est. shipping days
- All
- Within 5 working days
- Within 7 working days
- Within 23 working days

Heavy Duty Wheel, ALEV Series

Catalog

Part number:

Still undefined. 49 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Wheel O.D.

(mm)

Wheel Width

(mm)

Hole Diameter

(mm)

Hub Width

(mm)

Max. Load / Allowable Load

(daN)

Max. Load / Allowable Load

(kg)

Product type

Weight

(g)

Antistatic

Tread and tyre hardness

Electrically conductive

Tread color

Non-staining

Non-marking

Max. temperature resistance

(° C)

Clamping length

(mm)

Load capacity at 4km/h

(kg)

Minimum order quantity

100	40	15	40	200	200	wheel	450	no	65 Shore A	no	black	no	no	80	-	200	1 pieces
100	40	15	40	200	200	wheel	440	no	71 Shore A	yes	black	no	no	80	-	200	1 pieces
100	40	15	40	200	200	wheel	450	no	65 Shore A	no	grey	yes	yes	80	-	200	1 pieces
100	40	15	40	200	200	wheel	458	yes	65 Shore A	no	grey	yes	yes	80	-	200	1 pieces
125	40	15	45	250	250	wheel	590	no	65 Shore A	no	black	no	no	80	-	250	1 pieces
125	40	15	45	250	250	wheel	598	no	71 Shore A	yes	black	no	no	80	-	250	1 pieces
125	40	15	45	250	250	wheel	597	no	65 Shore A	no	grey	yes	yes	80	-	250	1 pieces
125	40	15	45	250	250	wheel	616	yes	65 Shore A	no	grey	yes	yes	80	-	250	1 pieces
125	50	20	60	300	300	wheel	870	no	65 Shore A	no	black	no	no	80	-	300	1 pieces
125	50	20	60	300	300	wheel	877	no	65 Shore A	no	grey	yes	yes	80	-	300	1 pieces
140	40	20	60	300	300	wheel	798	no	65 Shore A	no	black	no	no	80	-	300	1 pieces
140	40	20	60	300	300	wheel	802	no	65 Shore A	no	grey	yes	yes	80	-	300	1 pieces
150	50	20	60	400	400	wheel	1034	no	65 Shore A	no	black	no	no	80	-	400	1 pieces
150	50	20	60	400	400	wheel	1044	no	65 Shore A	no	grey	yes	yes	80	-	400	1 pieces
150	32	15	32	200	200	wheel	600	no	71 Shore A	yes	black	no	no	134	-	200	1 pieces
151	32	-	-	200	200	wheel	608	no	65 Shore A	no	grey	yes	yes	80	-	200	1 pieces
160	50	20	60	400	400	wheel	1111	no	65 Shore A	no	black	no	no	80	-	400	1 pieces
160	50	20	60	400	400	wheel	1090	no	71 Shore A	yes	black	no	no	80	-	400	1 pieces
160	50	20	60	400	400	wheel	1091	no	65 Shore A	no	grey	yes	yes	80	-	400	1 pieces
160	50	20	60	350	350	wheel	1120	yes	65 Shore A	no	grey	yes	yes	80	-	350	1 pieces
160	50	25	60	400	400	wheel	1115	no	65 Shore A	no	black	no	no	80	-	400	1 pieces
160	50	25	60	400	400	wheel	1090	no	71 Shore A	yes	black	no	no	80	-	400	1 pieces
160	50	25	60	400	400	wheel	1109	no	65 Shore A	no	grey	yes	yes	80	-	400	1 pieces
160	50	25	60	350	350	wheel	1136	yes	65 Shore A	no	grey	yes	yes	80	-	350	1 pieces
160	40	15	60	300	300	wheel	790	no	65 Shore A	no	black	no	no	80	-	300	1 pieces
160	40	15	60	300	300	wheel	788	no	71 Shore A	yes	black	no	no	80	-	300	1 pieces
160	40	15	60	300	300	wheel	803	no	65 Shore A	no	grey	yes	yes	80	-	300	1 pieces
180	50	20	60	450	450	wheel	1320	no	65 Shore A	no	black	no	no	80	-	450	1 pieces
180	50	20	60	450	450	wheel	1328	no	65 Shore A	no	grey	yes	yes	80	-	450	1 pieces
180	50	25	60	450	450	wheel	1323	no	65 Shore A	no	black	no	no	80	-	450	1 pieces
180	50	25	60	450	450	wheel	1345	no	65 Shore A	no	grey	yes	yes	80	-	450	1 pieces
200	50	20	60	500	500	wheel	1537	no	65 Shore A	no	black	no	no	80	-	500	1 pieces
200	50	20	60	500	500	wheel	1570	no	71 Shore A	yes	black	no	no	80	-	500	1 pieces
200	50	20	60	500	500	wheel	1550	no	65 Shore A	no	grey	yes	yes	80	-	500	1 pieces
200	50	20	60	450	450	wheel	1592	yes	65 Shore A	no	grey	yes	yes	80	-	450	1 pieces
200	50	25	60	500	500	wheel	1545	no	65 Shore A	no	black	no	no	80	-	500	1 pieces
200	50	25	60	500	500	wheel	1536	no	71 Shore A	yes	black	no	no	80	-	500	1 pieces
200	50	25	60	500	500	wheel	1582	no	65 Shore A	no	grey	yes	yes	80	-	500	1 pieces
200	50	25	60	450	450	wheel	1591	yes	65 Shore A	no	grey	yes	yes	80	-	450	1 pieces
200	50	20	60	500	500	Front wheel for industrial trucks	1511	no	65 Shore A	no	black	no	no	80	54	500	1 pieces
200	50	25	60	500	500	Front wheel for industrial trucks	1534	no	65 Shore A	no	black	no	no	80	50	500	1 pieces
250	50	20	60	650	650	wheel	2190	no	65 Shore A	no	black	no	no	80	-	650	1 pieces
250	50	20	60	650	650	wheel	2189	no	71 Shore A	yes	black	no	no	80	-	650	1 pieces
250	50	20	60	650	650	wheel	2280	no	65 Shore A	no	grey	yes	yes	80	-	650	1 pieces
250	50	20	60	550	550	wheel	2230	yes	65 Shore A	no	grey	yes	yes	80	-	550	1 pieces
250	50	25	60	650	650	wheel	2193	no	65 Shore A	no	black	no	no	80	-	650	1 pieces
250	50	25	60	650	650	wheel	2158	no	71 Shore A	yes	black	no	no	80	-	650	1 pieces
250	50	25	60	650	650	wheel	2222	no	65 Shore A	no	grey	yes	yes	80	-	650	1 pieces
250	50	25	60	550	550	wheel	2242	yes	65 Shore A	no	grey	yes	yes	80	-	550	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

35.75 € ( 42.54 € )	5 working days
43.60 € ( 51.88 € )	5 working days
37.23 € ( 44.30 € )	5 working days
44.46 € ( 52.91 € )	5 working days
45.20 € ( 53.79 € )	5 working days
53.63 € ( 63.82 € )	5 working days
46.68 € ( 55.55 € )	5 working days
57.70 € ( 68.66 € )	5 working days
62.70 € ( 74.61 € )	5 working days
64.40 € ( 76.64 € )	5 working days
53.68 € ( 63.88 € )	5 working days
63.64 € ( 75.73 € )	5 working days
64.43 € ( 76.67 € )	5 working days
70.98 € ( 84.47 € )	5 working days
92.85 € ( 110.49 € )	5 working days
90.50 € ( 107.69 € )	23 working days
69.05 € ( 82.17 € )	5 working days
79.59 € ( 94.71 € )	5 working days
75.60 € ( 89.96 € )	5 working days
87.15 € ( 103.71 € )	5 working days
83.00 € ( 98.77 € )	5 working days
93.53 € ( 111.30 € )	23 working days
89.56 € ( 106.58 € )	7 working days
101.10 € ( 120.31 € )	5 working days
57.55 € ( 68.48 € )	5 working days
67.61 € ( 80.46 € )	5 working days
63.69 € ( 75.79 € )	23 working days
81.17 € ( 96.59 € )	5 working days
88.37 € ( 105.16 € )	5 working days
95.13 € ( 113.20 € )	5 working days
102.32 € ( 121.76 € )	7 working days
89.02 € ( 105.93 € )	5 working days
108.45 € ( 129.06 € )	5 working days
96.20 € ( 114.48 € )	5 working days
116.42 € ( 138.54 € )	5 working days
102.98 € ( 122.55 € )	5 working days
122.42 € ( 145.68 € )	23 working days
110.16 € ( 131.09 € )	5 working days
130.38 € ( 155.15 € )	5 working days
93.53 € ( 111.30 € )	5 working days
98.47 € ( 117.18 € )	5 working days
112.51 € ( 133.89 € )	5 working days
133.97 € ( 159.42 € )	5 working days
129.01 € ( 153.52 € )	5 working days
148.39 € ( 176.58 € )	5 working days
123.27 € ( 146.69 € )	5 working days
144.73 € ( 172.23 € )	5 working days
139.79 € ( 166.35 € )	5 working days
159.13 € ( 189.36 € )	5 working days

More Information

Basic information

Basic information

Heavy Duty Wheel, with 'Blickle Easyroll' Elastic Solid Rubber Tyres, with Aluminium Wheel Centre

Tyre:

high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A
very good operational comfort
very good floor preservation, low-noise operation
low rolling resistance
colour black
vulcanised onto the wheel centre

Wheel centre:

die-cast aluminium

Other features:

high chemical resistance to many aggressive substances, except oils
operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C

Catalog

Products homepage

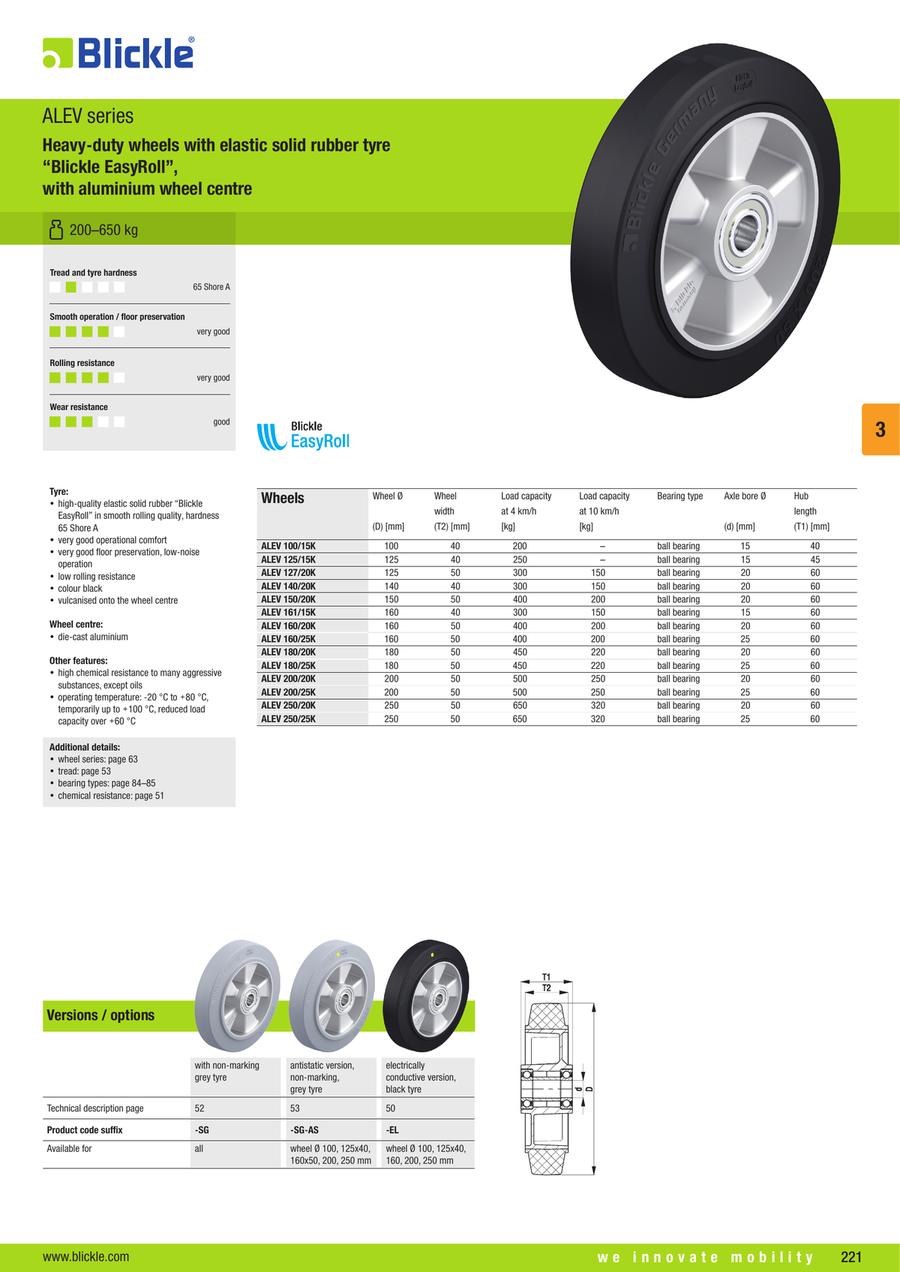

Catalog (2-page spread)
