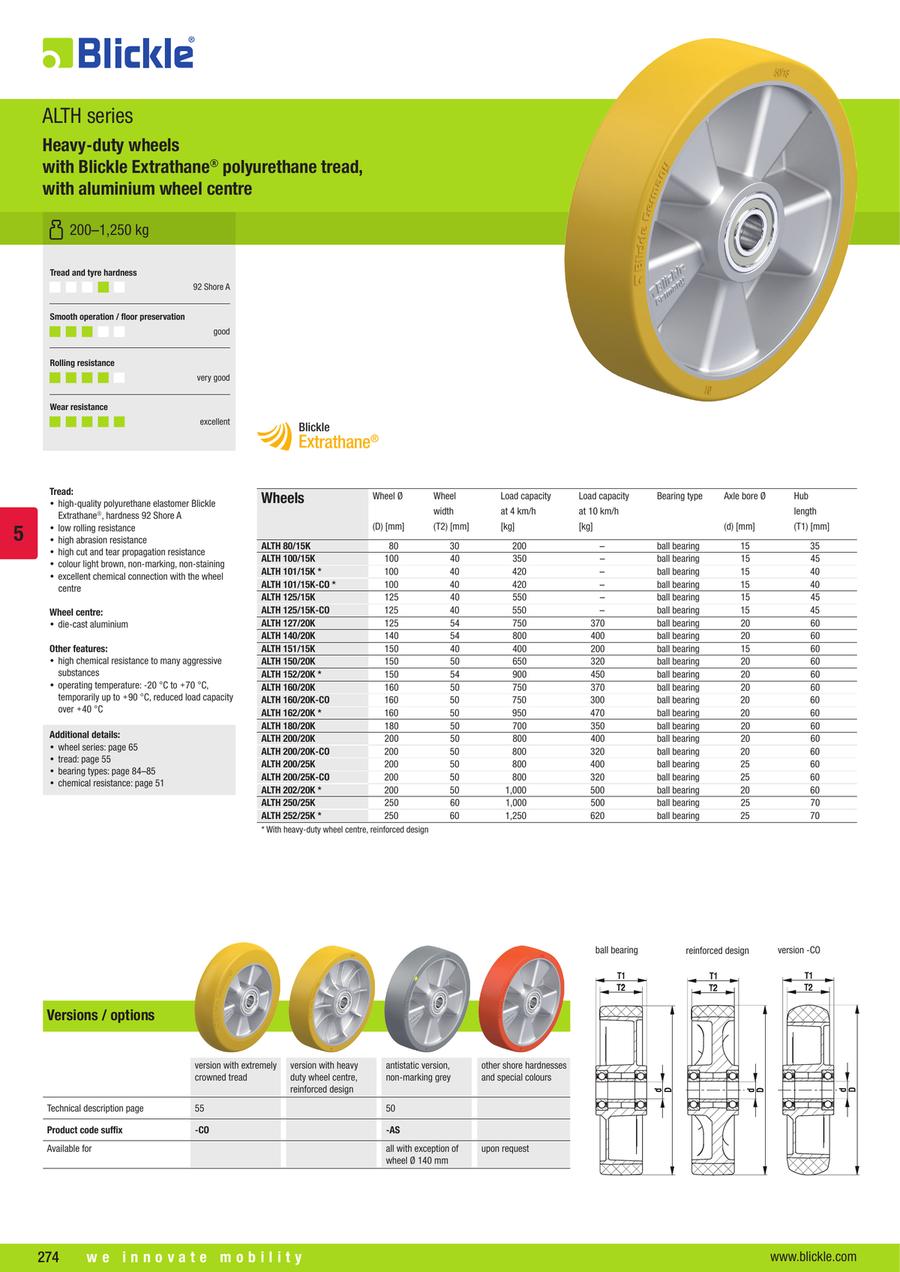

Heavy Duty Wheel, ALTH Series
Tread:
- high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A
- low rolling resistance
- high abrasion resistance
- high cut and tear propagation resistance
- colour light brown, non-marking, non-staining
- excellent chemical connection with the wheel centre
- die-cast aluminium
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Max. Load / Allowable Load (daN) | Max. Load / Allowable Load (kg) | Product type | Weight (g) | Antistatic | Tread color | Clamping length (mm) | Load capacity at 4km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
48.38 € | 1 | 5 Days | 80 | 30 | 15 | 35 | 200 | 200 | wheel | 258 | no | light brown | - | 200 | ||
67.75 € | 1 | 5 Days | 80 | 30 | 15 | 35 | 200 | 200 | wheel | 260 | yes | grey | - | 200 | ||
54.75 € | 1 | 5 Days | 100 | 40 | 15 | 45 | 350 | 350 | wheel | 450 | no | light brown | - | 350 | ||
74.89 € | 1 | 5 Days | 100 | 40 | 15 | 45 | 350 | 350 | wheel | 450 | yes | grey | - | 350 | ||
59.13 € | 1 | 5 Days | 100 | 40 | 15 | 40 | 420 | 420 | wheel | 470 | no | light brown | 40 | 420 | ||
79.76 € | 1 | 5 Days | 100 | 40 | 15 | 40 | 420 | 420 | wheel | 469 | yes | grey | - | 420 | ||
93.15 € | 1 | 23 Days | 100 | 40 | 15 | 40 | 420 | 420 | wheel | 437 | yes | grey | - | 420 | ||
72.50 € | 1 | 5 Days | 100 | 40 | 15 | 40 | 420 | 420 | wheel | 430 | no | light brown | - | 420 | ||
63.10 € | 1 | 5 Days | 125 | 40 | 15 | 45 | 550 | 550 | wheel | 581 | no | light brown | - | 550 | ||
84.17 € | 1 | 5 Days | 125 | 40 | 15 | 45 | 550 | 550 | wheel | 561 | yes | grey | - | 550 | ||
99.10 € | 1 | 23 Days | 125 | 40 | 15 | 45 | 550 | 550 | wheel | 603 | yes | grey | - | 550 | ||
78.05 € | 1 | 5 Days | 125 | 40 | 15 | 45 | 550 | 550 | wheel | 604 | no | light brown | - | 550 | ||
86.30 € | 1 | 5 Days | 125 | 54 | 20 | 60 | 750 | 750 | wheel | 1043 | no | light brown | - | 750 | ||
107.78 € | 1 | 5 Days | 125 | 54 | 20 | 60 | 750 | 750 | wheel | 1050 | yes | grey | - | 750 | ||
101.77 € | 1 | 5 Days | 140 | 54 | 20 | 60 | 800 | 800 | wheel | 1248 | no | light brown | 60 | 800 | ||
89.75 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 650 | 650 | wheel | 1046 | no | light brown | - | 650 | ||
111.57 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 650 | 650 | wheel | 1038 | yes | grey | - | 650 | ||
79.62 € | 1 | 5 Days | 150 | 40 | 15 | 60 | 400 | 400 | wheel | 754 | no | light brown | - | 400 | ||
99.50 € | 1 | 5 Days | 150 | 40 | 15 | 60 | 400 | 400 | wheel | 743 | yes | grey | - | 400 | ||
124.85 € | 1 | 23 Days | 150 | 54 | 20 | 60 | 900 | 900 | wheel | 1312 | no | light brown | - | 900 | ||
146.67 € | 1 | 5 Days | 150 | 54 | 20 | 60 | 900 | 900 | wheel | 1300 | yes | grey | - | 900 | ||
92.78 € | 1 | 5 Days | 160 | 50 | 20 | 60 | 750 | 750 | wheel | 1117 | no | light brown | - | 750 | ||
116.20 € | 1 | 5 Days | 160 | 50 | 20 | 60 | 750 | 750 | wheel | 1122 | yes | grey | - | 750 | ||
124.45 € | 1 | 23 Days | 160 | 50 | 20 | 60 | 750 | 750 | wheel | 1063 | yes | grey | - | 750 | ||
101.04 € | 1 | 5 Days | 160 | 50 | 20 | 60 | 750 | 750 | wheel | 1100 | no | light brown | - | 750 | ||
102.05 € | 1 | 23 Days | 160 | 50 | 20 | 60 | 950 | 950 | wheel | 1168 | no | light brown | - | 950 | ||
125.49 € | 1 | 23 Days | 160 | 50 | 20 | 60 | 950 | 950 | wheel | 1100 | yes | grey | - | 950 | ||
104.36 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 700 | 700 | wheel | 1287 | no | light brown | - | 700 | ||
128.21 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 700 | 700 | wheel | 1274 | yes | grey | - | 700 | ||
106.47 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 700 | 700 | Front wheel for industrial trucks | 1264 | no | light brown | 54 | 700 | ||
111.27 € | 1 | 5 Days | 180 | 50 | 25 | 60 | 700 | 700 | Front wheel for industrial trucks | 1235 | no | light brown | 50 | 700 | ||
113.15 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 800 | 800 | wheel | 1470 | no | light brown | - | 800 | ||
137.40 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 800 | 800 | wheel | 1457 | yes | grey | - | 800 | ||
142.53 € | 1 | 23 Days | 200 | 50 | 20 | 60 | 800 | 800 | wheel | 1528 | yes | grey | - | 800 | ||
118.27 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 800 | 800 | wheel | 1520 | no | light brown | - | 800 | ||
126.73 € | 1 | 5 Days | 200 | 50 | 25 | 60 | 800 | 800 | wheel | 1481 | no | light brown | - | 800 | ||
150.98 € | 1 | 7 Days | 200 | 50 | 25 | 60 | 800 | 800 | wheel | 1446 | yes | grey | - | 800 | ||
156.10 € | 1 | 23 Days | 200 | 50 | 25 | 60 | 800 | 800 | wheel | 1400 | yes | grey | - | 800 | ||
131.85 € | 1 | 23 Days | 200 | 50 | 25 | 60 | 800 | 800 | wheel | 1544 | no | light brown | - | 800 | ||
137.29 € | 1 | 5 Days | 200 | 50 | 20 | 50 | 800 | 800 | Front wheel for industrial trucks | 1412 | no | light brown | 40 | 800 | ||
117.63 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 800 | 800 | Front wheel for industrial trucks | 1467 | no | light brown | 54 | 800 | ||
142.08 € | 1 | 5 Days | 200 | 50 | 25 | 50 | 800 | 800 | Front wheel for industrial trucks | 1384 | no | light brown | 36 | 800 | ||
122.45 € | 1 | 5 Days | 200 | 50 | 25 | 60 | 800 | 800 | Front wheel for industrial trucks | 1434 | no | light brown | 50 | 800 | ||
124.46 € | 1 | 23 Days | 200 | 50 | 20 | 60 | 1 | 1 | wheel | 1574 | no | light brown | - | 1000 | ||
148.73 € | 1 | 23 Days | 200 | 50 | 20 | 60 | 1 | 1 | wheel | 1600 | yes | grey | - | 1000 | ||
170.50 € | 1 | 5 Days | 250 | 60 | 25 | 70 | 1 | 1 | wheel | 2508 | no | light brown | - | 1000 | ||
223.08 € | 1 | 5 Days | 250 | 60 | 25 | 70 | 1 | 1 | wheel | 2500 | yes | grey | - | 1000 | ||
187.55 € | 1 | 5 Days | 250 | 60 | 25 | 70 | 1.25 | 1.25 | wheel | 2546 | no | light brown | - | 1250 | ||
240.14 € | 1 | 23 Days | 250 | 60 | 25 | 70 | 1.25 | 1.25 | wheel | 2600 | yes | grey | - | 1250 |
Loading...
Basic information
| Bearing | Provided | Wheel Material | Aluminum | Bearing type | ball bearing |
|---|---|---|---|---|---|
| Material (details) | die-cast aluminium | Suitable for autoclaves | no | Tread and tyre hardness | 92 Shore A |
| Electrically conductive | no | Wheel body colour | silver grey | Heat-resistant | no |
| Tread hydrolysis-resistant | no | Non-staining | yes | Tread material | Polyurethane |
| Rustproof | no | Non-marking | yes | Max. temperature resistance(° C) | 70 |
| Min. temperature resistance(° C) | -20 |
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Max. Load / Allowable Load(daN)
-
Max. Load / Allowable Load(kg)
-
Product type
- Front wheel for industrial trucks
- wheel
-
Weight(g)
-
Antistatic
- no
- yes
-
Tread color
- grey
- light brown
-
Clamping length(mm)
-
Load capacity at 4km/h(kg)
-
Type
- ALTH
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
