Configure

Wheel Material
- Cast
Wheel O.D.(mm)
- 100
- 110
- 125
- 140
- 150
- 160
- 175
- 180
- 200
- 250
- 300
- 360
- 400
- 500
- 600
- 750
- 1000
Wheel Width(mm)
- 40
- 45
- 50
- 54
- 55
- 59
- 60
- 65
- 75
- 80
- 100
- 120
- 125
- 130
- 150
- 200
- 300
Hole Diameter(mm)
- 15
- 20
- 25
- 30
- 35
- 40
- 50
- 60
- 80
- 120
- 160
Hub Width(mm)
- 40
- 45
- 50
- 57
- 60
- 68
- 70
- 75
- 80
- 90
- 100
- 120
- 125
- 140
- 150
- 200
- 330
Bearing
- Provided
- Other
Max. Load / Allowable Load(daN)
- 1
- 1.1
- 1.25
- 1.3
- 1.4
- 1.5
- 1.6
- 1.75
- 1.8
- 2.2
- 2.4
- 2.5
- 3
- 3.15
- 3.6
- 3.8
- 5
- 7.5
- 9
- 10
- 12
- 15
- 30
- 450
- 550
- 600
- 650
- 700
- 800
- 850
- 875
- 900
Max. Load / Allowable Load(kg)
- 1
- 1.1
- 1.25
- 1.3
- 1.4
- 1.5
- 1.6
- 1.75
- 1.8
- 2.2
- 2.4
- 2.5
- 3
- 3.15
- 3.6
- 3.8
- 5
- 7.5
- 9
- 10
- 12
- 15
- 30
- 450
- 550
- 600
- 650
- 700
- 800
- 850
- 875
- 900
Wheel Material
- Other Materials
Bearing type
- ball bearing
- spherical roller bearing
Product type
- Support wheel for industrial trucks
- wheel
Weight(g)
- 989
- 1413
- 1486
- 1580
- 1710
- 1919
- 2077
- 2116
- 2260
- 2575
- 2733
- 2800
- 2879
- 2906
- 2939
- 2972
- 3000
- 3019
- 3033
- 3050
- 3579
- 3607
- 3862
- 3872
- 4679
- 5550
- 6055
- 6580
- 6636
- 6910
- 7060
- 7106
- 7290
- 7334
- 7425
- 8436
- 8820
- 9650
- 10484
- 10671
- 13300
- 13301
- 18850
- 19130
- 19500
- 19602
- 22175
- 24000
- 25450
- 28600
- 29275
- 37500
- 47000
- 75000
- 99000
- 105000
- 141000
- 229500
- 662000
Clamping length(mm)
- 46
- 48
- 50
- 54
- 58
- 59
- 60
- 68
- 75
Load capacity at 4km/h(kg)
- 450
- 550
- 600
- 650
- 700
- 800
- 850
- 875
- 900
- 1000
- 1100
- 1250
- 1300
- 1400
- 1500
- 1600
- 1750
- 1800
- 2200
- 2400
- 2500
- 3000
- 3150
- 3600
- 3800
- 5000
- 7500
- 9000
- 10000
- 12000
- 15000
- 30000
Type
- GTH
Est. shipping days
- All
- Within 5 working days
- Within 23 working days

Heavy Duty Wheel, GTH Series

Catalog

Part number:

Still undefined. 59 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Wheel Material

Wheel O.D.

(mm)

Wheel Width

(mm)

Hole Diameter

(mm)

Hub Width

(mm)

Bearing

Max. Load / Allowable Load

(daN)

Max. Load / Allowable Load

(kg)

Wheel Material

Bearing type

Product type

Weight

(g)

Clamping length

(mm)

Load capacity at 4km/h

(kg)

Minimum order quantity

Cast	1000	300	160	330	Provided	30	30	-	spherical roller bearing	wheel	662000	-	30000	1 pieces
Cast	100	40	15	40	Provided	450	450	-	ball bearing	wheel	989	-	450	1 pieces
Cast	100	50	20	50	Provided	600	600	-	ball bearing	wheel	1486	50	600	1 pieces
Cast	100	50	20	60	Provided	600	600	-	ball bearing	Support wheel for industrial trucks	1580	-	600	1 pieces
Cast	110	50	20	50	Provided	650	650	-	ball bearing	Support wheel for industrial trucks	1710	46	650	1 pieces
Cast	125	40	15	45	Provided	550	550	-	ball bearing	wheel	1413	-	550	1 pieces
Cast	125	40	20	50	Provided	550	550	-	ball bearing	Support wheel for industrial trucks	1919	48	550	1 pieces
Cast	125	50	20	50	Provided	700	700	-	ball bearing	wheel	2116	50	700	1 pieces
Cast	125	50	20	60	Provided	700	700	-	ball bearing	Support wheel for industrial trucks	2260	-	700	1 pieces
Cast	125	50	25	50	Provided	700	700	-	ball bearing	wheel	2077	50	700	1 pieces
Cast	140	54	20	60	Provided	900	900	-	ball bearing	wheel	2575	60	900	1 pieces
Cast	140	59	20	68	Provided	800	800	-	ball bearing	Support wheel for industrial trucks	3033	68	800	1 pieces
Cast	140	59	25	68	Provided	800	800	-	ball bearing	Support wheel for industrial trucks	2800	54	800	1 pieces
Cast	150	50	20	50	Provided	800	800	-	ball bearing	wheel	2733	50	800	1 pieces
Cast	150	50	20	60	Provided	800	800	-	ball bearing	wheel	2879	58	800	1 pieces
Cast	150	50	20	60	Provided	800	800	-	ball bearing	wheel	2906	-	800	1 pieces
Cast	150	54	20	60	Provided	850	850	-	ball bearing	Support wheel for industrial trucks	3019	60	850	1 pieces
Cast	150	55	25	57	Provided	850	850	-	ball bearing	Support wheel for industrial trucks	3050	59	850	1 pieces
Cast	160	50	20	60	Provided	800	800	-	ball bearing	wheel	2972	-	800	1 pieces
Cast	160	50	25	60	Provided	800	800	-	ball bearing	wheel	3000	-	800	1 pieces
Cast	175	50	20	60	Provided	875	875	-	ball bearing	wheel	3579	-	875	1 pieces
Cast	175	50	25	60	Provided	875	875	-	ball bearing	wheel	3607	-	875	1 pieces
Cast	175	80	25	80	Provided	1.3	1.3	-	ball bearing	wheel	6055	-	1300	1 pieces
Cast	180	40	25	40	Provided	800	800	-	ball bearing	wheel	2939	-	800	1 pieces
Cast	180	65	25	75	Provided	1.1	1.1	-	ball bearing	wheel	5550	75	1100	1 pieces
Cast	200	50	20	60	Provided	1	1	-	ball bearing	wheel	3872	-	1000	1 pieces
Cast	200	50	25	60	Provided	1	1	-	ball bearing	wheel	3862	-	1000	1 pieces
Cast	200	60	-	-	Provided	1.4	1.4	-	ball bearing	wheel	4679	-	1400	1 pieces
Cast	200	80	25	90	Provided	1.6	1.6	-	ball bearing	wheel	7106	-	1600	1 pieces
Cast	200	80	30	90	Provided	1.6	1.6	-	ball bearing	wheel	6910	-	1600	1 pieces
Cast	200	80	35	90	Provided	1.6	1.6	-	ball bearing	wheel	7060	-	1600	1 pieces
Cast	250	60	25	70	Provided	1.5	1.5	-	ball bearing	wheel	7425	-	1500	1 pieces
Cast	250	60	30	70	Provided	1.5	1.5	-	ball bearing	wheel	7290	-	1500	1 pieces
Cast	250	60	30	70	Provided	1.75	1.75	-	ball bearing	wheel	8436	-	1750	1 pieces
Cast	250	60	35	70	Provided	1.5	1.5	-	ball bearing	wheel	7334	-	1500	1 pieces
Cast	250	50	25	60	Provided	1.25	1.25	-	ball bearing	wheel	6636	-	1250	1 pieces
Cast	250	50	30	60	Provided	1.25	1.25	-	ball bearing	wheel	6580	-	1250	1 pieces
Cast	250	80	25	90	Provided	1.8	1.8	-	ball bearing	wheel	9650	-	1800	1 pieces
Cast	250	80	30	90	Provided	2.2	2.2	-	ball bearing	wheel	10671	-	2200	1 pieces
Cast	250	130	40	140	Provided	3.15	3.15	-	ball bearing	wheel	18850	-	3150	1 pieces
Cast	300	60	30	70	Provided	1.8	1.8	-	ball bearing	wheel	10484	-	1800	1 pieces
Cast	300	45	25	60	Provided	1.3	1.3	-	ball bearing	wheel	8820	-	1300	1 pieces
Cast	300	80	30	90	Provided	2.4	2.4	-	ball bearing	wheel	13300	-	2400	1 pieces
Cast	300	80	35	90	Provided	2.4	2.4	-	ball bearing	wheel	13301	-	2400	1 pieces
Cast	300	100	35	120	Provided	3	3	-	ball bearing	wheel	19130	-	3000	1 pieces
Cast	360	75	40	90	Provided	2.5	2.5	-	ball bearing	wheel	19500	-	2500	1 pieces
-	360	80	40	90	Other	-	-	Other Materials	ball bearing	wheel	19602	-	3000	1 pieces
Cast	360	100	40	100	Provided	3.6	3.6	-	ball bearing	wheel	25450	-	3600	1 pieces
Cast	360	120	40	120	Provided	3.8	3.8	-	ball bearing	wheel	28600	-	3800	1 pieces
Cast	400	60	35	75	Provided	2.4	2.4	-	ball bearing	wheel	22175	-	2400	1 pieces
Cast	400	80	40	90	Provided	3	3	-	ball bearing	wheel	24000	-	3000	1 pieces
Cast	400	100	40	120	Provided	3.8	3.8	-	ball bearing	wheel	29275	-	3800	1 pieces
Cast	400	125	50	125	Provided	5	5	-	ball bearing	wheel	37500	-	5000	1 pieces
Cast	500	100	50	100	Provided	5	5	-	ball bearing	wheel	47000	-	5000	1 pieces
Cast	500	150	60	150	Provided	7.5	7.5	-	ball bearing	wheel	75000	-	7500	1 pieces
Cast	500	200	80	200	Provided	10	10	-	ball bearing	wheel	105000	-	10000	1 pieces
Cast	600	150	80	150	Provided	9	9	-	ball bearing	wheel	99000	-	9000	1 pieces
Cast	600	200	80	200	Provided	12	12	-	ball bearing	wheel	141000	-	12000	1 pieces
Cast	750	200	120	200	Provided	15	15	-	ball bearing	wheel	229500	-	15000	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

27,127.77 € ( 32,282.05 € )	23 working days
73.92 € ( 87.96 € )	5 working days
114.83 € ( 136.65 € )	5 working days
104.48 € ( 124.33 € )	5 working days
120.10 € ( 142.92 € )	5 working days
85.68 € ( 101.96 € )	5 working days
109.28 € ( 130.04 € )	5 working days
107.22 € ( 127.59 € )	5 working days
105.62 € ( 125.69 € )	5 working days
110.98 € ( 132.07 € )	5 working days
122.17 € ( 145.38 € )	5 working days
182.73 € ( 217.45 € )	5 working days
176.82 € ( 210.42 € )	5 working days
133.27 € ( 158.59 € )	5 working days
151.42 € ( 180.19 € )	5 working days
124.23 € ( 147.83 € )	5 working days
149.55 € ( 177.96 € )	5 working days
183.40 € ( 218.25 € )	5 working days
127.82 € ( 152.11 € )	5 working days
131.57 € ( 156.57 € )	5 working days
137.50 € ( 163.63 € )	5 working days
141.27 € ( 168.11 € )	5 working days
238.60 € ( 283.93 € )	5 working days
183.50 € ( 218.37 € )	5 working days
185.93 € ( 221.26 € )	5 working days
145.12 € ( 172.69 € )	5 working days
148.88 € ( 177.17 € )	5 working days
178.32 € ( 212.20 € )	5 working days
230.98 € ( 274.87 € )	5 working days
233.33 € ( 277.66 € )	5 working days
236.17 € ( 281.04 € )	5 working days
230.23 € ( 273.97 € )	5 working days
232.58 € ( 276.77 € )	5 working days
287.78 € ( 342.46 € )	5 working days
235.42 € ( 280.15 € )	5 working days
213.40 € ( 253.95 € )	5 working days
235.13 € ( 279.80 € )	5 working days
279.42 € ( 332.51 € )	5 working days
356.35 € ( 424.06 € )	5 working days
940.97 € ( 1,119.75 € )	5 working days
393.13 € ( 467.82 € )	5 working days
384.28 € ( 457.29 € )	5 working days
450.12 € ( 535.64 € )	5 working days
455.77 € ( 542.37 € )	5 working days
780.80 € ( 929.15 € )	5 working days
886.88 € ( 1,055.39 € )	5 working days
961.67 € ( 1,144.39 € )	5 working days
1,159.45 € ( 1,379.75 € )	5 working days
1,218.23 € ( 1,449.69 € )	5 working days
1,104.33 € ( 1,314.15 € )	5 working days
1,147.42 € ( 1,365.43 € )	5 working days
1,332.32 € ( 1,585.46 € )	5 working days
1,456.73 € ( 1,733.51 € )	5 working days
1,757.88 € ( 2,091.88 € )	5 working days
2,986.65 € ( 3,554.11 € )	5 working days
3,462.83 € ( 4,120.77 € )	5 working days
3,600.23 € ( 4,284.27 € )	23 working days
4,551.08 € ( 5,415.79 € )	5 working days
9,888.32 € ( 11,767.10 € )	23 working days

More Information

Basic information

Basic information

Heavy Duty Wheel, with Blickle Extrathane® Polyurethane Tread, with Cast Iron Wheel Centre

Tread:

high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A
low rolling resistance
high abrasion resistance
high cut and tear propagation resistance
colour light brown, non-marking, non-staining
excellent chemical connection with the wheel centre

Wheel centre:

rugged grey cast iron
lacquered, colour silver

Other features:

high chemical resistance to many aggressive substances
operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C

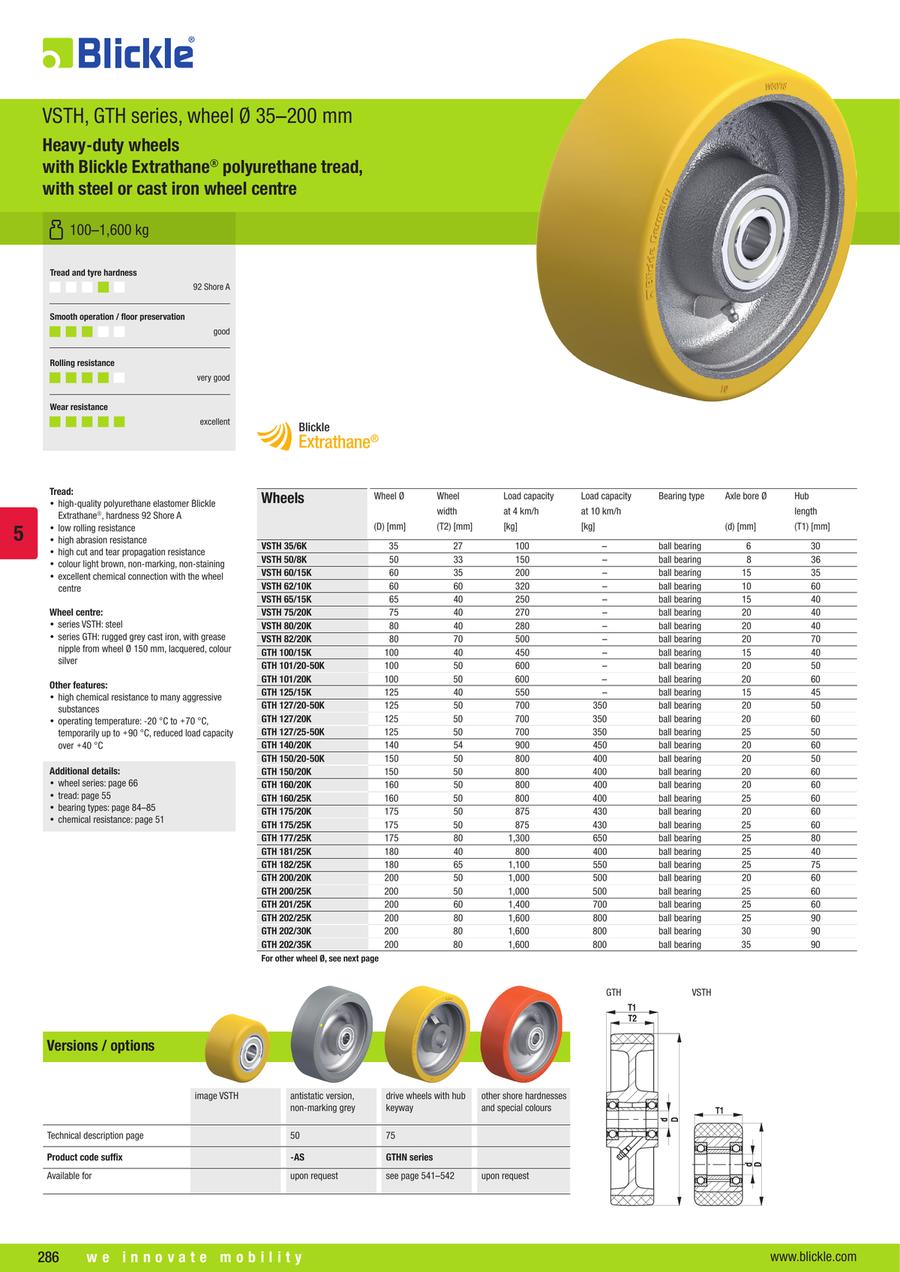

Catalog
