Configure
- Wheel O.D.(mm)
- 100
- 125
- 150
- 160
- 200
- 250
- 300
- 400
- Wheel Width(mm)
- 40
- 50
- 80
- 100
- Hole Diameter(mm)
- 20
- 25
- 30
- 35
- 40
- 50
- 60
- Hub Width(mm)
- 40
- 60
- 75
- 80
- 100
- Max. Load / Allowable Load(daN)
- 1.4
- 1.8
- 2.1
- 2.7
- 3.4
- 400
- 650
- 700
- 900
- Max. Load / Allowable Load(kg)
- 1.4
- 1.8
- 2.1
- 2.7
- 3.4
- 400
- 650
- 700
- 900
- Weight(g)
- 1005
- 1812
- 2185
- 2528
- 4041
- 7499
- 10868
- 13000
- 17500
- 29400
- Load capacity at 4km/h(kg)
- 400
- 650
- 700
- 900
- 1400
- 1800
- 2100
- 2700
- 3400
- Type
- Est. shipping days
- All
- Within 5 working days

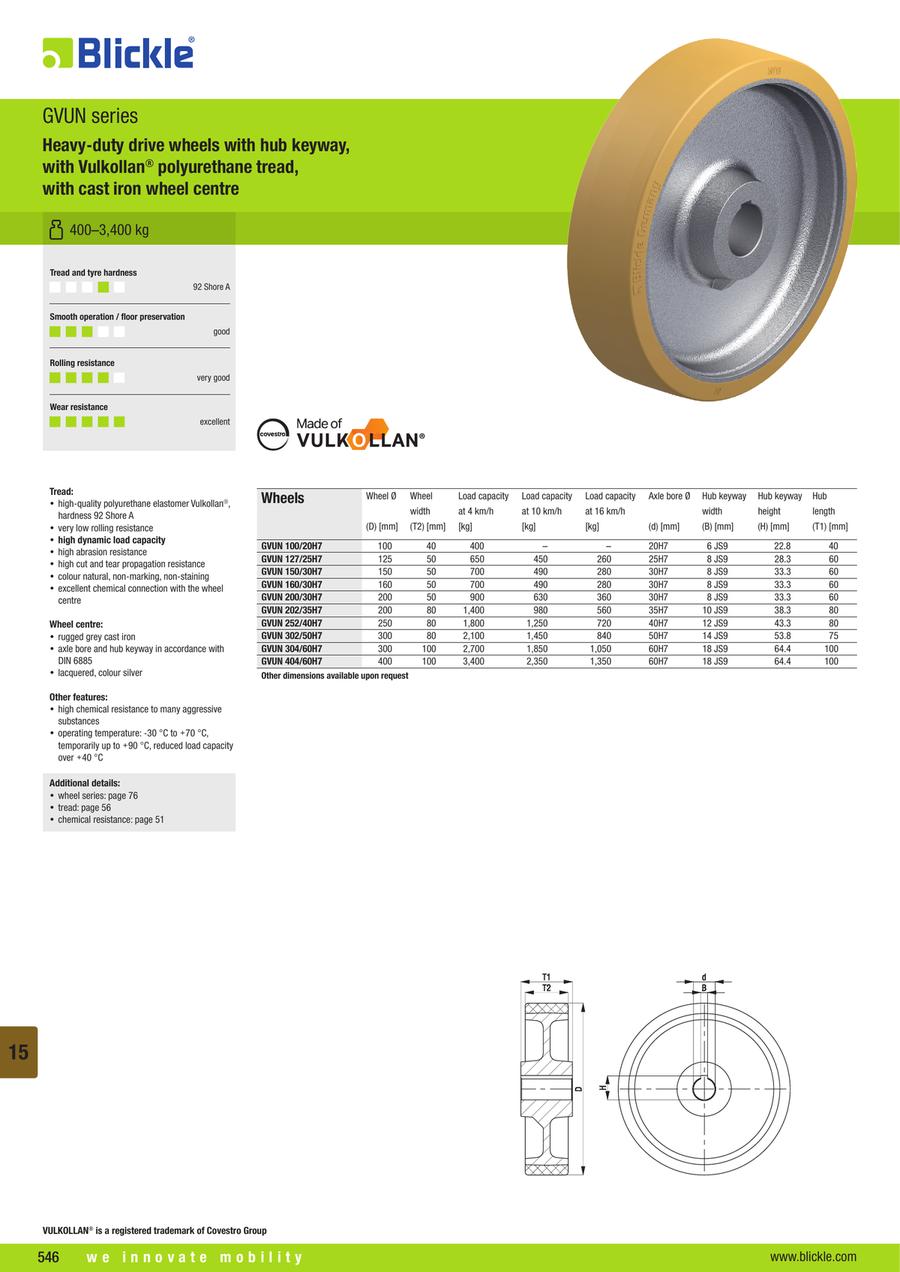

Heavy Duty Drive Wheel, GVUN Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
152.00 € ( 180.88 € ) | 5 working days |
191.56 € ( 227.96 € ) | 5 working days |
206.74 € ( 246.02 € ) | 5 working days |
215.02 € ( 255.87 € ) | 5 working days |
267.60 € ( 318.44 € ) | 5 working days |
350.80 € ( 417.45 € ) | 5 working days |
518.14 € ( 616.59 € ) | 5 working days |
555.47 € ( 661.01 € ) | 5 working days |
837.63 € ( 996.78 € ) | 5 working days |
1,427.17 € ( 1,698.33 € ) | 5 working days |
More Information
Basic information
Heavy Duty Drive Wheel, with Hub Keyway, with Vulkollan® Tread
Tread:
- high-quality polyurethane elastomer Vulkollan®, hardness 92 Shore A
- very low rolling resistance
- high dynamic load capacity
- high abrasion resistance
- high cut and tear propagation resistance
- colour natural, non-marking, non-staining
- excellent chemical connection with the wheel centre
- rugged grey cast iron
- axle bore and hub keyway in accordance with DIN 6885
- lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
- VULKOLLAN® is a registered trademark of Covestro Group
