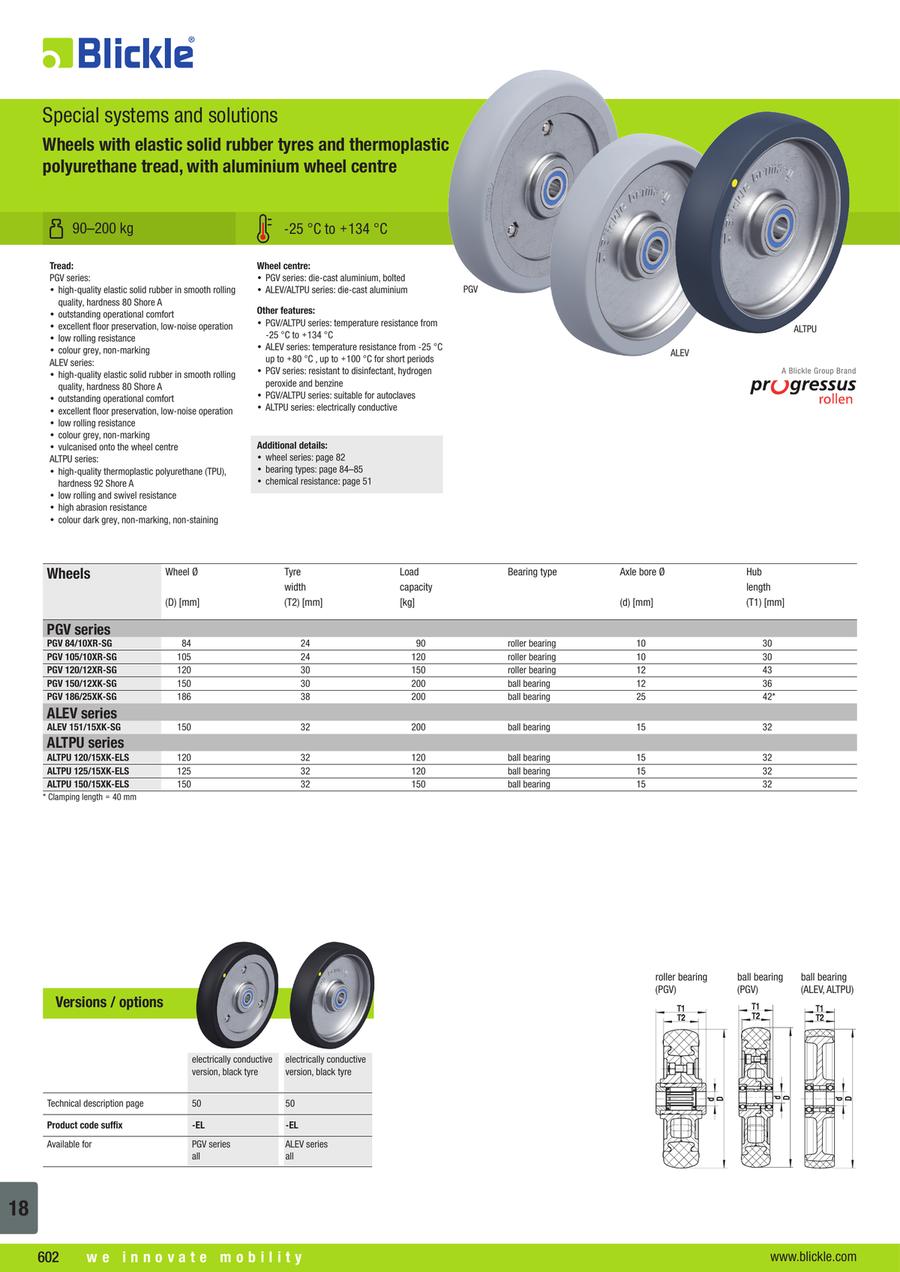

Wheel, PGV Series
Tread:
- high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A
- very good operational comfort
- very good floor preservation, low-noise operation
- low rolling resistance
- colour grey, non-marking
Wheel centre:
- die-cast aluminium, bolted
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +134 °C, reduced load capacity over +35 °C
- suitable for autoclaves
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| PGV 84/10XR-EL |
| PGV 84/10XR-SG |
| PGV 105/10XR-EL |
| PGV 105/10XR-SG |
| PGV 120/12XR-EL |
| PGV 120/12XR-SG |
| PGV 150/12XK-EL |
| PGV 150/12XK-SG |
| PGV 186/25XK-EL |
| PGV 186/25XK-SG |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Max. Load / Allowable Load (daN) | Max. Load / Allowable Load (kg) | Bearing type | Weight (g) | Electrically conductive | Tread color | Non-staining | Non-marking | Min. temperature resistance (° C) | Load capacity at 4km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
119.43 € | 1 | 5 Days | 84 | 24 | 10 | 30 | 90 | 90 | roller bearing | 254 | yes | black | no | no | -25 | 90 | ||
113.47 € | 1 | 5 Days | 84 | 24 | 10 | 30 | 90 | 90 | roller bearing | 266 | no | grey | yes | yes | -25 | 90 | ||
131.20 € | 1 | 5 Days | 105 | 24 | 10 | 30 | 120 | 120 | roller bearing | 375 | yes | black | no | no | -25 | 120 | ||
124.15 € | 1 | 5 Days | 105 | 24 | 10 | 30 | 120 | 120 | roller bearing | 398 | no | grey | yes | yes | -25 | 120 | ||
135.38 € | 1 | 5 Days | 120 | 30 | 12 | 43 | 150 | 150 | roller bearing | 526 | yes | black | no | no | -25 | 150 | ||
125.98 € | 1 | 5 Days | 120 | 30 | 12 | 43 | 150 | 150 | roller bearing | 580 | no | grey | yes | yes | -25 | 150 | ||
142.48 € | 1 | 5 Days | 150 | 30 | 12 | 36 | 200 | 200 | ball bearing | 711 | yes | black | no | no | -20 | 200 | ||
130.50 € | 1 | 5 Days | 150 | 30 | 12 | 36 | 200 | 200 | ball bearing | 744 | no | grey | yes | yes | -20 | 200 | ||
197.52 € | 1 | 5 Days | 186 | 38 | 25 | 40 | 200 | 200 | ball bearing | 1464 | yes | black | no | no | -20 | 200 | ||
184.35 € | 1 | 5 Days | 186 | 38 | 25 | 40 | 200 | 200 | ball bearing | 1499 | no | grey | yes | yes | -20 | 200 |
Loading...
Basic information
| Bearing | Provided | Wheel Material | Aluminum | Material (details) | die-cast aluminium |
|---|---|---|---|---|---|
| Product type | wheel | Antistatic | no | Suitable for autoclaves | yes |
| Tread and tyre hardness | 80 Shore A | Wheel body colour | silver grey | Heat-resistant | yes |
| Tread hydrolysis-resistant | no | Tread material | Rubber | Rustproof | yes |
| Max. temperature resistance(° C) | 134 |
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Max. Load / Allowable Load(daN)
-
Max. Load / Allowable Load(kg)
-
Bearing type
- ball bearing
- roller bearing
-
Weight(g)
-
Electrically conductive
- no
- yes
-
Tread color
- black
- grey
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Min. temperature resistance(° C)
- -25
- -20
-
Load capacity at 4km/h(kg)
-
Type
- PGV
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
