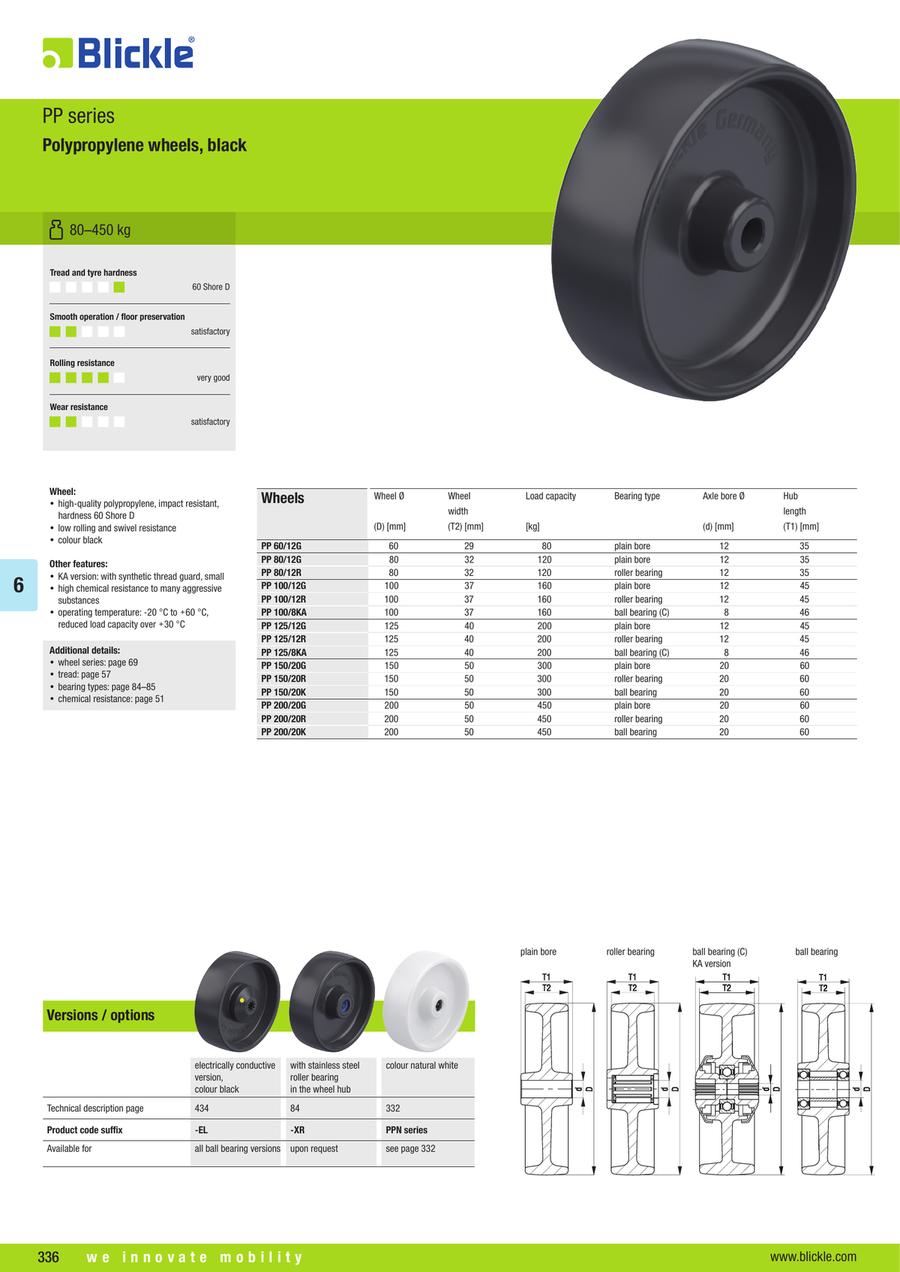

Polypropylene Wheel, PP Series
Wheel:
- high-quality polypropylene, impact resistant, hardness 60 Shore D
- low rolling and swivel resistance
- colour black
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Max. Load / Allowable Load (daN) | Max. Load / Allowable Load (kg) | Bearing type | Weight (g) | Electrically conductive | Rustproof | Non-marking | Load capacity at 4km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.52 € | 1 | 5 Days | 60 | 29 | 12 | 35 | 80 | 80 | plain bore | 40 | no | yes | yes | 80 | ||
3.78 € | 1 | 5 Days | 80 | 32 | 12 | 35 | 120 | 120 | plain bore | 68 | no | yes | yes | 120 | ||
7.03 € | 1 | 5 Days | 80 | 32 | 12 | 35 | 120 | 120 | roller bearing | 92 | no | no | yes | 120 | ||
13.97 € | 1 | 5 Days | 100 | 37 | 8 | 46 | 160 | 160 | ball bearing (C) | 177 | no | no | yes | 160 | ||
20.50 € | 1 | 7 Days | 100 | 37 | 8 | 46 | 160 | 160 | ball bearing (C) | 186 | yes | no | no | 160 | ||
6.85 € | 1 | 5 Days | 100 | 37 | 12 | 45 | 160 | 160 | plain bore | 124 | no | yes | yes | 160 | ||
10.18 € | 1 | 5 Days | 100 | 37 | 12 | 45 | 160 | 160 | roller bearing | 155 | no | no | yes | 160 | ||
17.93 € | 1 | 5 Days | 125 | 40 | 8 | 46 | 200 | 200 | ball bearing (C) | 240 | no | no | yes | 200 | ||
24.90 € | 1 | 7 Days | 125 | 40 | 8 | 46 | 200 | 200 | ball bearing (C) | 210 | yes | no | no | 200 | ||
8.39 € | 1 | 5 Days | 125 | 40 | 12 | 45 | 200 | 200 | plain bore | 182 | no | yes | yes | 200 | ||
11.98 € | 1 | 5 Days | 125 | 40 | 12 | 45 | 200 | 200 | roller bearing | 220 | no | no | yes | 200 | ||
13.70 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 300 | 300 | plain bore | 306 | no | yes | yes | 300 | ||
34.70 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 300 | 300 | ball bearing | 602 | no | no | yes | 300 | ||
44.28 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 300 | 300 | ball bearing | 602 | yes | no | no | 300 | ||
19.29 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 300 | 300 | roller bearing | 407 | no | no | yes | 300 | ||
29.48 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 450 | 450 | plain bore | 534 | no | yes | yes | 450 | ||
54.53 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 450 | 450 | ball bearing | 802 | no | no | yes | 450 | ||
71.60 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 450 | 450 | ball bearing | 852 | yes | no | no | 450 | ||
38.57 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 450 | 450 | roller bearing | 616 | no | no | yes | 450 |
Loading...
Basic information
| Wheel Material | Resin | Bearing | Provided | Wheel Material | Resin |
|---|---|---|---|---|---|
| Material (details) | high-quality polypropylene | Product type | wheel | Antistatic | no |
| Suitable for autoclaves | no | Tread and tyre hardness | 60 Shore D | Tread color | black |
| Wheel body colour | black | Heat-resistant | no | Tread hydrolysis-resistant | no |
| Non-staining | yes | Tread material | Synthetic | Max. temperature resistance(° C) | 60 |
| Min. temperature resistance(° C) | -20 |
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Max. Load / Allowable Load(daN)
-
Max. Load / Allowable Load(kg)
-
Bearing type
- ball bearing
- ball bearing (C)
- plain bore
- roller bearing
-
Weight(g)
-
Electrically conductive
- no
- yes
-
Rustproof
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 4km/h(kg)
-
Type
- PP
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
