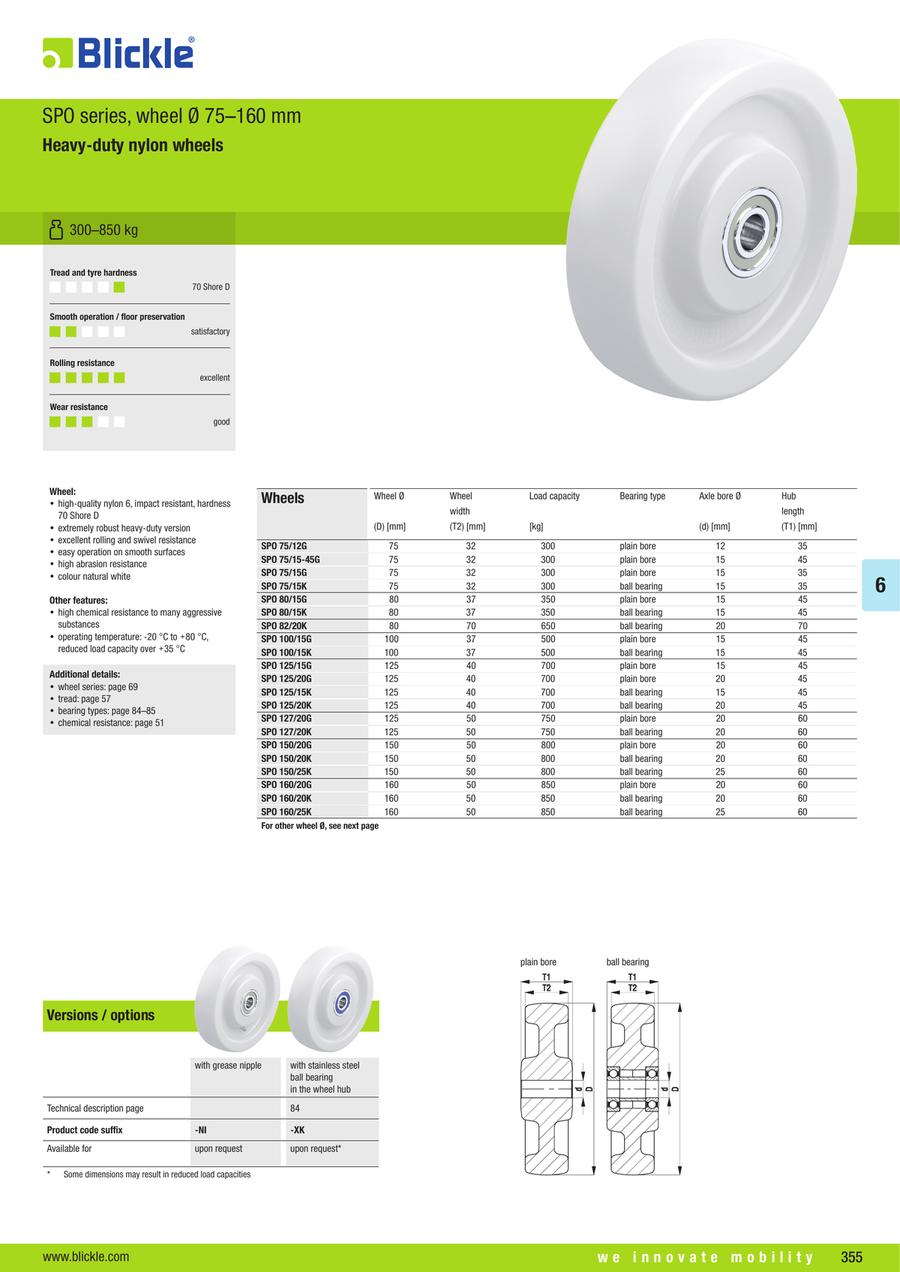

Nylon Heavy Duty Wheel, SPO Series
Wheel:
- high-quality nylon 6, impact resistant, hardness 70 Shore D
- extremely robust heavy-duty version
- excellent rolling and swivel resistance
- easy operation on smooth surfaces
- high abrasion resistance
- colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Max. Load / Allowable Load (daN) | Max. Load / Allowable Load (kg) | Bearing type | Weight (g) | Rustproof | Min. temperature resistance (° C) | Clamping length (mm) | Load capacity at 4km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11.39 € | 1 | 5 Days | 75 | 32 | 12 | 35 | 300 | 300 | plain bore | 115 | yes | -25 | - | 300 | ||
11.39 € | 1 | 5 Days | 75 | 32 | 15 | 45 | 300 | 300 | plain bore | 126 | yes | -25 | - | 300 | ||
11.39 € | 1 | 5 Days | 75 | 32 | 15 | 35 | 300 | 300 | plain bore | 111 | yes | -25 | - | 300 | ||
24.15 € | 1 | 5 Days | 75 | 32 | 15 | 35 | 300 | 300 | ball bearing | 193 | no | -20 | - | 300 | ||
15.90 € | 1 | 5 Days | 80 | 37 | 15 | 45 | 350 | 350 | plain bore | 146 | yes | -25 | - | 350 | ||
31.55 € | 1 | 5 Days | 80 | 37 | 15 | 45 | 350 | 350 | ball bearing | 243 | no | -20 | - | 350 | ||
48.15 € | 1 | 5 Days | 80 | 70 | 20 | 70 | 650 | 650 | ball bearing | 529 | no | -20 | - | 650 | ||
21.82 € | 1 | 5 Days | 100 | 37 | 15 | 45 | 500 | 500 | plain bore | 238 | yes | -25 | - | 500 | ||
36.90 € | 1 | 5 Days | 100 | 37 | 15 | 45 | 500 | 500 | ball bearing | 357 | no | -20 | - | 500 | ||
37.30 € | 1 | 5 Days | 125 | 40 | 15 | 45 | 700 | 700 | plain bore | 393 | yes | -25 | - | 700 | ||
54.73 € | 1 | 5 Days | 125 | 40 | 15 | 45 | 700 | 700 | ball bearing | 588 | no | -20 | - | 700 | ||
37.30 € | 1 | 5 Days | 125 | 40 | 20 | 45 | 700 | 700 | plain bore | 385 | yes | -25 | - | 700 | ||
55.82 € | 1 | 5 Days | 125 | 40 | 20 | 45 | 700 | 700 | ball bearing | 566 | no | -20 | - | 700 | ||
51.43 € | 1 | 5 Days | 125 | 50 | 20 | 60 | 750 | 750 | plain bore | 518 | yes | -25 | - | 750 | ||
66.80 € | 1 | 5 Days | 125 | 50 | 20 | 60 | 750 | 750 | ball bearing | 762 | no | -20 | - | 750 | ||
56.91 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 800 | 800 | plain bore | 657 | yes | -25 | - | 800 | ||
73.65 € | 1 | 5 Days | 150 | 50 | 20 | 60 | 800 | 800 | ball bearing | 926 | no | -20 | - | 800 | ||
81.20 € | 1 | 5 Days | 150 | 50 | 25 | 60 | 800 | 800 | ball bearing | 950 | no | -20 | - | 800 | ||
72.15 € | 1 | 5 Days | 160 | 50 | 20 | 60 | 850 | 850 | plain bore | 737 | yes | -25 | - | 850 | ||
101.92 € | 1 | 5 Days | 160 | 50 | 20 | 60 | 850 | 850 | ball bearing | 1026 | no | -20 | - | 850 | ||
109.45 € | 1 | 7 Days | 160 | 50 | 25 | 60 | 850 | 850 | ball bearing | 1022 | no | -20 | - | 850 | ||
110.00 € | 1 | 5 Days | 175 | 50 | 20 | 60 | 1 | 1 | plain bore | 1001 | yes | -25 | - | 1000 | ||
127.28 € | 1 | 5 Days | 175 | 50 | 20 | 60 | 1 | 1 | ball bearing | 1323 | no | -20 | - | 1000 | ||
134.84 € | 1 | 5 Days | 175 | 50 | 25 | 60 | 1 | 1 | ball bearing | 1302 | no | -20 | - | 1000 | ||
129.06 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 1.5 | 1.5 | plain bore | 1230 | yes | -25 | - | 1500 | ||
145.25 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 1.25 | 1.25 | ball bearing | 1648 | no | -20 | - | 1250 | ||
129.06 € | 1 | 5 Days | 200 | 50 | 25 | 60 | 1.5 | 1.5 | plain bore | 1224 | yes | -25 | - | 1500 | ||
152.79 € | 1 | 5 Days | 200 | 50 | 25 | 60 | 1.5 | 1.5 | ball bearing | 1734 | no | -20 | - | 1500 | ||
161.17 € | 1 | 5 Days | 200 | 50 | 30 | 60 | 1.5 | 1.5 | ball bearing | 1687 | no | -20 | - | 1500 | ||
71.87 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 1 | 1 | plain bore | 982 | yes | -25 | - | 1000 | ||
94.47 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 1 | 1 | ball bearing | 1273 | no | -20 | - | 1000 | ||
230.29 € | 1 | 5 Days | 250 | 65 | 25 | 70 | 2 | 2 | plain bore | 2290 | yes | -25 | - | 2000 | ||
257.71 € | 1 | 5 Days | 250 | 65 | 25 | 65 | 2 | 2 | ball bearing | 2808 | no | -20 | - | 2000 | ||
266.09 € | 1 | 5 Days | 250 | 65 | 30 | 65 | 2 | 2 | ball bearing | 2700 | no | -20 | - | 2000 | ||
268.83 € | 1 | 5 Days | 250 | 65 | 35 | 65 | 2 | 2 | ball bearing | 2790 | no | -20 | - | 2000 | ||
157.23 € | 1 | 5 Days | 250 | 50 | 25 | 60 | 1.5 | 1.5 | plain bore | 1574 | yes | -25 | - | 1500 | ||
176.43 € | 1 | 5 Days | 250 | 50 | 25 | 60 | 1.5 | 1.5 | ball bearing | 1896 | no | -20 | 60 | 1500 |
Loading...
Basic information
| Wheel Material | Resin | Bearing | Provided | Wheel Material | Resin |
|---|---|---|---|---|---|
| Material (details) | high-quality nylon 6 | Product type | wheel | Antistatic | no |
| Suitable for autoclaves | no | Tread and tyre hardness | 70 Shore D | Electrically conductive | no |
| Tread color | natural white | Wheel body colour | natural white | Heat-resistant | no |
| Tread hydrolysis-resistant | no | Non-staining | yes | Tread material | Synthetic |
| Non-marking | yes | Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Max. Load / Allowable Load(daN)
-
Max. Load / Allowable Load(kg)
-
Bearing type
- ball bearing
- plain bore
-
Weight(g)
-
Rustproof
- no
- yes
-
Min. temperature resistance(° C)
- -25
- -20
-
Clamping length(mm)
-
Load capacity at 4km/h(kg)
-
Type
- SPO
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
