Configure
- Wheel O.D.(mm)
- 100
- 125
- 160
- 200
- Wheel Width(mm)
- 30
- 38
- 40
- 50
- Hole Diameter(mm)
- 12
- 20
- Hub Width(mm)
- 45
- 60
- Max. Load / Allowable Load(daN)
- 65
- 90
- 120
- 180
- Max. Load / Allowable Load(kg)
- 65
- 90
- 120
- 180
- Weight(g)
- 335
- 495
- 959
- 1522
- Load capacity at 4km/h(kg)
- 65
- 90
- 120
- 180
- Type
- Est. shipping days
- All
- Within 5 working days

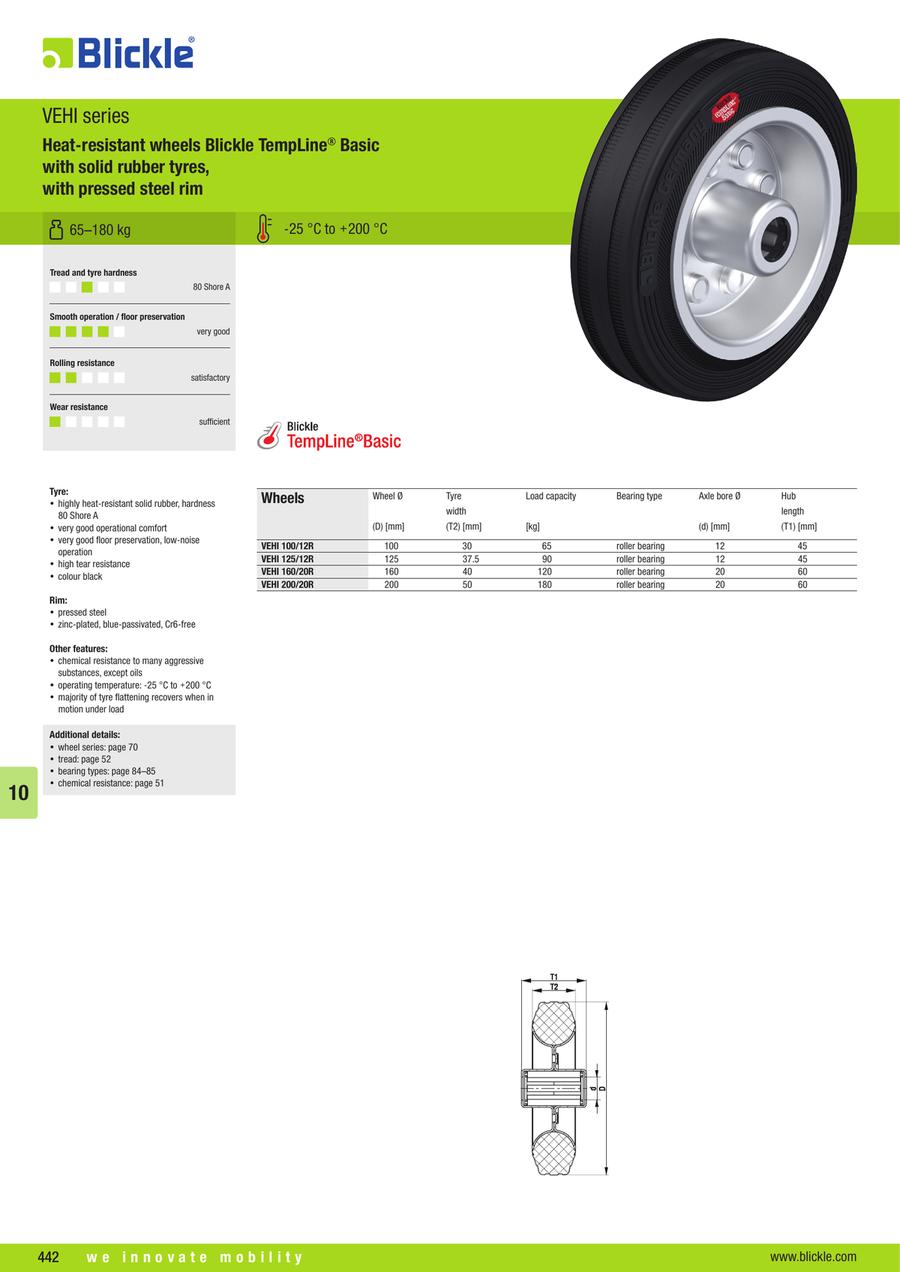

Blickle Templine® Wheel Basic, VEHI Series
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
22.58 € ( 26.87 € ) | 5 working days |
30.16 € ( 35.89 € ) | 5 working days |
47.30 € ( 56.29 € ) | 5 working days |
68.70 € ( 81.75 € ) | 5 working days |
More Information
Basic information
Blickle Templine® Wheel Basic, with Solid Rubber Tyres, with Pressed Steel Rim, Heat-Resistant
Tyre:
- highly heat-resistant solid rubber, hardness 80 Shore A
- very good operational comfort
- very good floor preservation, low-noise operation
- high tear resistance
- colour black
- pressed steel
- zinc-plated, blue-passivated, Cr6-free
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +200 °C
- majority of tyre flattening recovers when in motion under load
