Configure

Wheel O.D.(mm)
- 50
- 75
- 80
- 100
- 125
- 150
Wheel Width(mm)
- 18
- 25
- 30
- 32
Hole Diameter(mm)
- 6
- 8
- 12
Hub Width(mm)
- 22
- 22,5
- 29,5
- 30
- 35
Max. Load / Allowable Load(daN)
- 30
- 40
- 45
- 60
- 70
- 75
- 80
- 90
- 95
- 100
- 110
- 125
- 130
Max. Load / Allowable Load(kg)
- 30
- 40
- 45
- 60
- 70
- 75
- 80
- 90
- 95
- 100
- 110
- 125
- 130
Bearing type
- ball bearing
- plain bore
Material (details)
- high-quality nylon 6
- high-quality polypropylene
Weight(g)
- 41
- 68
- 72
- 108
- 116
- 142
- 147
- 161
- 183
- 185
- 208
- 221
- 243
- 280
- 284
- 297
- 313
- 335
- 342
- 373
- 403
- 439
- 444
- 501
Electrically conductive
- no
- yes
Tread color
- black
- grey
Non-staining
- no
- yes
Rustproof
- no
- yes
Non-marking
- no
- yes
Load capacity at 4km/h(kg)
- 30
- 45
- 60
- 70
- 75
- 80
- 95
- 100
Load capacity at 3km/h(kg)
- 30
- 40
- 45
- 60
- 70
- 75
- 80
- 90
- 95
- 100
- 110
- 125
- 130
Type
- VPA
Est. shipping days
- All
- Within 5 working days

BLICKLE

Wheel, VPA Series

Catalog

Part number:

Still undefined. 26 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Wheel O.D.

(mm)

Wheel Width

(mm)

Hole Diameter

(mm)

Hub Width

(mm)

Max. Load / Allowable Load

(daN)

Max. Load / Allowable Load

(kg)

Bearing type

Material (details)

Weight

(g)

Electrically conductive

Tread color

Non-staining

Rustproof

Non-marking

Load capacity at 4km/h

(kg)

Load capacity at 3km/h

(kg)

Minimum order quantity

50	18	6	22	40	40	plain bore	high-quality nylon 6	41	no	grey	yes	yes	yes	-	40	1 pieces
50	18	6	22,5	40	40	ball bearing	high-quality nylon 6	72	no	grey	yes	no	yes	-	40	1 pieces
50	18	6	22,5	30	30	ball bearing	high-quality polypropylene	68	yes	black	no	no	no	30	30	1 pieces
50	18	8	22	40	40	plain bore	high-quality nylon 6	41	no	grey	yes	yes	yes	-	40	1 pieces
75	25	6	30	60	60	ball bearing	high-quality nylon 6	147	no	grey	yes	no	yes	-	60	1 pieces
75	25	6	30	45	45	ball bearing	high-quality polypropylene	142	yes	black	no	no	no	45	45	1 pieces
75	25	8	29,5	60	60	plain bore	high-quality nylon 6	108	no	grey	yes	yes	yes	-	60	1 pieces
80	25	8	35	80	80	ball bearing	high-quality nylon 6	185	no	grey	yes	no	yes	-	80	1 pieces
80	25	8	35	60	60	ball bearing	high-quality polypropylene	161	yes	black	no	no	no	60	60	1 pieces
80	25	12	35	80	80	plain bore	high-quality nylon 6	116	no	grey	yes	yes	yes	-	80	1 pieces
100	25	6	30	90	90	ball bearing	high-quality nylon 6	221	no	grey	yes	no	yes	-	90	1 pieces
100	25	6	30	70	70	ball bearing	high-quality polypropylene	208	yes	black	no	no	no	70	70	1 pieces
100	25	8	29,5	90	90	plain bore	high-quality nylon 6	185	no	grey	yes	yes	yes	-	90	1 pieces
100	25	12	29,5	90	90	plain bore	high-quality nylon 6	183	no	grey	yes	yes	yes	-	90	1 pieces
100	32	8	35	110	110	ball bearing	high-quality nylon 6	297	no	grey	yes	no	yes	-	110	1 pieces
100	32	8	35	80	80	ball bearing	high-quality polypropylene	280	yes	black	no	no	no	80	80	1 pieces
100	32	12	35	110	110	plain bore	high-quality nylon 6	243	no	grey	yes	yes	yes	-	110	1 pieces
125	25	8	35	100	100	ball bearing	high-quality nylon 6	335	no	grey	yes	no	yes	-	100	1 pieces
125	25	8	35	75	75	ball bearing	high-quality polypropylene	313	yes	black	no	no	no	75	75	1 pieces
125	25	12	35	100	100	plain bore	high-quality nylon 6	284	no	grey	yes	yes	yes	-	100	1 pieces
125	32	8	35	125	125	ball bearing	high-quality nylon 6	403	no	grey	yes	no	yes	-	125	1 pieces
125	32	8	35	95	95	ball bearing	high-quality polypropylene	373	yes	black	no	no	no	95	95	1 pieces
125	32	12	35	125	125	plain bore	high-quality nylon 6	342	no	grey	yes	yes	yes	-	125	1 pieces
150	30	8	35	130	130	ball bearing	high-quality nylon 6	501	no	grey	yes	no	yes	-	130	1 pieces
150	30	8	35	100	100	ball bearing	high-quality polypropylene	439	yes	black	no	no	no	100	100	1 pieces
150	30	12	35	130	130	plain bore	high-quality nylon 6	444	no	grey	yes	yes	yes	-	130	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.13 € ( 4.91 € )	5 working days
5.55 € ( 6.60 € )	5 working days
6.69 € ( 7.96 € )	5 working days
2.99 € ( 3.56 € )	5 working days
8.03 € ( 9.56 € )	5 working days
10.02 € ( 11.92 € )	5 working days
5.22 € ( 6.21 € )	5 working days
10.67 € ( 12.70 € )	5 working days
13.28 € ( 15.80 € )	5 working days
6.53 € ( 7.77 € )	5 working days
11.00 € ( 13.09 € )	5 working days
15.39 € ( 18.31 € )	5 working days
8.19 € ( 9.75 € )	5 working days
8.68 € ( 10.33 € )	5 working days
14.48 € ( 17.23 € )	5 working days
19.06 € ( 22.68 € )	5 working days
10.35 € ( 12.32 € )	5 working days
17.95 € ( 21.36 € )	5 working days
23.18 € ( 27.58 € )	5 working days
14.15 € ( 16.84 € )	5 working days
19.20 € ( 22.85 € )	5 working days
25.05 € ( 29.81 € )	5 working days
14.98 € ( 17.83 € )	5 working days
29.20 € ( 34.75 € )	5 working days
46.55 € ( 55.39 € )	5 working days
23.25 € ( 27.67 € )	5 working days

More Information

Basic information

Basic information

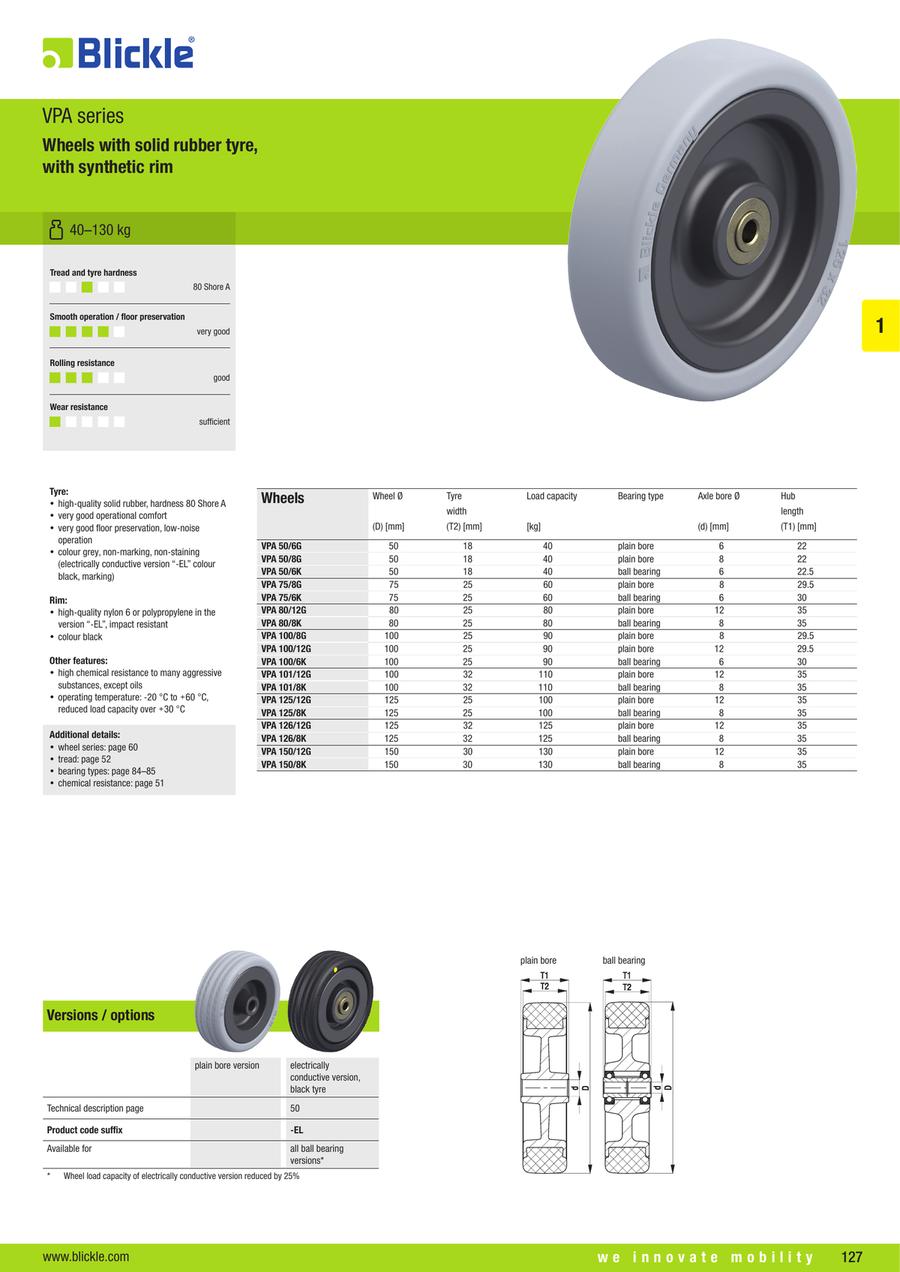

Wheel, with Solid Rubber Tyres, with Synthetic Rim

Tyre:

high-quality solid rubber, hardness 80 Shore A
very good operational comfort
very good floor preservation, low-noise operation
colour grey, non-marking, non-staining (electrically conductive version "-EL" colour black, marking)

Rim:

high-quality nylon 6 or polypropylene in the version "-EL", impact resistant
colour black

Other features:

high chemical resistance to many aggressive substances, except oils
operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
