Index Plungers, with mounting flange, horizontal, stainless steel

Configure

Type
- Standard knob
- With Ring
Specifications
- With Locking
- Without Locking
d1(mm)
- 4
- 5
- 6
- 8
- 10
d2(mm)
- 12
- 16
- 18
- 21
- 25
d3(mm)
- 14
- 18
- 24
- 30
l1(mm)
- 30.5
- 33
- 34.5
- 40
- 43.5
- 45
- 49
- 52
- 57.5
- 59
- 63.5
- 67.5
- 71
- 72.5
- 75
l2 min.(mm)
- 4
- 5
- 6
- 8
- 10
b1(mm)
- 16.5
- 19
- 22
- 25.5
- 27.5
- 30.5
- 33
- 35
- 37.5
- 40
b2(mm)
- 22
- 28
- 32
- 34
- 39
b3(mm)
- 6
- 8
- 10
- 12
- 14.5
b4(mm)
- 3.3
- 4.3
- 5.4
- 6.5
h1(mm)
- 4
- 4.5
- 5
- 6
h2(mm)
- 7
- 9.5
- 10.5
- 12.5
- 14.5
k1(mm)
- 14
- 18
- 21
- 23
- 27
k2(mm)
- 4
- 5
- 5.5
- 6
k3(mm)
- 8
- 10
- 12
- 15
k4(mm)
- 4.5
- 7
- 10
- 10.5
- 13
- 13.5
- 15.5
- 18.5
- 20
F1(N)
- ~3
- ~4
- ~5
- ~6
F2(N)
- ~12
- ~21
- ~22
- ~24
- ~25
Temperature min.(°C)
- -30
Temperature max.(°C)
- 80
- 100
Est. shipping days
- All
- Within 4 working days

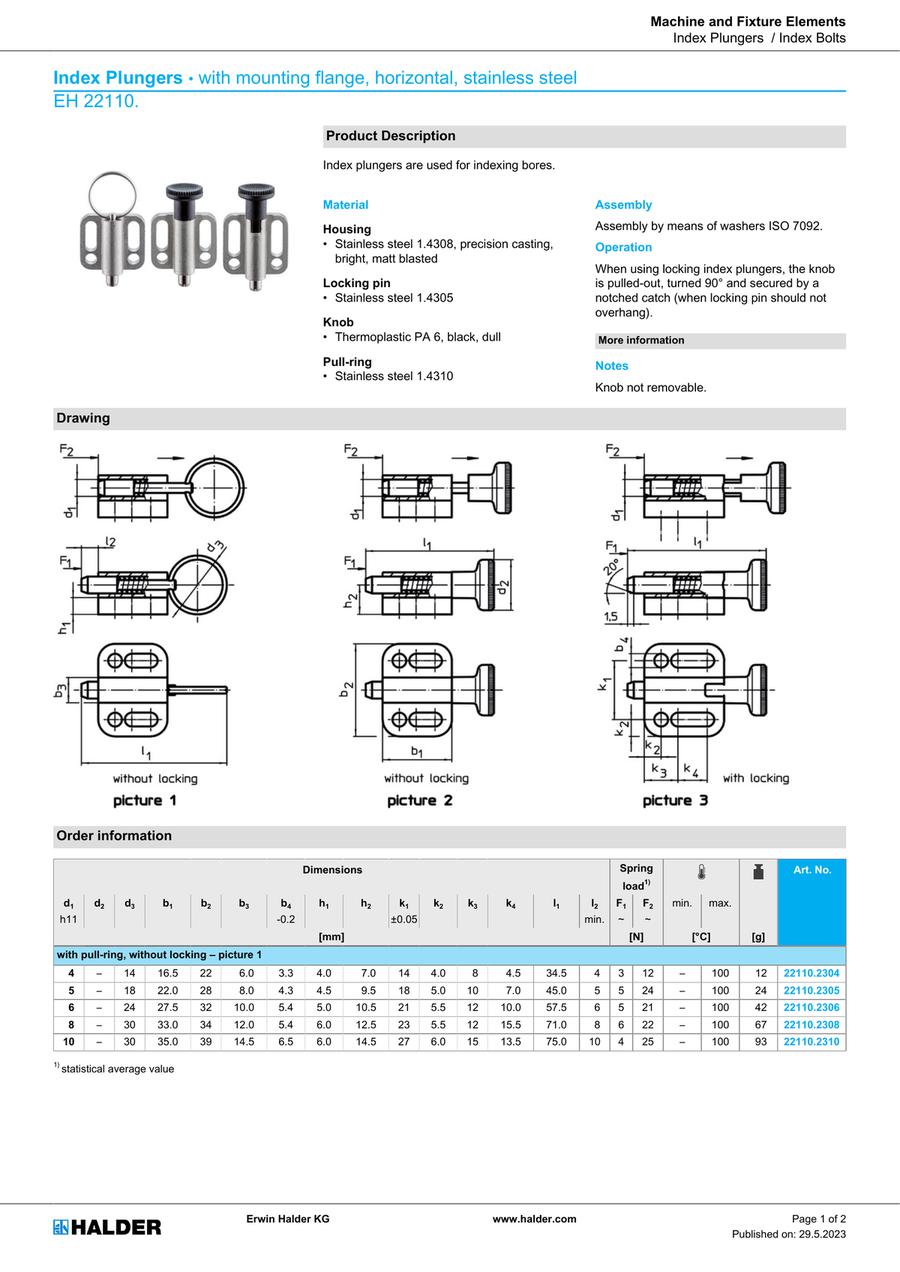

Index Plungers, with mounting flange, horizontal, stainless steel

Catalog

Part number:

Still undefined. 15 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

22110.2304
22110.2305
22110.2306
22110.2308
22110.2310
22110.2324
22110.2325
22110.2326
22110.2328
22110.2330
22110.2344
22110.2345
22110.2346
22110.2348
22110.2350

Type

Specifications

(mm)

l2 min.

(mm)

(N)

Temperature min.

(°C)

Temperature max.

(°C)

Weight

(g)

Minimum order quantity

Data sheet	With Ring	Without Locking	4	-	14	34.5	4	16.5	22	6	3.3	4	7	14	4	8	4.5	~3	~12	-	100	12	1 pieces
Data sheet	With Ring	Without Locking	5	-	18	45	5	22	28	8	4.3	4.5	9.5	18	5	10	7	~5	~24	-	100	24	1 pieces
Data sheet	With Ring	Without Locking	6	-	24	57.5	6	27.5	32	10	5.4	5	10.5	21	5.5	12	10	~5	~21	-	100	42	1 pieces
Data sheet	With Ring	Without Locking	8	-	30	71	8	33	34	12	5.4	6	12.5	23	5.5	12	15.5	~6	~22	-	100	67	1 pieces
Data sheet	With Ring	Without Locking	10	-	30	75	10	35	39	14.5	6.5	6	14.5	27	6	15	13.5	~4	~25	-	100	93	1 pieces
Data sheet	Standard knob	Without Locking	4	12	-	30.5	4	16.5	22	6	3.3	4	7	14	4	8	4.5	~3	~12	-30	80	14	1 pieces
Data sheet	Standard knob	Without Locking	5	16	-	40	5	22	28	8	4.3	4.5	9.5	18	5	10	7	~5	~24	-30	80	26	1 pieces
Data sheet	Standard knob	Without Locking	6	18	-	49	6	27.5	32	10	5.4	5	10.5	21	5.5	12	10	~5	~21	-30	80	44	1 pieces
Data sheet	Standard knob	Without Locking	8	21	-	59	8	33	34	12	5.4	6	12.5	23	5.5	12	15.5	~6	~22	-30	80	67	1 pieces
Data sheet	Standard knob	Without Locking	10	25	-	67.5	10	35	39	14.5	6.5	6	14.5	27	6	15	13.5	~4	~25	-30	80	99	1 pieces
Data sheet	Standard knob	With Locking	4	12	-	33	4	19	22	6	3.3	4	7	14	4	8	7	~3	~12	-30	80	15	1 pieces
Data sheet	Standard knob	With Locking	5	16	-	43.5	5	25.5	28	8	4.3	4.5	9.5	18	5	10	10.5	~5	~24	-30	80	30	1 pieces
Data sheet	Standard knob	With Locking	6	18	-	52	6	30.5	32	10	5.4	5	10.5	21	5.5	12	13	~5	~21	-30	80	48	1 pieces
Data sheet	Standard knob	With Locking	8	21	-	63.5	8	37.5	34	12	5.4	6	12.5	23	5.5	12	20	~6	~22	-30	80	68	1 pieces
Data sheet	Standard knob	With Locking	10	25	-	72.5	10	40	39	14.5	6.5	6	14.5	27	6	15	18.5	~4	~25	-30	80	109	1 pieces
