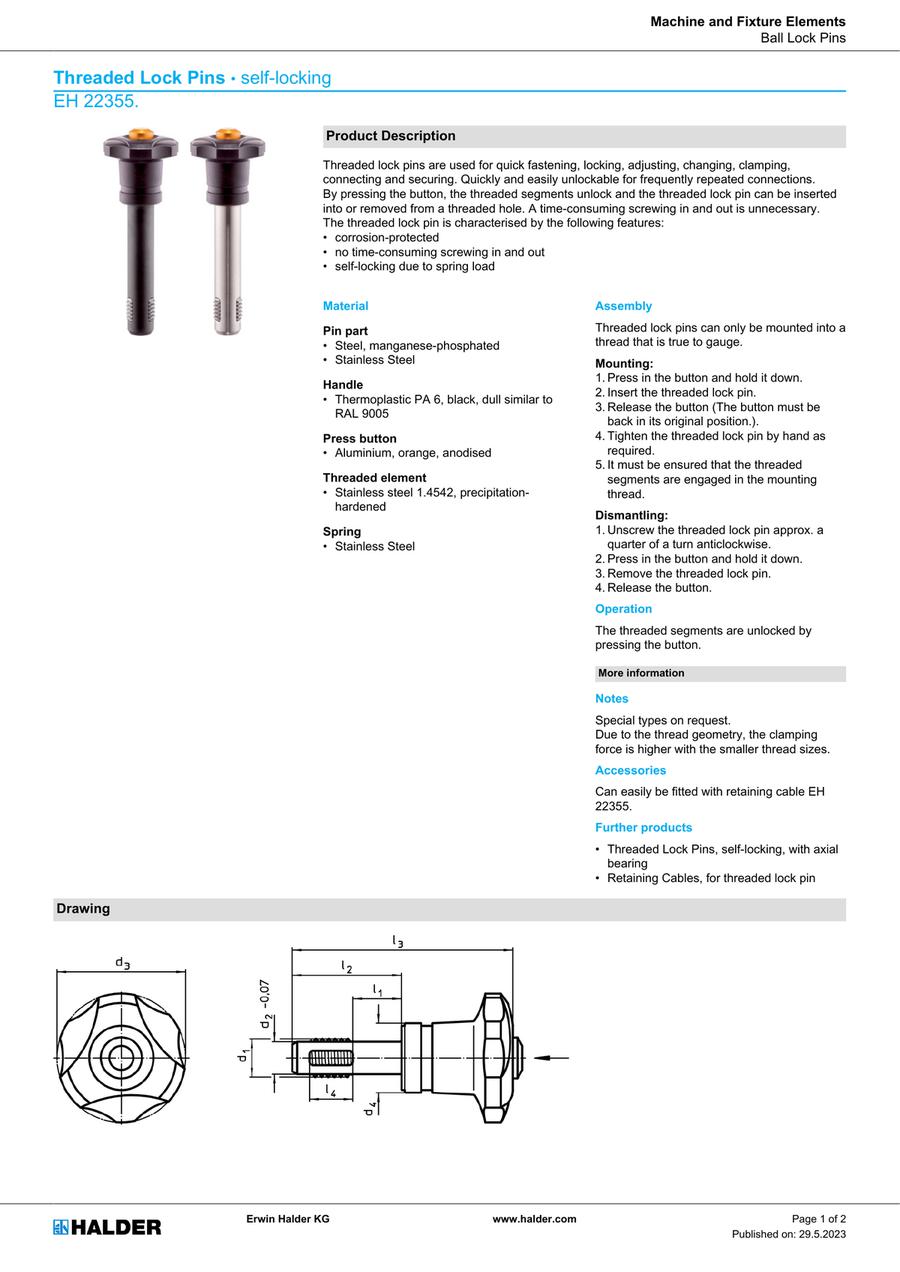

Threaded Lock Pins, self-locking
Pin part
- • Steel, manganese-phosphated
- • Stainless Steel
Handle
- • Thermoplastic PA 6, black, dull similar to RAL 9005
Press button
- • Aluminium, orange, anodised
Threaded element
- • Stainless steel 1.4542, precipitation-hardened
Spring
- • Stainless Steel
Assembly
Threaded lock pins can only be mounted into a thread that is true to gauge.
Mounting:
- • Press in the button and hold it down.
• Insert the threaded lock pin.
• Release the button (The button must be back in its original position.).
• Tighten the threaded lock pin by hand as required.
• It must be ensured that the threaded segments are engaged in the mounting thread.
Dismantling:
- • Unscrew the threaded lock pin approx. a quarter of a turn anticlockwise.
• Press in the button and hold it down.
• Remove the threaded lock pin.
• Release the button.
Operation
The threaded segments are unlocked by pressing the button.
Notes
Special types on request.
Due to the thread geometry, the clamping force is higher with the smaller thread sizes.
Accessories
Can easily be fitted with retaining cable EH 22355.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | d1 (mm) | d2 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | Material Pin | Locating thread (mm) | Clamping force max. (kN) | Clamping force (kN) | Shearing resistance, two-shear min. (kN) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
80.97 € | 1 | 2 Days | M8 | 6.62 | 10 | 23.8 | 58.4 | 8 | Steel, manganese-phosphated | M8 | 3.3 | ~2.3 | 12.7 | 86 | |||
78.84 € | 1 | 3 Days | M8 | 6.62 | 20 | 33.8 | 68.4 | 8 | Steel, manganese-phosphated | M8 | 3.3 | ~2.3 | 12.7 | 90 | |||
79.43 € | 1 | 3 Days | M8 | 6.62 | 30 | 43.8 | 78.4 | 8 | Steel, manganese-phosphated | M8 | 3.3 | ~2.3 | 12.7 | 93 | |||
81.31 € | 1 | 3 Days | M10 | 8.35 | 10 | 26 | 60.6 | 10 | Steel, manganese-phosphated | M10 | 2.9 | ~2.0 | 20.6 | 93 | |||
81.95 € | 1 | 3 Days | M10 | 8.35 | 20 | 36 | 70.6 | 10 | Steel, manganese-phosphated | M10 | 2.9 | ~2.0 | 20.6 | 94 | |||
82.41 € | 1 | 3 Days | M10 | 8.35 | 30 | 46 | 80.6 | 10 | Steel, manganese-phosphated | M10 | 2.9 | ~2.0 | 20.6 | 99 | |||
84.00 € | 1 | 3 Days | M12 | 10.07 | 15 | 34 | 68.6 | 12 | Steel, manganese-phosphated | M12 | 2.5 | ~1.8 | 30.4 | 99 | |||
84.76 € | 1 | 3 Days | M12 | 10.07 | 30 | 49 | 83.6 | 12 | Steel, manganese-phosphated | M12 | 2.5 | ~1.8 | 30.4 | 108 | |||
85.34 € | 1 | 3 Days | M12 | 10.07 | 50 | 69 | 103.6 | 12 | Steel, manganese-phosphated | M12 | 2.5 | ~1.8 | 30.4 | 122 | |||
94.97 € | 1 | 3 Days | M16 | 13.8 | 15 | 34 | 68.6 | 12 | Steel, manganese-phosphated | M16 | 2.1 | ~1.5 | 62.9 | 116 | |||
95.67 € | 1 | 3 Days | M16 | 13.8 | 30 | 49 | 83.6 | 12 | Steel, manganese-phosphated | M16 | 2.1 | ~1.5 | 62.9 | 133 | |||
96.72 € | 1 | 3 Days | M16 | 13.8 | 50 | 69 | 103.6 | 12 | Steel, manganese-phosphated | M16 | 2.1 | ~1.5 | 62.9 | 155 | |||
89.64 € | 1 | 3 Days | M8 | 6.62 | 10 | 23.8 | 58.4 | 8 | Stainless Steel | M8 | 3.3 | ~2.3 | 16.7 | 88 | |||
91.10 € | 1 | 3 Days | M8 | 6.62 | 20 | 33.8 | 68.4 | 8 | Stainless Steel | M8 | 3.3 | ~2.3 | 16.7 | 90 | |||
92.74 € | 1 | 3 Days | M8 | 6.62 | 30 | 43.8 | 78.4 | 8 | Stainless Steel | M8 | 3.3 | ~2.3 | 16.7 | 92 | |||
95.79 € | 1 | 3 Days | M10 | 8.35 | 10 | 26 | 60.6 | 10 | Stainless Steel | M10 | 2.9 | ~2.0 | 27.1 | 91 | |||
98.02 € | 1 | 3 Days | M10 | 8.35 | 20 | 36 | 70.6 | 10 | Stainless Steel | M10 | 2.9 | ~2.0 | 27.1 | 95 | |||
100.24 € | 1 | 3 Days | M10 | 8.35 | 30 | 46 | 80.6 | 10 | Stainless Steel | M10 | 2.9 | ~2.0 | 27.1 | 120 | |||
104.76 € | 1 | 3 Days | M12 | 10.07 | 15 | 34 | 68.6 | 12 | Stainless Steel | M12 | 2.5 | ~1.8 | 40 | 100 | |||
106.28 € | 1 | 3 Days | M12 | 10.07 | 30 | 49 | 83.6 | 12 | Stainless Steel | M12 | 2.5 | ~1.8 | 40 | 109 | |||
108.21 € | 1 | 3 Days | M12 | 10.07 | 50 | 69 | 103.6 | 12 | Stainless Steel | M12 | 2.5 | ~1.8 | 40 | 120 | |||
125.69 € | 1 | 3 Days | M16 | 13.8 | 15 | 34 | 68.6 | 12 | Stainless Steel | M16 | 2.1 | ~1.5 | 82.7 | 115 | |||
128.03 € | 1 | 3 Days | M16 | 13.8 | 30 | 49 | 83.6 | 12 | Stainless Steel | M16 | 2.1 | ~1.5 | 82.7 | 133 | |||
130.14 € | 1 | 3 Days | M16 | 13.8 | 50 | 69 | 103.6 | 12 | Stainless Steel | M16 | 2.1 | ~1.5 | 82.7 | 156 |
Loading...
Basic information
| Type | Pin Type | d3(mm) | 40 | d4(mm) | 21.6 |
|---|---|---|---|---|---|
| Temperature max.(°C) | 80 | Temperature min.(°C) | -30 | Material Spring | Stainless Steel |
| Material Handle | Thermoplastic PA 6, black | Press button | Aluminium, orange, anodised | Threaded element | Stainless steel 1.4542, precipitationhardened |
| Tightening torque max.(Nm) | 5 | Established tightening torque(Nm) | ~3.5 |
