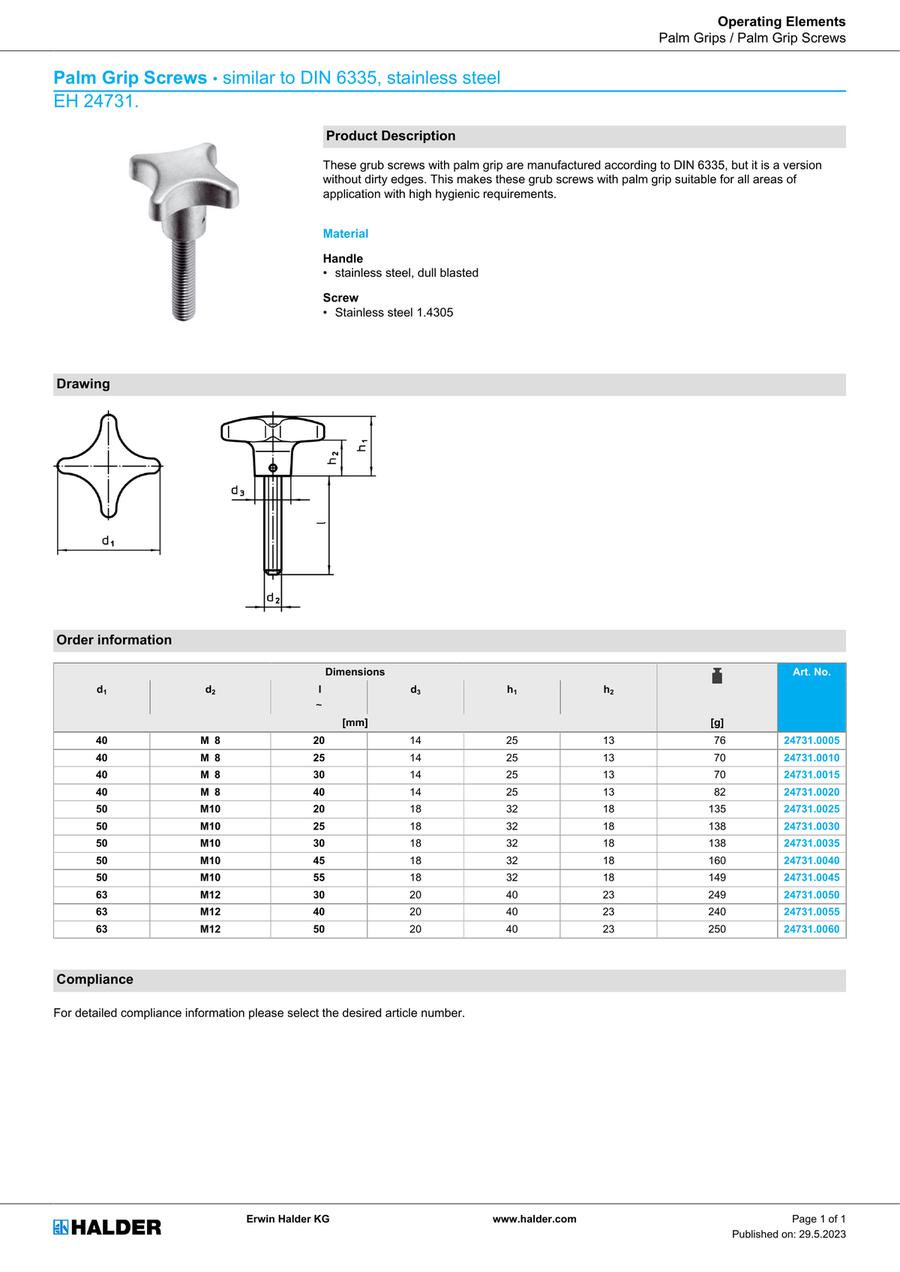

Palm Grip Screws, Similar to DIN 6335, Stainless steel
Handle
- • stainless steel, dull blasted
Screw
- • Stainless steel 1.4305
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 24731.0005 |
| 24731.0010 |
| 24731.0015 |
| 24731.0020 |
| 24731.0025 |
| 24731.0030 |
| 24731.0035 |
| 24731.0040 |
| 24731.0045 |
| 24731.0050 |
| 24731.0055 |
| 24731.0060 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | d1 (mm) | d2 (mm) | d3 (mm) | l (mm) | h1 (mm) | h2 (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.17 € | 1 | 3 Days | 40 | M 8 | 14 | ~20 | 25 | 13 | 76 | |||
16.41 € | 1 | 3 Days | 40 | M 8 | 14 | ~25 | 25 | 13 | 70 | |||
16.47 € | 1 | 3 Days | 40 | M 8 | 14 | ~30 | 25 | 13 | 70 | |||
16.66 € | 1 | 3 Days | 40 | M 8 | 14 | ~40 | 25 | 13 | 82 | |||
19.81 € | 1 | 3 Days | 50 | M10 | 18 | ~20 | 32 | 18 | 135 | |||
19.88 € | 1 | 3 Days | 50 | M10 | 18 | ~25 | 32 | 18 | 138 | |||
19.98 € | 1 | 3 Days | 50 | M10 | 18 | ~30 | 32 | 18 | 138 | |||
20.28 € | 1 | 3 Days | 50 | M10 | 18 | ~45 | 32 | 18 | 160 | |||
20.47 € | 1 | 3 Days | 50 | M10 | 18 | ~55 | 32 | 18 | 149 | |||
27.67 € | 1 | 3 Days | 63 | M12 | 20 | ~30 | 40 | 23 | 249 | |||
27.90 € | 1 | 3 Days | 63 | M12 | 20 | ~40 | 40 | 23 | 240 | |||
28.60 € | 1 | 3 Days | 63 | M12 | 20 | ~50 | 40 | 23 | 250 |
Loading...
Basic information
| Main Body Type | Butterfly Shaped | Main Body Material | Stainless Steel | Screw | Stainless steel 1.4305 |
|---|---|---|---|---|---|
| Handle | Stainless steel, dull blasted |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
