Configure
- d1(mm)
- 8
- 8.3
- 10
- 12
- d2(mm)
- 9.35
- 9.65
- 11.7
- 14.2
- l1(mm)
- 35
- 50
- l2(mm)
- 8.75
- 10.1
- 10.9
- l4(mm)
- 36
- 36.5
- Nominal diameter(inch)
- 8
- 8.
- 10
- 12
- d5 min.(mm)
- 9.85
- 10.05
- 12.2
- 14.7
- Location hole [H11](mm)
- 8
- 8.3
- 10
- 12
- Est. shipping days
- All
- Within 4 working days

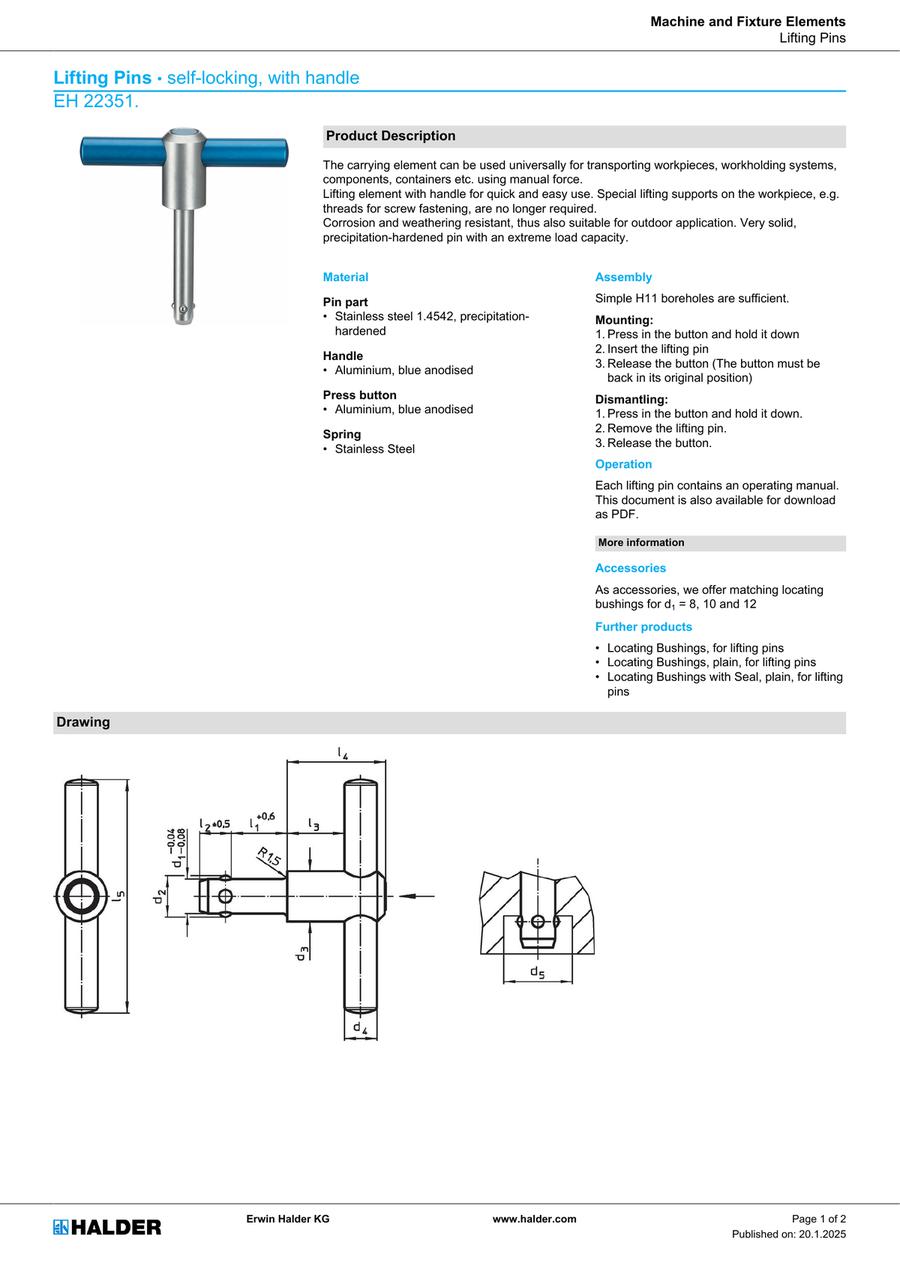

Lifting Pins, self-locking, with handle
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
120.42 € ( 143.30 € ) | 4 working days |
120.42 € ( 143.30 € ) | 4 working days |
125.86 € ( 149.77 € ) | 4 working days |
134.30 € ( 159.82 € ) | 4 working days |
More Information
Basic information
The carrying element can be used universally for transporting workpieces, workholding systems, loudspeaker boxes, containers etc. using manual force.
Corrosion and weathering resistant, thus also suitable for outdoor application. Very solid, precipitation-hardened pin with an extreme load capacity.
