Clamping levers, die-cast zinc with external thread and clamping force intensifier, threaded insert black oxidised steel (06460-10)

Configure

Handle length(mm)
- 65
- 80
- 95
- 110
Main colour
A1=Handle length(mm)
- 77.5
- 95
- 110
- 127.5
B(mm)
- 10
- 11.2
- 13.2
- 15.4
D2(mm)
- 25
- 30
- 35
H(mm)
- 38.5
- 47
- 53.1
- 59.1
H2(mm)
- 27.7
- 33.9
- 37.2
- 41.9
H3=handle height(mm)
- 52.6
- 64.6
- 72.8
- 83
H4(mm)
- 55.6
- 68.6
- 77.3
- 87.5
L=thread length(mm)
- 10
- 15
- 20
- 30
- 40
- 50
Size
- 2
- 3
- 4
- 5
X=thread
- M8
- M10
- M12
Est. shipping days
- All
- Within 4 working days

Clamping levers, die-cast zinc with external thread and clamping force intensifier, threaded insert black oxidised steel (06460-10)

Catalog

Part number:

Still undefined. 48 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Handle length

(mm)

Main colour

A1=Handle length

(mm)

H3=handle height

(mm)

L=thread length

(mm)

Size

X=thread

Minimum order quantity

65	Orange RAL 2004	77.5	10	25	38.5	27.7	52.6	55.6	10	2	M8	1 pieces
65	Orange RAL 2004	77.5	10	25	38.5	27.7	52.6	55.6	20	2	M8	1 pieces
65	Orange RAL 2004	77.5	10	25	38.5	27.7	52.6	55.6	30	2	M8	1 pieces
65	Orange RAL 2004	77.5	10	25	38.5	27.7	52.6	55.6	40	2	M8	1 pieces
65	Silver metallic	77.5	10	25	38.5	27.7	52.6	55.6	10	2	M8	1 pieces
65	Silver metallic	77.5	10	25	38.5	27.7	52.6	55.6	20	2	M8	1 pieces
65	Silver metallic	77.5	10	25	38.5	27.7	52.6	55.6	30	2	M8	1 pieces
65	Silver metallic	77.5	10	25	38.5	27.7	52.6	55.6	40	2	M8	1 pieces
65	Ruby red	77.5	10	25	38.5	27.7	52.6	55.6	10	2	M8	1 pieces
65	Ruby red	77.5	10	25	38.5	27.7	52.6	55.6	20	2	M8	1 pieces
65	Ruby red	77.5	10	25	38.5	27.7	52.6	55.6	30	2	M8	1 pieces
65	Ruby red	77.5	10	25	38.5	27.7	52.6	55.6	40	2	M8	1 pieces
80	Orange RAL 2004	95	11.2	30	47	33.9	64.6	68.6	15	3	M10	1 pieces
80	Orange RAL 2004	95	11.2	30	47	33.9	64.6	68.6	30	3	M10	1 pieces
80	Orange RAL 2004	95	11.2	30	47	33.9	64.6	68.6	40	3	M10	1 pieces
80	Orange RAL 2004	95	11.2	30	47	33.9	64.6	68.6	50	3	M10	1 pieces
80	Silver metallic	95	11.2	30	47	33.9	64.6	68.6	15	3	M10	1 pieces
80	Silver metallic	95	11.2	30	47	33.9	64.6	68.6	30	3	M10	1 pieces
80	Silver metallic	95	11.2	30	47	33.9	64.6	68.6	40	3	M10	1 pieces
80	Silver metallic	95	11.2	30	47	33.9	64.6	68.6	50	3	M10	1 pieces
80	Ruby red	95	11.2	30	47	33.9	64.6	68.6	15	3	M10	1 pieces
80	Ruby red	95	11.2	30	47	33.9	64.6	68.6	30	3	M10	1 pieces
80	Ruby red	95	11.2	30	47	33.9	64.6	68.6	40	3	M10	1 pieces
80	Ruby red	95	11.2	30	47	33.9	64.6	68.6	50	3	M10	1 pieces
95	Orange RAL 2004	110	13.2	30	53.1	37.2	72.8	77.3	20	4	M10	1 pieces
95	Orange RAL 2004	110	13.2	30	53.1	37.2	72.8	77.3	30	4	M10	1 pieces
95	Orange RAL 2004	110	13.2	30	53.1	37.2	72.8	77.3	40	4	M10	1 pieces
95	Orange RAL 2004	110	13.2	30	53.1	37.2	72.8	77.3	50	4	M10	1 pieces
95	Silver metallic	110	13.2	30	53.1	37.2	72.8	77.3	20	4	M10	1 pieces
95	Silver metallic	110	13.2	30	53.1	37.2	72.8	77.3	30	4	M10	1 pieces
95	Silver metallic	110	13.2	30	53.1	37.2	72.8	77.3	40	4	M10	1 pieces
95	Silver metallic	110	13.2	30	53.1	37.2	72.8	77.3	50	4	M10	1 pieces
95	Ruby red	110	13.2	30	53.1	37.2	72.8	77.3	20	4	M10	1 pieces
95	Ruby red	110	13.2	30	53.1	37.2	72.8	77.3	30	4	M10	1 pieces
95	Ruby red	110	13.2	30	53.1	37.2	72.8	77.3	40	4	M10	1 pieces
95	Ruby red	110	13.2	30	53.1	37.2	72.8	77.3	50	4	M10	1 pieces
110	Orange RAL 2004	127.5	15.4	35	59.1	41.9	83	87.5	20	5	M12	1 pieces
110	Orange RAL 2004	127.5	15.4	35	59.1	41.9	83	87.5	30	5	M12	1 pieces
110	Orange RAL 2004	127.5	15.4	35	59.1	41.9	83	87.5	40	5	M12	1 pieces
110	Orange RAL 2004	127.5	15.4	35	59.1	41.9	83	87.5	50	5	M12	1 pieces
110	Silver metallic	127.5	15.4	35	59.1	41.9	83	87.5	20	5	M12	1 pieces
110	Silver metallic	127.5	15.4	35	59.1	41.9	83	87.5	30	5	M12	1 pieces
110	Silver metallic	127.5	15.4	35	59.1	41.9	83	87.5	40	5	M12	1 pieces
110	Silver metallic	127.5	15.4	35	59.1	41.9	83	87.5	50	5	M12	1 pieces
110	Ruby red	127.5	15.4	35	59.1	41.9	83	87.5	20	5	M12	1 pieces
110	Ruby red	127.5	15.4	35	59.1	41.9	83	87.5	30	5	M12	1 pieces
110	Ruby red	127.5	15.4	35	59.1	41.9	83	87.5	40	5	M12	1 pieces
110	Ruby red	127.5	15.4	35	59.1	41.9	83	87.5	50	5	M12	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
26.22 € ( 31.20 € )	4 working days
25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
26.22 € ( 31.20 € )	4 working days
25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
25.82 € ( 30.73 € )	4 working days
26.22 € ( 31.20 € )	4 working days
26.92 € ( 32.03 € )	4 working days
26.92 € ( 32.03 € )	4 working days
27.41 € ( 32.62 € )	4 working days
27.41 € ( 32.62 € )	4 working days
26.92 € ( 32.03 € )	4 working days
26.92 € ( 32.03 € )	4 working days
27.41 € ( 32.62 € )	4 working days
27.41 € ( 32.62 € )	4 working days
26.92 € ( 32.03 € )	4 working days
26.92 € ( 32.03 € )	4 working days
27.41 € ( 32.62 € )	4 working days
27.41 € ( 32.62 € )	4 working days
29.10 € ( 34.63 € )	4 working days
29.10 € ( 34.63 € )	4 working days
30.29 € ( 36.05 € )	4 working days
30.29 € ( 36.05 € )	4 working days
29.10 € ( 34.63 € )	4 working days
29.10 € ( 34.63 € )	4 working days
30.29 € ( 36.05 € )	4 working days
30.29 € ( 36.05 € )	4 working days
29.10 € ( 34.63 € )	4 working days
29.10 € ( 34.63 € )	4 working days
30.29 € ( 36.05 € )	4 working days
30.29 € ( 36.05 € )	4 working days
33.51 € ( 39.88 € )	4 working days
33.51 € ( 39.88 € )	4 working days
35.36 € ( 42.08 € )	4 working days
35.36 € ( 42.08 € )	4 working days
33.51 € ( 39.88 € )	4 working days
33.51 € ( 39.88 € )	4 working days
35.36 € ( 42.08 € )	4 working days
35.36 € ( 42.08 € )	4 working days
33.51 € ( 39.88 € )	4 working days
33.51 € ( 39.88 € )	4 working days
35.36 € ( 42.08 € )	4 working days
35.36 € ( 42.08 € )	4 working days

More Information

Basic information

Basic information

· Significant increase of the clamping force with the same tightening torque

· High quality axial needle bearing with high load rating and long service life

· The component surface is protected by the stationary lower ring

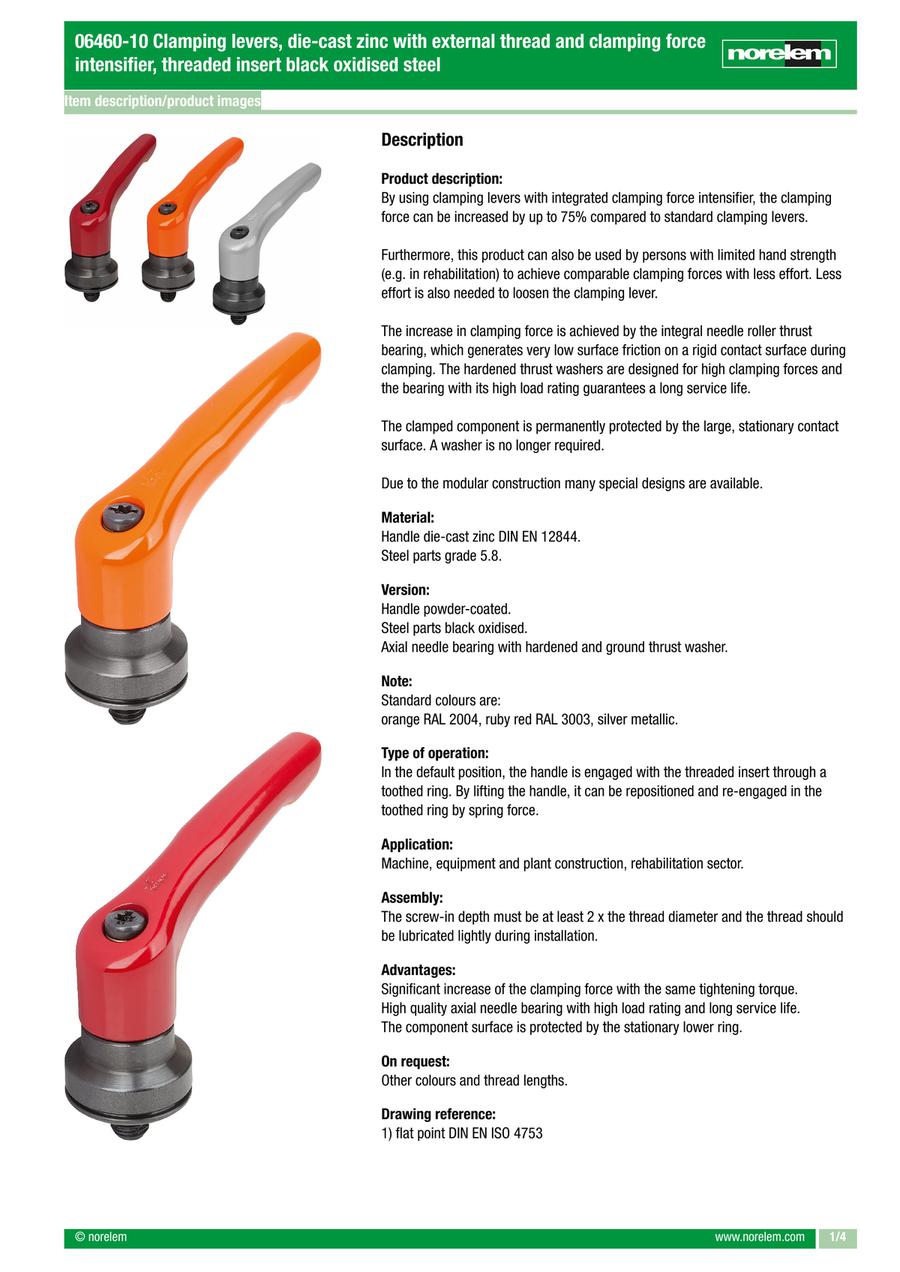

Catalog
