Configure
- Handle length(mm)
- 75
- 100
- 128
- D(mm)
- 25
- 33
- 41
- D1(mm)
- 8
- 10
- 12
- D2(mm)
- 20
- 25
- 30
- H(mm)
- 14
- 17
- 20
- H1(mm)
- 22
- 27
- 36
- H2(mm)
- 8.5
- 10
- 11.5
- Size
- 1
- 2
- 3
- X=bore(mm)
- 6
- 8
- 10
- 12
- 16
- 20
- 24
- Est. shipping days
- All
- Within 4 working days

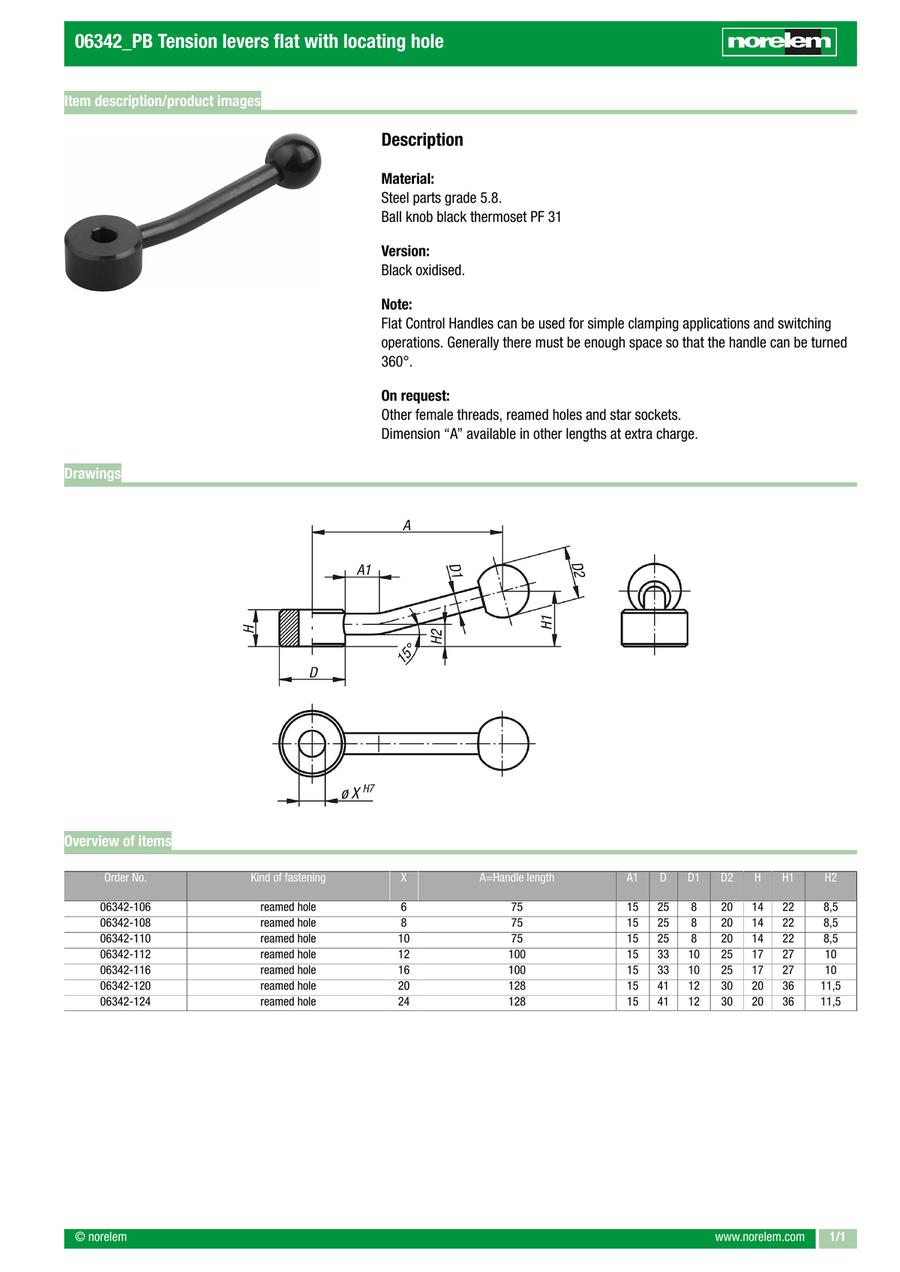

Tension levers flat with locating hole (06342)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
16.53 € ( 19.67 € ) | 4 working days |
16.53 € ( 19.67 € ) | 4 working days |
16.53 € ( 19.67 € ) | 4 working days |
19.60 € ( 23.32 € ) | 4 working days |
19.60 € ( 23.32 € ) | 4 working days |
24.95 € ( 29.69 € ) | 4 working days |
24.95 € ( 29.69 € ) | 4 working days |
More Information
Basic information
· The clamping lever represents reliability and a high level of stability
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Version: reamed hole
· Flat handle for tight spots
