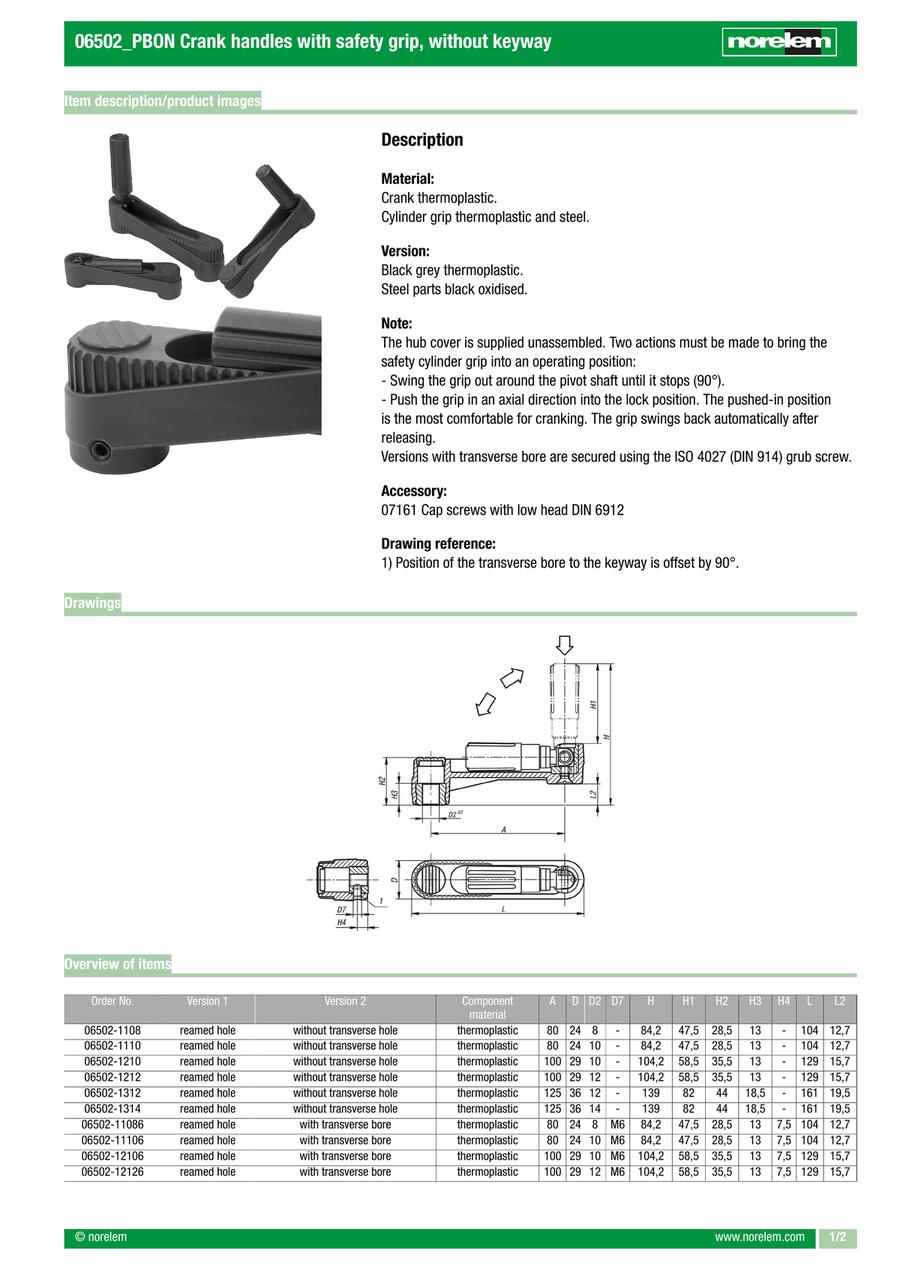

Crank handles with safety grip, without keyway (06502)
· Application sectors: machine, plant, equipment construction and measuring devices
· Swivels back automatically after releasing
· Version: without keyway
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06502-1108 |
| 06502-11086 |
| 06502-1110 |
| 06502-11106 |
| 06502-1210 |
| 06502-1212 |
| 06502-12106 |
| 06502-12126 |
| 06502-1312 |
| 06502-1314 |
| 06502-13126 |
| 06502-13146 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Component colour | Size | Version 2 | L=Length (mm) | L2 (mm) | D (mm) | D2=Fastening hole (mm) | D7 (mm) | A=Centre distance (mm) | H=Height (mm) | H1=Handle height (mm) | H2 (mm) | H3 (mm) | H4 (mm) | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
49.25 € | 1 | 4 Days | Black grey | 1 | Without transverse hole | 104 | 12.7 | 24 | 8 | - | 80 | 84.2 | 47.5 | 28.5 | 13 | - | - | 0.0948 | ||
53.25 € | 1 | 4 Days | Black grey RAL 7021 | 1 | With transverse bore | 104 | 12.7 | 24 | 8 | M6 | 80 | 84.2 | 47.5 | 28.5 | 13 | 7.5 | No | 0.0950 | ||
49.25 € | 1 | 4 Days | Black grey | 1 | Without transverse hole | 104 | 12.7 | 24 | 10 | - | 80 | 84.2 | 47.5 | 28.5 | 13 | - | - | 0.0948 | ||
53.25 € | 1 | 4 Days | Black grey RAL 7021 | 1 | With transverse bore | 104 | 12.7 | 24 | 10 | M6 | 80 | 84.2 | 47.5 | 28.5 | 13 | 7.5 | No | 0.0950 | ||
49.64 € | 1 | 4 Days | Black grey | 2 | Without transverse hole | 129 | 15.7 | 29 | 10 | - | 100 | 104.2 | 58.5 | 35.5 | 13 | - | - | 0.1270 | ||
49.64 € | 1 | 4 Days | Black grey | 2 | Without transverse hole | 129 | 15.7 | 29 | 12 | - | 100 | 104.2 | 58.5 | 35.5 | 13 | - | - | 0.1573 | ||
53.64 € | 1 | 4 Days | Black grey RAL 7021 | 2 | With transverse bore | 129 | 15.7 | 29 | 10 | M6 | 100 | 104.2 | 58.5 | 35.5 | 13 | 7.5 | No | 0.1270 | ||
53.64 € | 1 | 4 Days | Black grey RAL 7021 | 2 | With transverse bore | 129 | 15.7 | 29 | 12 | M6 | 100 | 104.2 | 58.5 | 35.5 | 13 | 7.5 | No | 0.1570 | ||
50.52 € | 1 | 4 Days | Black grey | 3 | Without transverse hole | 161 | 19.5 | 36 | 12 | - | 125 | 139 | 82 | 44 | 18.5 | - | - | 0.3048 | ||
50.52 € | 1 | 4 Days | Black grey | 3 | Without transverse hole | 161 | 19.5 | 36 | 14 | - | 125 | 139 | 82 | 44 | 18.5 | - | - | 0.3005 | ||
54.52 € | 1 | 4 Days | Black grey RAL 7021 | 3 | With transverse bore | 161 | 19.5 | 36 | 12 | M6 | 125 | 139 | 82 | 44 | 18.5 | 7.5 | No | 0.3050 | ||
54.52 € | 1 | 4 Days | Black grey RAL 7021 | 3 | With transverse bore | 161 | 19.5 | 36 | 14 | M6 | 125 | 139 | 82 | 44 | 18.5 | 7.5 | No | 0.3000 |
Loading...
Basic information
| Handwheel Type | Revolving Crank Handles | Main material | Thermoplastic | Main colour | Black grey |
|---|---|---|---|---|---|
| Component material | Thermoplastic | Version 1 | Reamed hole | Form | B |
| Item | Crank handle | Form definition | Safety grip | Product type | Safety grip |
| RoHS | Yes |
Configure
Basic Attributes
-
Component colour
- Black grey RAL 7021
- Black grey
-
Size
- 1
- 2
- 3
-
Version 2
- With transverse bore
- Without transverse hole
-
L=Length(mm)
-
L2(mm)
-
D(mm)
- 24
- 29
- 36
-
D2=Fastening hole(mm)
-
D7(mm)
- M6
-
A=Centre distance(mm)
-
H=Height(mm)
-
H1=Handle height(mm)
-
H2(mm)
-
H3(mm)
-
H4(mm)
- 7.5
-
PL Edelstahl
- No
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
