NORELEM

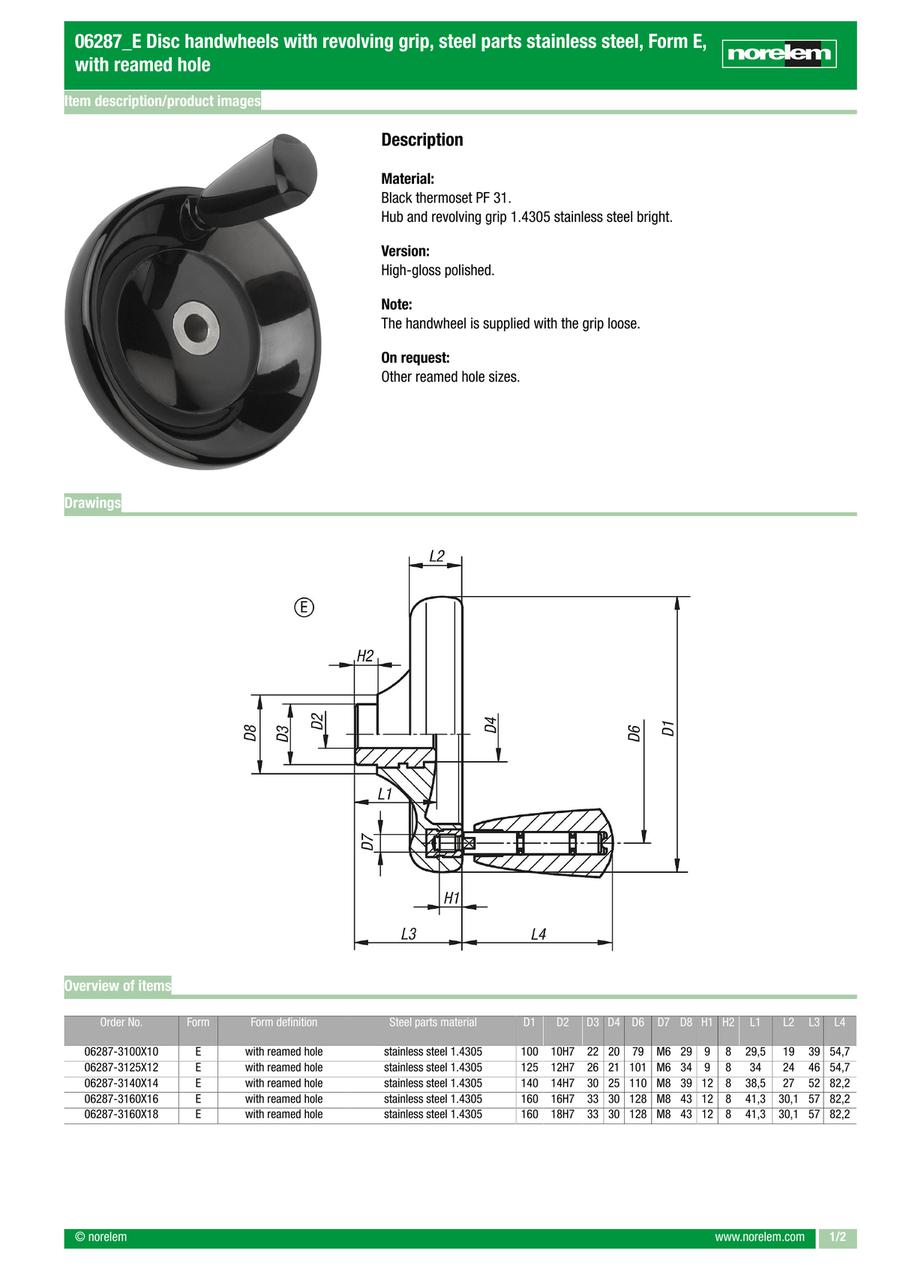

Disc handwheels with revolving grip, steel parts stainless steel, Form E, with reamed hole (06287)

Disc handwheels with revolving grip, steel parts stainless steel, Form E, with reamed hole (06287)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06287-3100X10
    06287-3125X12
    06287-3140X14
    06287-3160X16
    06287-3160X18

    Outside diameter

    (Ø)

    Size

    L1

    (mm)

    L2

    (mm)

    L3=height

    (mm)

    L4

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    D4

    (mm)

    D6

    (mm)

    D7

    (mm)

    D8

    (mm)

    H1

    (mm)

    		Minimum order quantity
    100
    1
    29.5
    19
    39
    54.7
    10H7
    22
    20
    79
    M6
    29
    9
    1 pieces
    125
    2
    34
    24
    46
    54.7
    12H7
    26
    21
    101
    M6
    34
    9
    1 pieces
    140
    3
    38.5
    27
    52
    82.2
    14H7
    30
    25
    110
    M8
    39
    12
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    16H7
    33
    30
    128
    M8
    43
    12
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    18H7
    33
    30
    128
    M8
    43
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    57.35 €
    ( 68.25 € )
    4 working days
    63.11 €
    ( 75.10 € )
    4 working days
    70.39 €
    ( 83.76 € )
    4 working days
    80.51 €
    ( 95.81 € )
    4 working days
    80.51 €
    ( 95.81 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, equipment construction and measuring devices

    · For opening, closing and operating valves in fittings, machine tools

    · Form E: with reamed hole

    · Hub, steel or stainless steel
