NORELEM

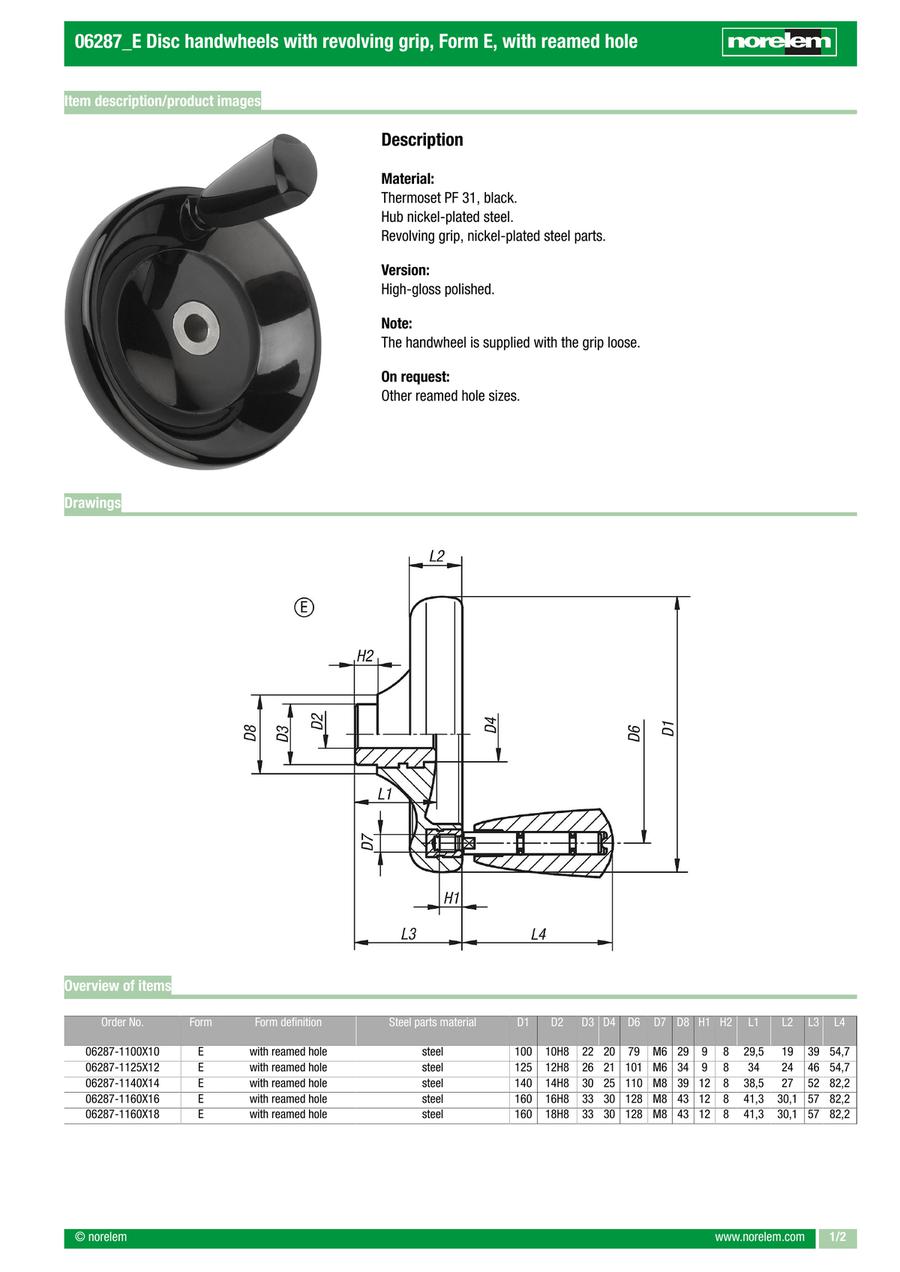

Disc handwheels with revolving grip, Form E, with reamed hole (06287)

Disc handwheels with revolving grip, Form E, with reamed hole (06287)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06287-1100X10
    06287-1125X12
    06287-1140X14
    06287-1160X16
    06287-1160X18

    Outside diameter

    (Ø)

    Size

    L1

    (mm)

    L2

    (mm)

    L3=height

    (mm)

    L4

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    D4

    (mm)

    D6

    (mm)

    D7

    (mm)

    D8

    (mm)

    H1

    (mm)

    		Minimum order quantity
    100
    1
    29.5
    19
    39
    54.7
    10H8
    22
    20
    79
    M6
    29
    9
    1 pieces
    125
    2
    34
    24
    46
    54.7
    12H8
    26
    21
    101
    M6
    34
    9
    1 pieces
    140
    3
    38.5
    27
    52
    82.2
    14H8
    30
    25
    110
    M8
    39
    12
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    16H8
    33
    30
    128
    M8
    43
    12
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    18H8
    33
    30
    128
    M8
    43
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    29.74 €
    ( 35.39 € )
    4 working days
    37.25 €
    ( 44.33 € )
    4 working days
    42.90 €
    ( 51.05 € )
    4 working days
    55.42 €
    ( 65.95 € )
    4 working days
    55.42 €
    ( 65.95 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, equipment construction and measuring devices

    · For opening, closing and operating valves in fittings, machine tools

    · Form E: with reamed hole

    · Hub, steel or stainless steel
