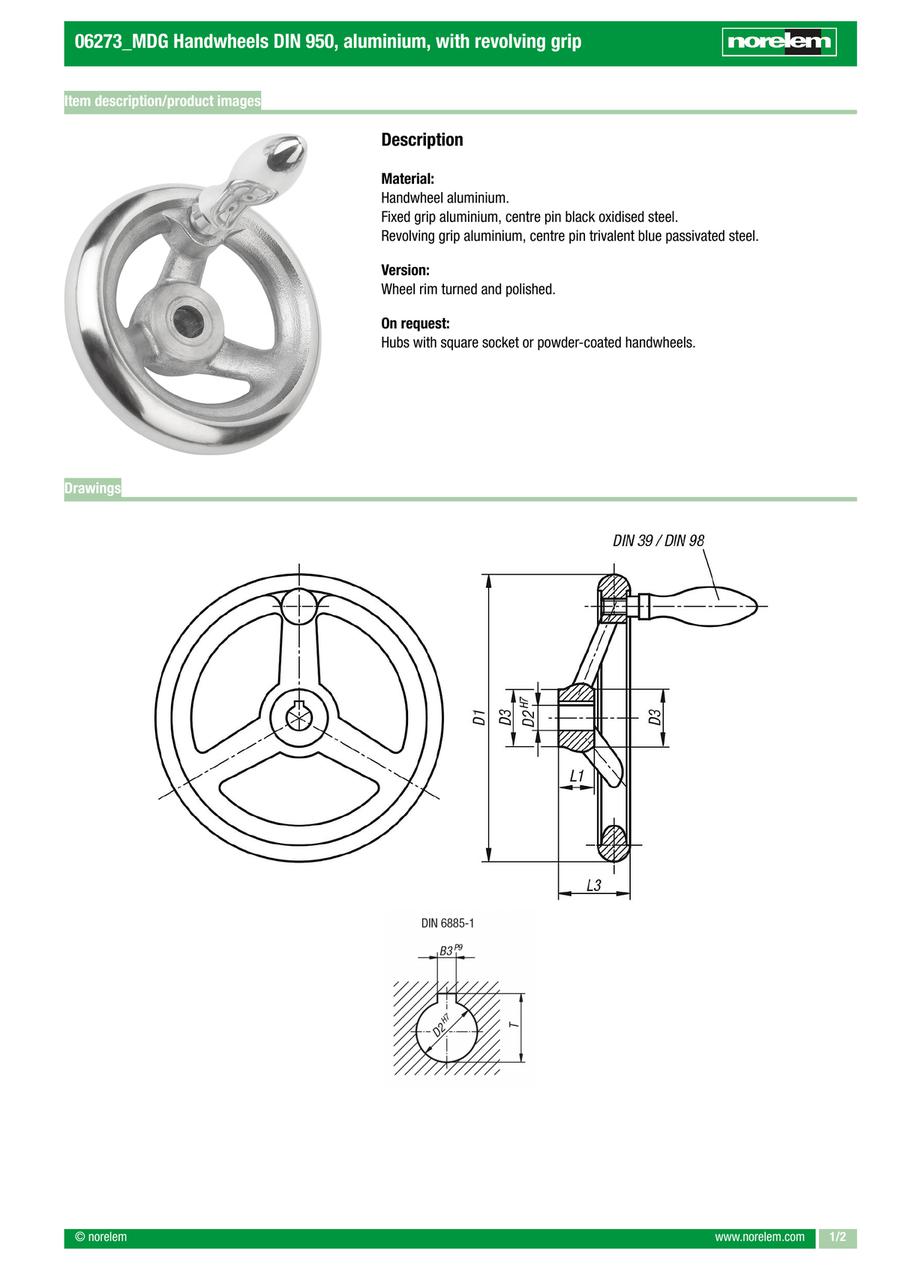

Handwheels DIN 950 aluminium, with revolving grip (06273)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· stable and durable
· Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Version 1 | B3 (mm) | D2=Fastening hole (mm) | D3 (mm) | L1 (mm) | L3=height (mm) | Revolving grip (DIN 98 Form E) (mm) | T (mm) | Number of spokes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23.47 € | 1 | 4 Days | 80 | reamed hole | - | 10H7 | 25 | 16 | 29 | ø16 x M6 x 54.5 | - | 3 | ||
23.47 € | 1 | 4 Days | 80 | reamed hole | - | 12H7 | 25 | 16 | 29 | ø16 x M6 x 54.5 | - | 3 | ||
24.45 € | 1 | 4 Days | 100 | reamed hole | - | 10H7 | 29 | 17 | 33 | ø16 x M6 x 54.5 | - | 3 | ||
24.45 € | 1 | 4 Days | 100 | reamed hole | - | 12H7 | 29 | 17 | 33 | ø16 x M6 x 54.5 | - | 3 | ||
29.75 € | 1 | 4 Days | 125 | reamed hole | - | 12H7 | 31 | 18 | 36 | ø20 x M8 x 67 | - | 3 | ||
29.75 € | 1 | 4 Days | 125 | reamed hole | - | 14H7 | 31 | 18 | 36 | ø20 x M8 x 67 | - | 3 | ||
33.27 € | 1 | 4 Days | 140 | reamed hole | - | 14H7 | 36 | 19 | 39 | ø20 x M8 x 67 | - | 3 | ||
33.27 € | 1 | 4 Days | 140 | reamed hole | - | 16H7 | 36 | 19 | 39 | ø20 x M8 x 67 | - | 3 | ||
38.58 € | 1 | 4 Days | 160 | reamed hole | - | 14H7 | 36 | 20 | 40 | ø25 x M10 x 83 | - | 3 | ||
38.58 € | 1 | 4 Days | 160 | reamed hole | - | 16H7 | 36 | 20 | 40 | ø25 x M10 x 83 | - | 3 | ||
46.95 € | 1 | 4 Days | 180 | reamed hole | - | 16H7 | 37 | 22 | 43 | ø25 x M10 x 83 | - | 3 | ||
46.95 € | 1 | 4 Days | 180 | reamed hole | - | 18H7 | 37 | 22 | 43 | ø25 x M10 x 83 | - | 3 | ||
50.09 € | 1 | 4 Days | 200 | reamed hole | - | 18H7 | 43 | 24 | 45 | ø25 x M10 x 83 | - | 3 | ||
50.09 € | 1 | 4 Days | 200 | reamed hole | - | 22H7 | 43 | 24 | 45 | ø25 x M10 x 83 | - | 3 | ||
76.04 € | 1 | 4 Days | 250 | reamed hole | - | 22H7 | 49 | 28 | 50 | ø32 x M12 x 105.5 | - | 5 | ||
76.04 € | 1 | 4 Days | 250 | reamed hole | - | 26H7 | 49 | 28 | 50 | ø32 x M12 x 105.5 | - | 5 | ||
109.99 € | 1 | 4 Days | 315 | reamed hole | - | 26H7 | 54 | 33 | 56 | ø32 x M12 x 105.5 | - | 5 | ||
109.99 € | 1 | 4 Days | 315 | reamed hole | - | 30H7 | 54 | 33 | 56 | ø32 x M12 x 105.5 | - | 5 | ||
183.33 € | 1 | 4 Days | 400 | reamed hole | - | 30H7 | 65 | 38 | 63 | ø36 x M16 x 117 | - | 5 | ||
183.33 € | 1 | 4 Days | 400 | reamed hole | - | 34H7 | 65 | 38 | 63 | ø36 x M16 x 117 | - | 5 | ||
283.67 € | 1 | 4 Days | 500 | reamed hole | - | 34H7 | 79 | 45 | 72 | ø36 x M16 x 117 | - | 5 | ||
283.67 € | 1 | 4 Days | 500 | reamed hole | - | 40H7 | 79 | 45 | 72 | ø36 x M16 x 117 | - | 5 | ||
25.45 € | 1 | 4 Days | 80 | reamed hole with slot | 3 | 10H7 | 25 | 16 | 29 | ø16 x M6 x 54.5 | 11.4 | 3 | ||
25.45 € | 1 | 4 Days | 80 | reamed hole with slot | 4 | 12H7 | 25 | 16 | 29 | ø16 x M6 x 54.5 | 13.8 | 3 | ||
27.20 € | 1 | 4 Days | 100 | reamed hole with slot | 3 | 10H7 | 29 | 17 | 33 | ø16 x M6 x 54.5 | 11.4 | 3 | ||
27.20 € | 1 | 4 Days | 100 | reamed hole with slot | 4 | 12H7 | 29 | 17 | 33 | ø16 x M6 x 54.5 | 13.8 | 3 | ||
32.68 € | 1 | 4 Days | 125 | reamed hole with slot | 4 | 12H7 | 31 | 18 | 36 | ø20 x M8 x 67 | 13.8 | 3 | ||
32.68 € | 1 | 4 Days | 125 | reamed hole with slot | 5 | 14H7 | 31 | 18 | 36 | ø20 x M8 x 67 | 16.3 | 3 | ||
36.43 € | 1 | 4 Days | 140 | reamed hole with slot | 5 | 14H7 | 36 | 19 | 39 | ø20 x M8 x 67 | 16.3 | 3 | ||
36.43 € | 1 | 4 Days | 140 | reamed hole with slot | 5 | 16H7 | 36 | 19 | 39 | ø20 x M8 x 67 | 18.3 | 3 | ||
40.63 € | 1 | 4 Days | 160 | reamed hole with slot | 5 | 14H7 | 36 | 20 | 40 | ø25 x M10 x 83 | 16.3 | 3 | ||
40.63 € | 1 | 4 Days | 160 | reamed hole with slot | 5 | 16H7 | 36 | 20 | 40 | ø25 x M10 x 83 | 18.3 | 3 | ||
49.29 € | 1 | 4 Days | 180 | reamed hole with slot | 5 | 16H7 | 37 | 22 | 43 | ø25 x M10 x 83 | 18.3 | 3 | ||
49.29 € | 1 | 4 Days | 180 | reamed hole with slot | 6 | 18H7 | 37 | 22 | 43 | ø25 x M10 x 83 | 20.8 | 3 | ||
52.56 € | 1 | 4 Days | 200 | reamed hole with slot | 6 | 18H7 | 43 | 24 | 45 | ø25 x M10 x 83 | 20.8 | 3 | ||
52.56 € | 1 | 4 Days | 200 | reamed hole with slot | 6 | 22H7 | 43 | 24 | 45 | ø25 x M10 x 83 | 24.8 | 3 | ||
78.83 € | 1 | 4 Days | 250 | reamed hole with slot | 6 | 22H7 | 49 | 28 | 50 | ø32 x M12 x 105.5 | 24.8 | 5 | ||
78.83 € | 1 | 4 Days | 250 | reamed hole with slot | 8 | 26H7 | 49 | 28 | 50 | ø32 x M12 x 105.5 | 29.3 | 5 | ||
113.08 € | 1 | 4 Days | 315 | reamed hole with slot | 8 | 26H7 | 54 | 33 | 56 | ø32 x M12 x 105.5 | 29.3 | 5 | ||
113.08 € | 1 | 4 Days | 315 | reamed hole with slot | 8 | 30H7 | 54 | 33 | 56 | ø32 x M12 x 105.5 | 33.3 | 5 | ||
186.84 € | 1 | 4 Days | 400 | reamed hole with slot | 8 | 30H7 | 65 | 38 | 63 | ø36 x M16 x 117 | 33.3 | 5 | ||
186.84 € | 1 | 4 Days | 400 | reamed hole with slot | 10 | 34H7 | 65 | 38 | 63 | ø36 x M16 x 117 | 37.3 | 5 | ||
291.53 € | 1 | 4 Days | 500 | reamed hole with slot | 10 | 34H7 | 79 | 45 | 72 | ø36 x M16 x 117 | 37.3 | 5 | ||
291.53 € | 1 | 4 Days | 500 | reamed hole with slot | 12 | 40H7 | 79 | 45 | 72 | ø36 x M16 x 117 | 43.3 | 5 |
Loading...
Basic information
| Handle, Material | Aluminum | Component material | aluminium | Version 2 | revolving |
|---|---|---|---|---|---|
| Grip | machine handle | DIN | DIN 950 |
