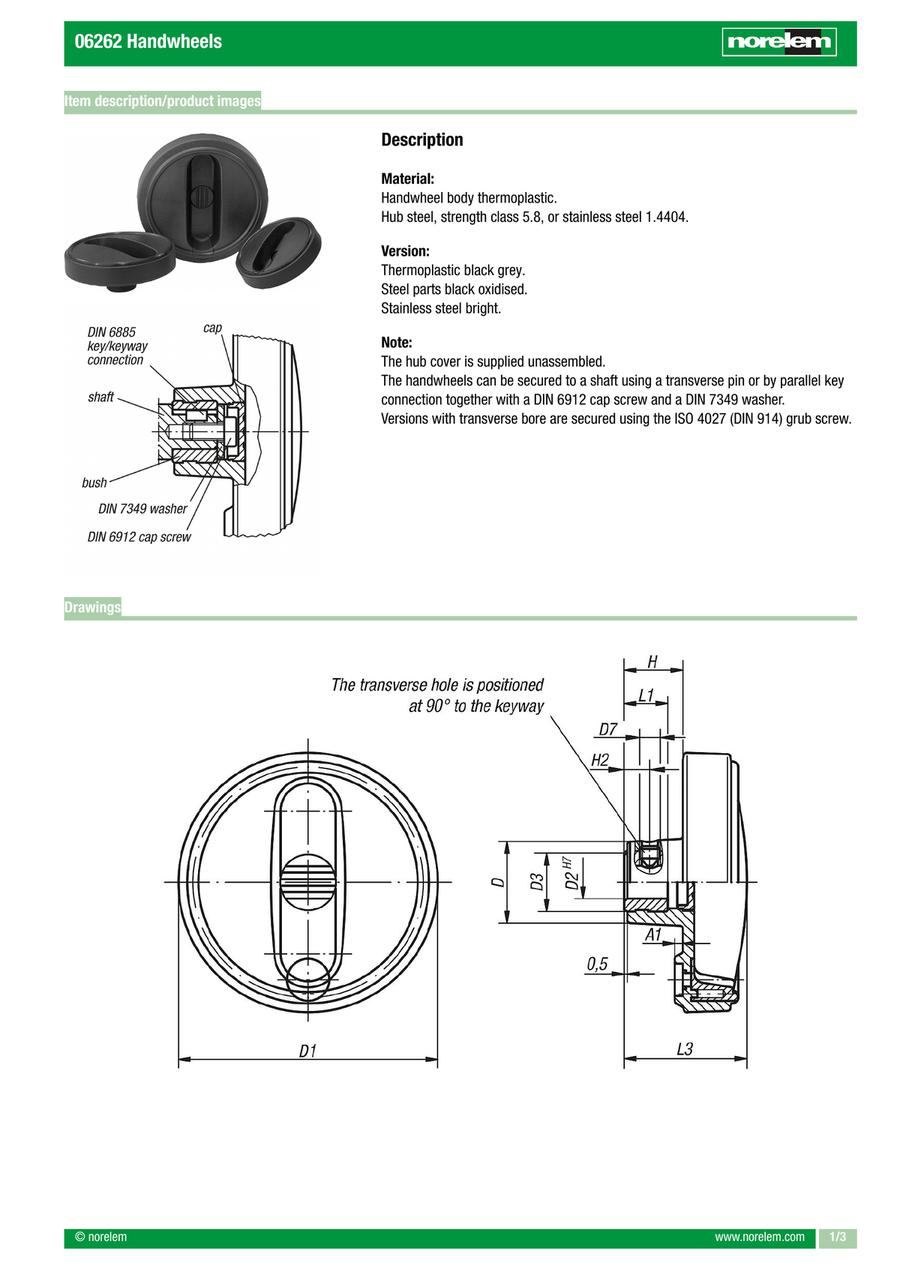

Handwheels (06262)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· The NOVO grip product range represents an attractive design and an easy-to-grip form
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Size | Version 1 | Version 2 | Form | Form definition | Form-Type | L1 (mm) | L3=height (mm) | D (mm) | D2=Fastening hole (mm) | D3 (mm) | D7 (mm) | A1 (mm) | B3 (mm) | H (mm) | H2 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11.74 € | 1 | 4 Days | 80 | 1 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 13 | 37.5 | 25 | 8H7 | 19 | - | 2.5 | - | 17.5 | - | - | ||
14.99 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 13 | 37.5 | 25 | 8H7 | 19 | - | 2.5 | 2 | 17.5 | - | 9 | ||
16.24 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 13 | 37.5 | 25 | 8H7 | 19 | M6 | 2.5 | - | 17.5 | 7.5 | - | ||
19.46 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 13 | 37.5 | 25 | 8H7 | 19 | M6 | 2.5 | 2 | 17.5 | 7.5 | 9 | ||
11.74 € | 1 | 4 Days | 80 | 1 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 13 | 37.5 | 25 | 10H7 | 19 | - | 2.5 | - | 17.5 | - | - | ||
14.99 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 13 | 37.5 | 25 | 10H7 | 19 | - | 2.5 | 3 | 17.5 | - | 11.4 | ||
16.24 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 13 | 37.5 | 25 | 10H7 | 19 | M6 | 2.5 | - | 17.5 | 7.5 | - | ||
19.46 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 13 | 37.5 | 25 | 10H7 | 19 | M6 | 2.5 | 3 | 17.5 | 7.5 | 11.4 | ||
11.74 € | 1 | 4 Days | 80 | 1 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 13 | 37.5 | 25 | 12H7 | 19 | - | 2.5 | - | 17.5 | - | - | ||
14.99 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 13 | 37.5 | 25 | 12H7 | 19 | - | 2.5 | 4 | 17.5 | - | 13.8 | ||
16.24 € | 1 | 4 Days | 80 | 1 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 13 | 37.5 | 25 | 12H7 | 19 | M6 | 2.5 | - | 17.5 | 7.5 | - | ||
19.46 € | 1 | 4 Days | 80 | 1 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 13 | 37.5 | 25 | 12H7 | 19 | M6 | 2.5 | 4 | 17.5 | 7.5 | 13.8 | ||
14.97 € | 1 | 4 Days | 100 | 2 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 13 | 44 | 28 | 10H7 | 19 | - | 3 | - | 20 | - | - | ||
18.11 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 13 | 44 | 28 | 10H7 | 19 | - | 3 | 3 | 20 | - | 11.4 | ||
19.44 € | 1 | 4 Days | 100 | 2 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 13 | 44 | 28 | 10H7 | 19 | M6 | 3 | - | 20 | 7.5 | - | ||
22.60 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 13 | 44 | 28 | 10H7 | 19 | M6 | 3 | 3 | 20 | 7.5 | 11.4 | ||
14.97 € | 1 | 4 Days | 100 | 2 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 13 | 44 | 28 | 12H7 | 19 | - | 3 | - | 20 | - | - | ||
18.11 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 13 | 44 | 28 | 12H7 | 19 | - | 3 | 4 | 20 | - | 13.8 | ||
19.44 € | 1 | 4 Days | 100 | 2 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 13 | 44 | 28 | 12H7 | 19 | M6 | 3 | - | 20 | 7.5 | - | ||
22.60 € | 1 | 4 Days | 100 | 2 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 13 | 44 | 28 | 12H7 | 19 | M6 | 3 | 4 | 20 | 7.5 | 13.8 | ||
20.89 € | 1 | 4 Days | 125 | 3 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 18.5 | 53 | 35 | 12H7 | 25 | - | 4 | - | 23.5 | - | - | ||
23.81 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 18.5 | 53 | 35 | 12H7 | 25 | - | 4 | 4 | 23.5 | - | 13.8 | ||
25.35 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 18.5 | 53 | 35 | 12H7 | 25 | M6 | 4 | - | 23.5 | 7.5 | - | ||
28.28 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 18.5 | 53 | 35 | 12H7 | 25 | M6 | 4 | 4 | 23.5 | 7.5 | 13.8 | ||
20.89 € | 1 | 4 Days | 125 | 3 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 18.5 | 53 | 35 | 14H7 | 25 | - | 4 | - | 23.5 | - | - | ||
23.81 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 18.5 | 53 | 35 | 14H7 | 25 | - | 4 | 5 | 23.5 | - | 16.3 | ||
25.35 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 18.5 | 53 | 35 | 14H7 | 25 | M6 | 4 | - | 23.5 | 7.5 | - | ||
28.28 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 18.5 | 53 | 35 | 14H7 | 25 | M6 | 4 | 5 | 23.5 | 7.5 | 16.3 | ||
20.89 € | 1 | 4 Days | 125 | 3 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 18.5 | 53 | 35 | 16H7 | 25 | - | 4 | - | 23.5 | - | - | ||
23.81 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 18.5 | 53 | 35 | 16H7 | 25 | - | 4 | 5 | 23.5 | - | 18.3 | ||
25.35 € | 1 | 4 Days | 125 | 3 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 18.5 | 53 | 35 | 16H7 | 25 | M6 | 4 | - | 23.5 | 7.5 | - | ||
28.28 € | 1 | 4 Days | 125 | 3 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 18.5 | 53 | 35 | 16H7 | 25 | M6 | 4 | 5 | 23.5 | 7.5 | 18.3 | ||
23.90 € | 1 | 4 Days | 160 | 4 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 18.5 | 64.5 | 45 | 14H7 | 25 | - | 5.6 | - | 28 | - | - | ||
26.68 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 18.5 | 64.5 | 45 | 14H7 | 25 | - | 5.6 | 5 | 28 | - | 16.3 | ||
28.39 € | 1 | 4 Days | 160 | 4 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 18.5 | 64.5 | 45 | 14H7 | 25 | M6 | 5.6 | - | 28 | 7.5 | - | ||
31.17 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 18.5 | 64.5 | 45 | 14H7 | 25 | M6 | 5.6 | 5 | 28 | 7.5 | 16.3 | ||
23.90 € | 1 | 4 Days | 160 | 4 | Reamed hole | Without transverse hole | E | With reamed hole | With reamed hole | 18.5 | 64.5 | 45 | 16H7 | 25 | - | 5.6 | - | 28 | - | - | ||
26.68 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | Without transverse hole | C | Reamed hole with slot | Reamed hole with slot | 18.5 | 64.5 | 45 | 16H7 | 25 | - | 5.6 | 5 | 28 | - | 18.3 | ||
28.39 € | 1 | 4 Days | 160 | 4 | Reamed hole | With transverse bore | A | Reamed hole with tranverse bore | Reamed hole with tranverse bore | 18.5 | 64.5 | 45 | 16H7 | 25 | M6 | 5.6 | - | 28 | 7.5 | - | ||
31.17 € | 1 | 4 Days | 160 | 4 | Reamed hole with slot | With transverse bore | B | Reamed hole with slot, with transverse bore | Reamed hole with slot, with transverse bore | 18.5 | 64.5 | 45 | 16H7 | 25 | M6 | 5.6 | 5 | 28 | 7.5 | 18.3 |
Loading...
Basic information
| Handwheel Type | Related Components | Main material | Thermoplastic | Main colour | Black grey |
|---|---|---|---|---|---|
| Component material | Steel | Component colour | Black oxidised | Grip | Without |
