Configure
- Body Material
- Travel S(mm)
- 8
- 9
- 12
- Length L(mm)
- 49.5
- 57.7
- 76
- Steel code
- 1.4034
- 1.4305
- Grade
- 5.8
- Surface finish body
- Size
- 1
- 2
- 3
- D=pin diameter(mm)
- 5
- 6
- 8
- D2(mm)
- 21
- 25
- 33
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- L1(mm)
- 17
- 20
- 26
- L2(mm)
- 10
- 11
- 14
- L3(mm)
- 15
- 17
- 23
- SW1(mm)
- 13
- 14
- 19
- SW2(mm)
- 17
- 19
- 24
- Spring force final pressure F2 approx.(N)
- 16
- 18
- 45
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

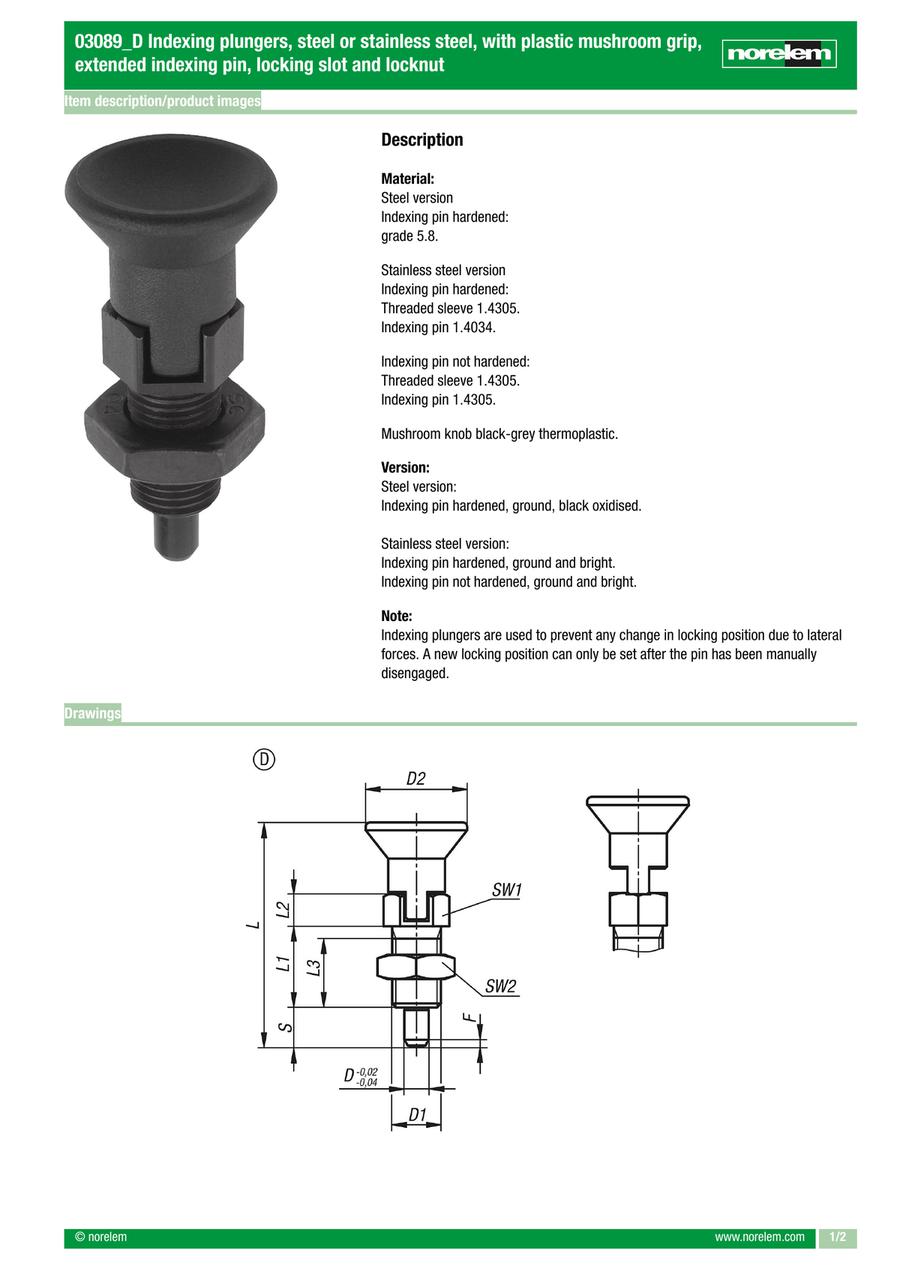

Indexing plungers, steel or stainless steel, with plastic mushroom grip, extended indexing pin, locking slot and locknut (03089)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
17.88 € ( 21.28 € ) | 4 working days |
21.06 € ( 25.06 € ) | 4 working days |
28.73 € ( 34.19 € ) | 4 working days |
17.88 € ( 21.28 € ) | 4 working days |
21.06 € ( 25.06 € ) | 4 working days |
28.73 € ( 34.19 € ) | 4 working days |
11.77 € ( 14.01 € ) | 4 working days |
13.14 € ( 15.64 € ) | 4 working days |
15.91 € ( 18.93 € ) | 4 working days |
More Information
Basic information
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Material: steel or stainless steel
