Indexing plungers, stainless steel with stainless steel mushroom grip and locking slot (03089)

Configure

Thread(mm)
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Length L(mm)
- 31.5
- 38.5
- 43.5
- 51.7
- 68
- 74
- 78
- 96
Steel code
- 1.4034
- 1.4305
- 1.4404
Surface finish body
Surface finish component
- Blasted
- Bright
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 12
- 15
- 17
- 20
- 26
- 28
- 32
L2(mm)
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 18
L3(mm)
- 10
- 13
- 15
- 17
- 23
- 25
- 28
SW1(mm)
- 8
- 10
- 13
- 14
- 19
- 22
- 27
Spring force final pressure F2 approx.(N)
- 6.5
- 10
- 12
- 12.5
- 14
- 14.5
- 15.5
- 30
- 34
- 35
- 39
- 40
- 46
Spring force initial pressure F1 approx.(N)
- 3
- 4
- 4.5
- 5
- 6
- 7
- 15
- 20
PL Edelstahl
- Yes
Est. shipping days
- All
- Within 4 working days

Indexing plungers, stainless steel with stainless steel mushroom grip and locking slot (03089)

Catalog

Part number:

Still undefined. 48 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Thread

(mm)

Travel S

(mm)

Length L

(mm)

Steel code

Surface finish body

Surface finish component

Size

D=pin diameter

(mm)

Fx30°

(mm)

SW1

(mm)

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

PL Edelstahl

Weight (ERP)

(kg)

Minimum order quantity

8x1	4	38.5	1.4034	Hardened	-	0	4	18	1	15	6	13	10	12	6	-	0.0207	1 pieces
10x1	5	43.5	1.4034	Hardened	-	1	5	21	1.3	17	7	15	13	12	5	-	0.0378	1 pieces
12x1.5	6	51.7	1.4034	Hardened	-	2	6	25	1.8	20	8	17	14	14	6	-	0.0536	1 pieces
16x1.5	8	68	1.4034	Hardened	-	3	8	33	2.3	26	10	23	19	35	15	-	0.1297	1 pieces
20x1.5	10	74	1.4034	Hardened	-	4	10	33	2.8	28	12	25	22	34	15	-	0.1839	1 pieces
20x1.5	12	78	1.4034	Hardened	-	4	12	33	2.8	28	14	25	22	39	15	-	0.0711	1 pieces
24x2	16	96	1.4034	Hardened	-	5	16	40	3.2	32	18	28	27	46	20	-	0.3428	1 pieces
6x0.75	3.5	31.5	1.4034	Hardened	-	9	3	14	0.8	12	5	10	8	10	4.5	-	0.0120	1 pieces
8x1	4	38.5	1.4404	Nickel-plated	Bright	0	4	18	1	15	6	13	10	15.5	7	Yes	0.0207	1 pieces
8x1	4	38.5	1.4404	Nickel-plated	Blasted	0	4	18	1	15	6	13	10	15.5	7	Yes	0.0207	1 pieces
10x1	5	43.5	1.4404	Nickel-plated	Bright	1	5	21	1.3	17	7	15	13	12.5	4	Yes	0.0378	1 pieces
10x1	5	43.5	1.4404	Nickel-plated	Blasted	1	5	21	1.3	17	7	15	13	12.5	4	Yes	0.0378	1 pieces
12x1.5	6	51.7	1.4404	Nickel-plated	Bright	2	6	25	1.8	20	8	17	14	14.5	7	Yes	0.0536	1 pieces
12x1.5	6	51.7	1.4404	Nickel-plated	Blasted	2	6	25	1.8	20	8	17	14	14.5	7	Yes	0.0536	1 pieces
16x1.5	8	68	1.4404	Nickel-plated	Bright	3	8	33	2.3	26	10	23	19	35	15	Yes	0.1297	1 pieces
16x1.5	8	68	1.4404	Nickel-plated	Blasted	3	8	33	2.3	26	10	23	19	35	15	Yes	0.1297	1 pieces
20x1.5	10	74	1.4404	Nickel-plated	Bright	4	10	33	2.8	28	12	25	22	30	15	Yes	0.1839	1 pieces
20x1.5	12	78	1.4404	Nickel-plated	Bright	4	12	33	2.8	28	14	25	22	39	15	Yes	0.0711	1 pieces
20x1.5	10	74	1.4404	Nickel-plated	Blasted	4	10	33	2.8	28	12	25	22	30	15	Yes	0.1839	1 pieces
20x1.5	12	78	1.4404	Nickel-plated	Blasted	4	12	33	2.8	28	14	25	22	39	15	Yes	0.0711	1 pieces
24x2	16	96	1.4404	Nickel-plated	Bright	5	16	40	3.2	32	18	28	27	40	20	Yes	0.3428	1 pieces
24x2	16	96	1.4404	Nickel-plated	Blasted	5	16	40	3.2	32	18	28	27	40	20	Yes	0.3428	1 pieces
6x0.75	3.5	31.5	1.4404	Nickel-plated	Bright	9	3	14	0.8	12	5	10	8	6.5	3	Yes	0.0120	1 pieces
6x0.75	3.5	31.5	1.4404	Nickel-plated	Blasted	9	3	14	0.8	12	5	10	8	6.5	3	Yes	0.0120	1 pieces
8x1	4	38.5	1.4305	Not hardened	-	0	4	18	1	15	6	13	10	12	6	-	0.0227	1 pieces
10x1	5	43.5	1.4305	Not hardened	-	1	5	21	1.3	17	7	15	13	12	5	-	0.0375	1 pieces
12x1.5	6	51.7	1.4305	Not hardened	-	2	6	25	1.8	20	8	17	14	14	6	-	0.0552	1 pieces
16x1.5	8	68	1.4305	Not hardened	-	3	8	33	2.3	26	10	23	19	35	15	-	0.1331	1 pieces
20x1.5	10	74	1.4305	Not hardened	-	4	10	33	2.8	28	12	25	22	34	15	-	0.1845	1 pieces
20x1.5	12	78	1.4305	Not hardened	-	4	12	33	2.8	28	14	25	22	39	15	-	0.1861	1 pieces
24x2	16	96	1.4305	Not hardened	-	5	16	40	3.2	32	18	28	27	46	20	-	0.3446	1 pieces
6x0.75	3.5	31.5	1.4305	Not hardened	-	9	3	14	0.8	12	5	10	8	10	4.5	-	0.0120	1 pieces
8x1	4	38.5	1.4404	Bright	Bright	0	4	18	1	15	6	13	10	15.5	7	Yes	0.0207	1 pieces
8x1	4	38.5	1.4404	Bright	Blasted	0	4	18	1	15	6	13	10	15.5	7	Yes	0.0207	1 pieces
10x1	5	43.5	1.4404	Bright	Bright	1	5	21	1.3	17	7	15	13	12.5	4	Yes	0.0378	1 pieces
10x1	5	43.5	1.4404	Bright	Blasted	1	5	21	1.3	17	7	15	13	12.5	4	Yes	0.0378	1 pieces
12x1.5	6	51.7	1.4404	Bright	Bright	2	6	25	1.8	20	8	17	14	14.5	7	Yes	0.0536	1 pieces
12x1.5	6	51.7	1.4404	Bright	Blasted	2	6	25	1.8	20	8	17	14	14.5	7	Yes	0.0536	1 pieces
16x1.5	8	68	1.4404	Bright	Bright	3	8	33	2.3	26	10	23	19	35	15	Yes	0.1297	1 pieces
16x1.5	8	68	1.4404	Bright	Blasted	3	8	33	2.3	26	10	23	19	35	15	Yes	0.1297	1 pieces
20x1.5	10	74	1.4404	Bright	Bright	4	10	33	2.8	28	12	25	22	30	15	Yes	0.1839	1 pieces
20x1.5	10	74	1.4404	Bright	Blasted	4	10	33	2.8	28	12	25	22	30	15	Yes	0.1839	1 pieces
20x1.5	12	78	1.4404	Bright	Bright	4	12	33	2.8	28	14	25	22	39	15	Yes	0.0711	1 pieces
20x1.5	12	78	1.4404	Bright	Blasted	4	12	33	2.8	28	14	25	22	39	15	Yes	0.0711	1 pieces
24x2	16	96	1.4404	Bright	Bright	5	16	40	3.2	32	18	28	27	40	20	Yes	0.3428	1 pieces
24x2	16	96	1.4404	Bright	Blasted	5	16	40	3.2	32	18	28	27	40	20	Yes	0.3428	1 pieces
6x0.75	3.5	31.5	1.4404	Bright	Bright	9	3	14	0.8	12	5	10	8	6.5	3	Yes	0.0101	1 pieces
6x0.75	3.5	31.5	1.4404	Bright	Blasted	9	3	14	0.8	12	5	10	8	6.5	3	Yes	0.0120	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

25.41 € ( 30.24 € )	4 working days
24.21 € ( 28.81 € )	4 working days
28.62 € ( 34.06 € )	4 working days
38.81 € ( 46.18 € )	4 working days
52.29 € ( 62.23 € )	4 working days
82.29 € ( 97.93 € )	4 working days
93.51 € ( 111.28 € )	4 working days
26.62 € ( 31.68 € )	4 working days
32.95 € ( 39.21 € )	4 working days
32.95 € ( 39.21 € )	4 working days
31.40 € ( 37.37 € )	4 working days
31.40 € ( 37.37 € )	4 working days
37.11 € ( 44.16 € )	4 working days
37.11 € ( 44.16 € )	4 working days
50.34 € ( 59.90 € )	4 working days
50.34 € ( 59.90 € )	4 working days
62.73 € ( 74.65 € )	4 working days
86.22 € ( 102.60 € )	4 working days
62.73 € ( 74.65 € )	4 working days
86.22 € ( 102.60 € )	4 working days
102.66 € ( 122.17 € )	4 working days
102.66 € ( 122.17 € )	4 working days
34.56 € ( 41.13 € )	4 working days
34.56 € ( 41.13 € )	4 working days
25.41 € ( 30.24 € )	4 working days
24.21 € ( 28.81 € )	4 working days
28.62 € ( 34.06 € )	4 working days
38.81 € ( 46.18 € )	4 working days
52.29 € ( 62.23 € )	4 working days
82.29 € ( 97.93 € )	4 working days
93.51 € ( 111.28 € )	4 working days
26.62 € ( 31.68 € )	4 working days
32.95 € ( 39.21 € )	4 working days
32.95 € ( 39.21 € )	4 working days
31.40 € ( 37.37 € )	4 working days
31.40 € ( 37.37 € )	4 working days
37.11 € ( 44.16 € )	4 working days
37.11 € ( 44.16 € )	4 working days
50.34 € ( 59.90 € )	4 working days
50.34 € ( 59.90 € )	4 working days
62.73 € ( 74.65 € )	4 working days
62.73 € ( 74.65 € )	4 working days
86.22 € ( 102.60 € )	4 working days
86.22 € ( 102.60 € )	4 working days
102.66 € ( 122.17 € )	4 working days
102.66 € ( 122.17 € )	4 working days
34.56 € ( 41.13 € )	4 working days
34.56 € ( 41.13 € )	4 working days

More Information

Basic information

Basic information

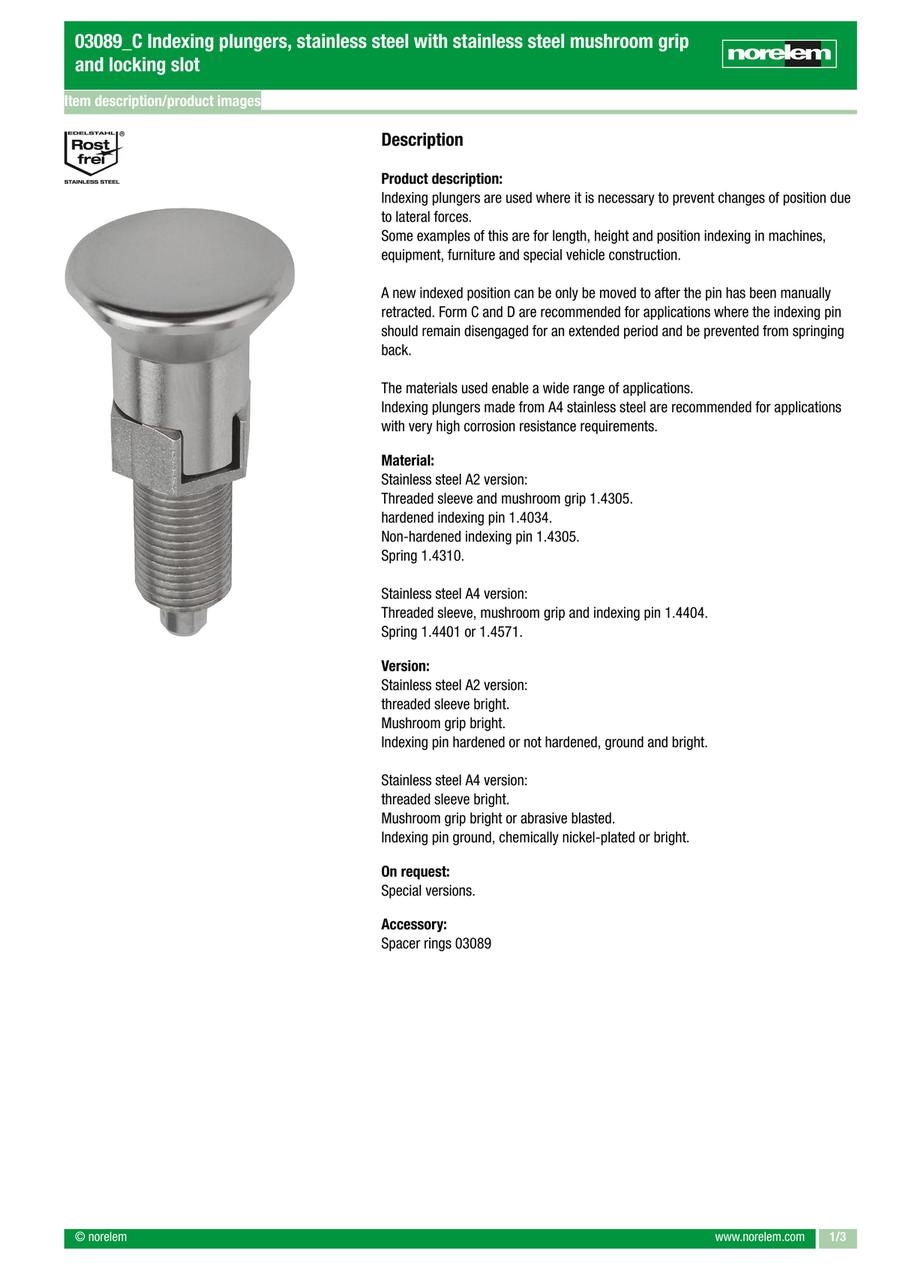

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Stainless steel 1.4305, 1.4034, 1.4404
