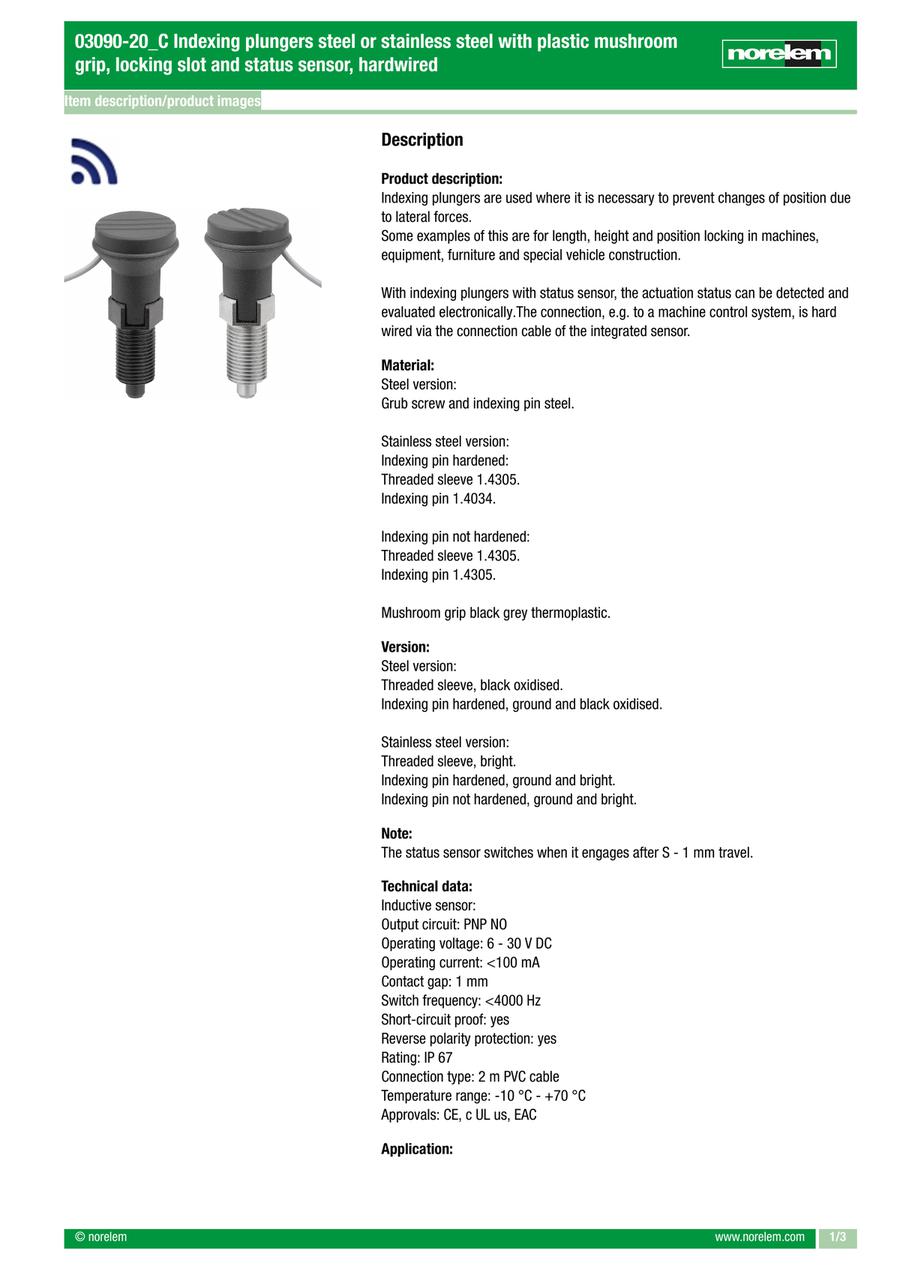

Indexing plungers steel or stainless steel with status sensor, hardwired, Form C (03090)
· No interfering edges
· short switching distance
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Body Material | Stroke S (mm) | Surface finish body | Size | D=pin diameter (mm) | D1=Thread | D2 (mm) | Fx30° (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | L3 (mm) | SW1 (mm) | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
118.40 € | 1 | 4 Days | Stainless Steel | 5 | hardened | 1 | 5 | M10x1 | 25 | 1.3 | 51 | 17 | 7 | 15 | 13 | 12 | 5 | ||
120.06 € | 1 | 4 Days | Stainless Steel | 6 | hardened | 2 | 6 | M12x115 | 25 | 1.8 | 56 | 20 | 8 | 17 | 14 | 14 | 6 | ||
124.99 € | 1 | 4 Days | Stainless Steel | 8 | hardened | 3 | 8 | M16x115 | 33 | 2.3 | 74 | 26 | 10 | 23 | 19 | 35 | 15 | ||
128.27 € | 1 | 4 Days | Stainless Steel | 10 | hardened | 4 | 10 | M20x115 | 33 | 2.8 | 80 | 28 | 12 | 25 | 22 | 34 | 15 | ||
131.56 € | 1 | 4 Days | Stainless Steel | 12 | hardened | 4 | 12 | M20x115 | 33 | 2.8 | 84 | 28 | 14 | 25 | 22 | 39 | 15 | ||
118.40 € | 1 | 4 Days | Stainless Steel | 5 | not hardened | 1 | 5 | M10x1 | 25 | 1.3 | 51 | 17 | 7 | 15 | 13 | 12 | 5 | ||
120.06 € | 1 | 4 Days | Stainless Steel | 6 | not hardened | 2 | 6 | M12x115 | 25 | 1.8 | 56 | 20 | 8 | 17 | 14 | 14 | 6 | ||
124.99 € | 1 | 4 Days | Stainless Steel | 8 | not hardened | 3 | 8 | M16x115 | 33 | 2.3 | 74 | 26 | 10 | 23 | 19 | 35 | 15 | ||
128.27 € | 1 | 4 Days | Stainless Steel | 10 | not hardened | 4 | 10 | M20x115 | 33 | 2.8 | 80 | 28 | 12 | 25 | 22 | 34 | 15 | ||
131.56 € | 1 | 4 Days | Stainless Steel | 12 | not hardened | 4 | 12 | M20x115 | 33 | 2.8 | 84 | 28 | 14 | 25 | 22 | 39 | 15 | ||
113.46 € | 1 | 4 Days | Steel | 5 | hardened | 1 | 5 | M10x1 | 25 | 1.3 | 51 | 17 | 7 | 15 | 13 | 12 | 5 | ||
115.12 € | 1 | 4 Days | Steel | 6 | hardened | 2 | 6 | M12x115 | 25 | 1.8 | 56 | 20 | 8 | 17 | 14 | 14 | 6 | ||
116.76 € | 1 | 4 Days | Steel | 8 | hardened | 3 | 8 | M16x115 | 33 | 2.3 | 74 | 26 | 10 | 23 | 19 | 35 | 15 | ||
121.70 € | 1 | 4 Days | Steel | 10 | hardened | 4 | 10 | M20x115 | 33 | 2.8 | 80 | 28 | 12 | 25 | 22 | 34 | 15 | ||
124.99 € | 1 | 4 Days | Steel | 12 | hardened | 4 | 12 | M20x115 | 33 | 2.8 | 84 | 28 | 14 | 25 | 22 | 39 | 15 |
Loading...
Basic information
| Component material | Thermoplastic | Component colour | black grey RAL 7021 | Form | C |
|---|---|---|---|---|---|
| Form-Type | with locking slot, without locknut | Locknut | without locknut | Connection type | PVC cable |
| D3(mm) | 2.4 | P=cable length(mm) | 2000 |
Configure
Basic Attributes
-
Body Material
- Steel
- Stainless Steel
-
Stroke S(mm)
-
Surface finish body
- hardened
- not hardened
-
Size
- 1
- 2
- 3
- 4
-
D=pin diameter(mm)
-
D1=Thread
-
D2(mm)
-
Fx30°(mm)
-
L=Length(mm)
-
L1(mm)
-
L2(mm)
-
L3(mm)
-
SW1(mm)
-
Spring force final pressure F2 approx.(N)
-
Spring force initial pressure F1 approx.(N)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
