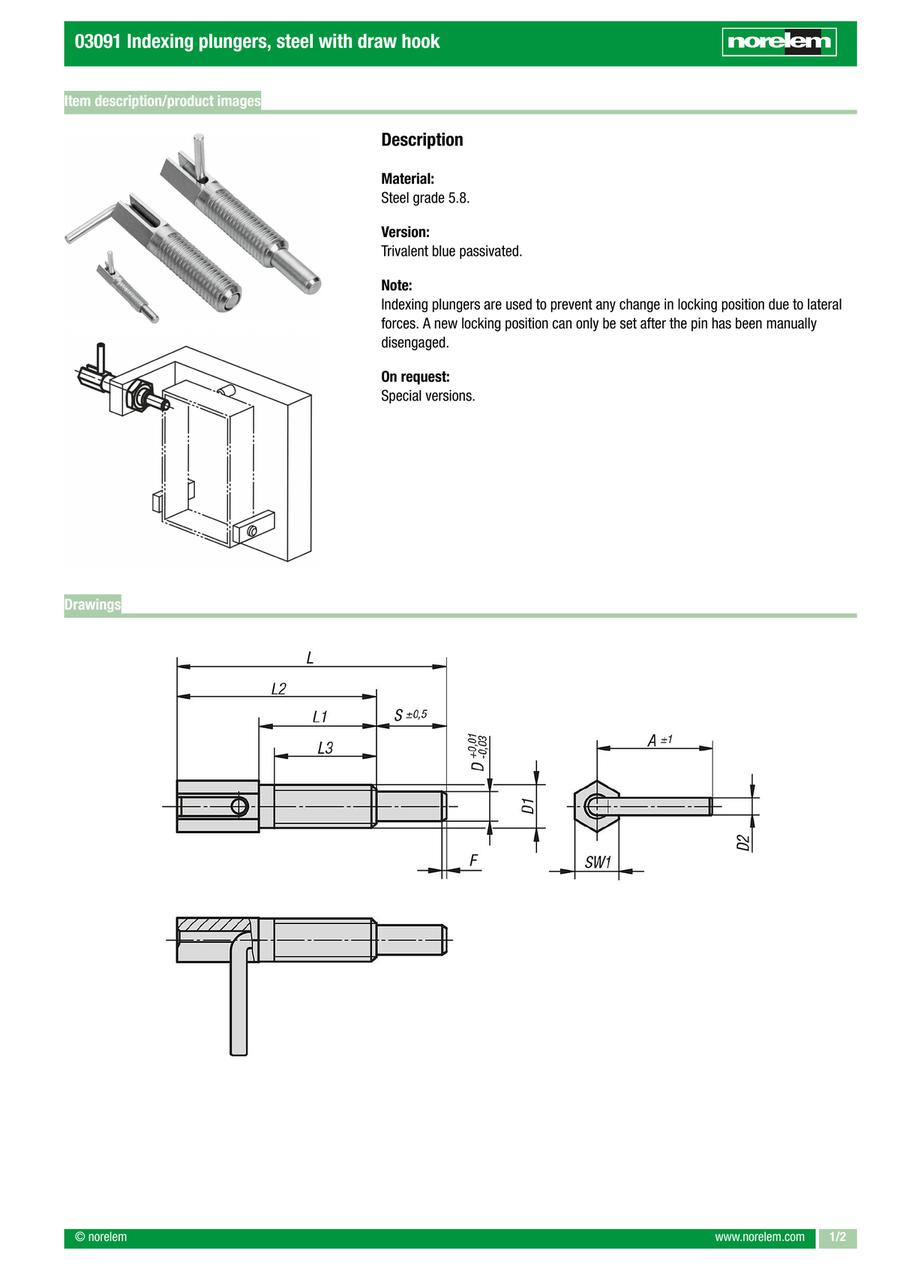

Indexing plungers, steel with draw hook (03091)

Indexing plungers, steel with draw hook (03091)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03091-1104
    03091-1206
    03091-1308
    03091-1410
    03091-1905

    Thread

    (mm)

    Travel S

    (mm)

    Length L

    (mm)

    Size

    A

    (mm)

    D=pin diameter

    (mm)

    D2

    (mm)

    Fx30°

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    SW1

    (mm)

    Tightening torque max.

    (Nm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    		Minimum order quantity
    6
    9.5
    41.5
    1
    16
    4
    2.3
    0.7
    20
    32
    17
    6
    1.6
    10
    3
    1 pieces
    10
    14
    65
    2
    23.5
    6
    3.5
    1.1
    33.5
    51
    30
    10
    10
    16
    4
    1 pieces
    12
    19
    73
    3
    31
    8
    4.7
    1.3
    31.8
    54
    28
    12
    13
    22
    4
    1 pieces
    16
    25
    102.5
    4
    33
    10
    4.7
    1.6
    50.5
    77.5
    44.5
    16
    42
    23
    4
    1 pieces
    8
    12
    54
    9
    19
    5
    3
    0.9
    27
    42
    24
    8
    4.5
    13.5
    3.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.79 €
    ( 8.08 € )
    4 working days
    7.76 €
    ( 9.23 € )
    4 working days
    8.93 €
    ( 10.63 € )
    4 working days
    12.41 €
    ( 14.77 € )
    4 working days
    7.05 €
    ( 8.39 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Indexing plungers facilitate indexing and locking

    · Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

    · High stability
