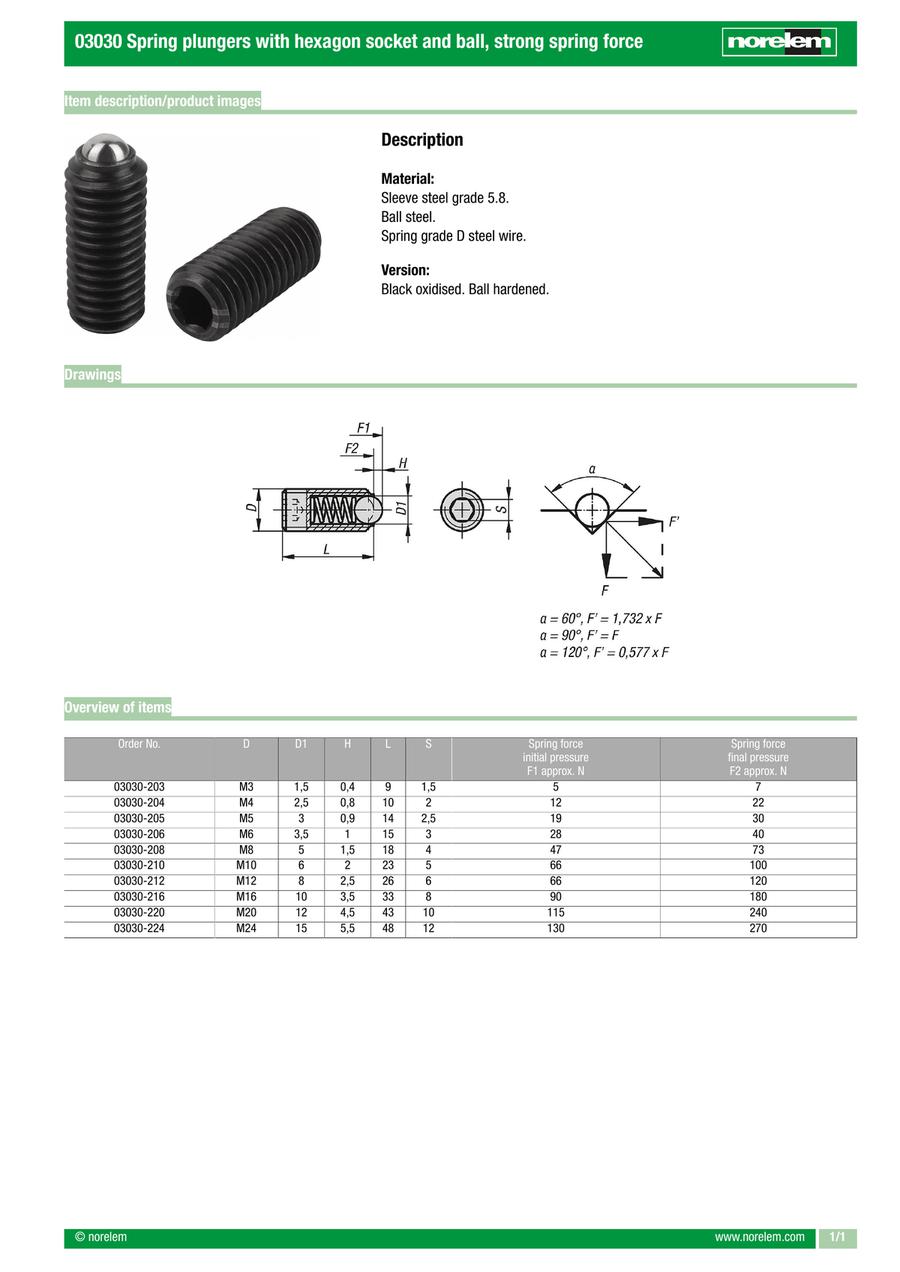

Spring plungers with hexagon socket and ball, strong spring force (03030)
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable
· Simple assembly
· ball point hardened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03030-203 |
| 03030-204 |
| 03030-205 |
| 03030-206 |
| 03030-208 |
| 03030-210 |
| 03030-212 |
| 03030-216 |
| 03030-220 |
| 03030-224 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Initial Load (N) | Max. Load (N) | D=thread | D1 (mm) | H (mm) | L=Length (mm) | S (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.68 € | 1 | 4 Days | 5 | 7 | M3 | 1.5 | 0.4 | 9 | 1.5 | ||
2.06 € | 1 | 4 Days | 12 | 22 | M4 | 2.5 | 0.8 | 10 | 2 | ||
2.06 € | 1 | 4 Days | 19 | 30 | M5 | 3 | 0.9 | 14 | 2.5 | ||
2.06 € | 1 | 4 Days | 28 | 40 | M6 | 3.5 | 1 | 15 | 3 | ||
2.64 € | 1 | 4 Days | 47 | 73 | M8 | 5 | 1.5 | 18 | 4 | ||
2.99 € | 1 | 4 Days | 66 | 100 | M10 | 6 | 2 | 23 | 5 | ||
3.95 € | 1 | 4 Days | 66 | 120 | M12 | 8 | 2.5 | 26 | 6 | ||
5.23 € | 1 | 4 Days | 90 | 180 | M16 | 10 | 3.5 | 33 | 8 | ||
7.04 € | 1 | 4 Days | 115 | 240 | M20 | 12 | 4.5 | 43 | 10 | ||
12.17 € | 1 | 4 Days | 130 | 270 | M24 | 15 | 5.5 | 48 | 12 |
Loading...
Basic information
| Main material | steel | Component material | ball steel |
|---|
Configure
Basic Attributes
-
Initial Load(N)
-
D=thread
-
D1(mm)
-
H(mm)
-
L=Length(mm)
-
S(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
