NORELEM

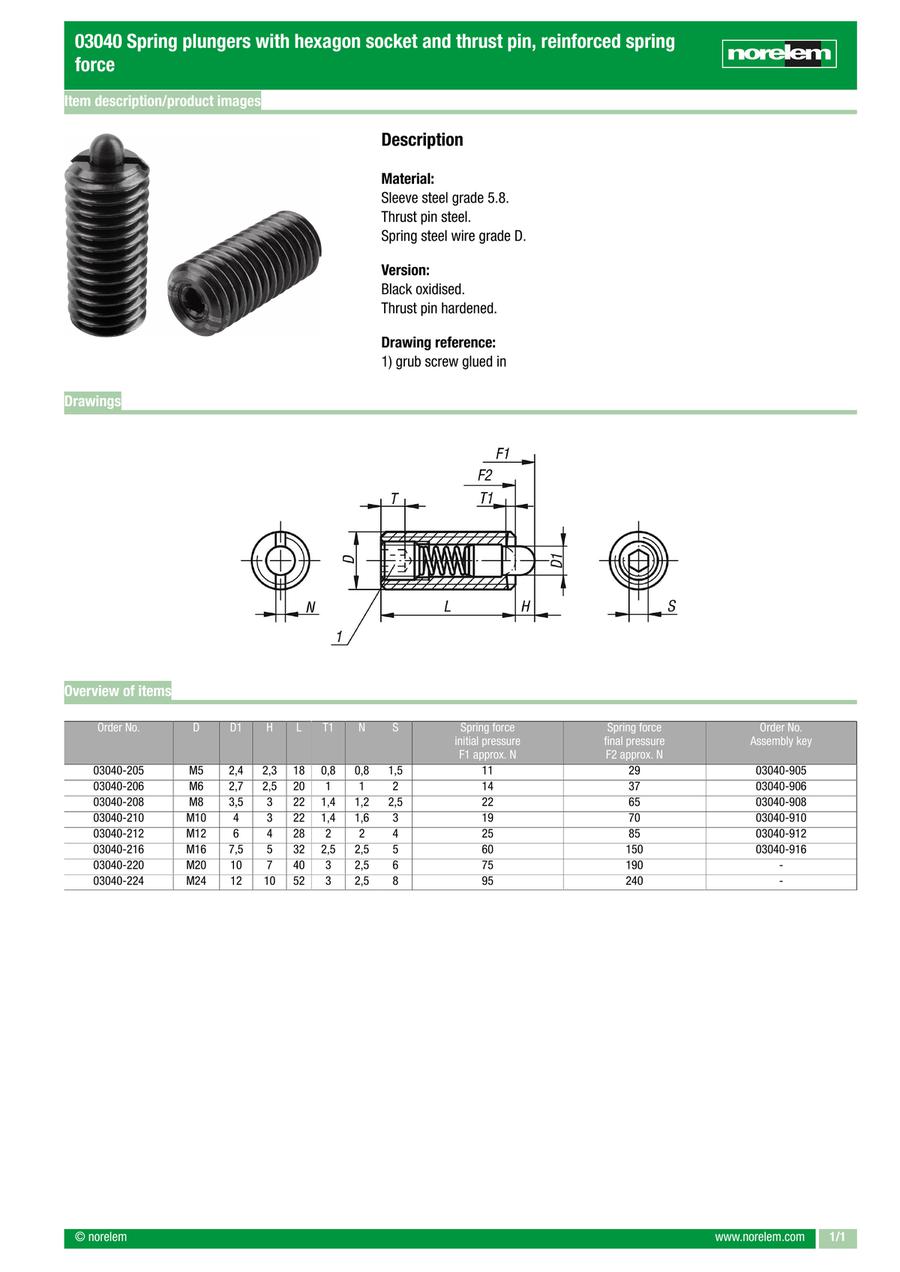

Spring plungers with hexagon socket and thrust pin, reinforced spring force (03040)

Spring plungers with hexagon socket and thrust pin, reinforced spring force (03040)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03040-205
    03040-206
    03040-208
    03040-210
    03040-212
    03040-216
    03040-220
    03040-224

    Body O.D./Thread M

    (mm)

    Initial Load (Range)

    (N)

    Initial Load

    (N)

    Max. Load

    (N)

    D1

    (mm)

    L=Length

    (mm)

    H

    (mm)

    N

    (mm)

    S

    (mm)

    T

    (mm)

    T1

    (mm)

    		Minimum order quantity
    5
    0.01 to 50
    11
    29
    2.4
    18
    2.3
    0.8
    1.5
    2
    0.8
    1 pieces
    6
    0.01 to 50
    14
    37
    2.7
    20
    2.5
    1
    2
    2.5
    1
    1 pieces
    8
    0.01 to 50
    22
    65
    3.5
    22
    3
    1.2
    2.5
    3
    1.4
    1 pieces
    10
    0.01 to 50
    19
    70
    4
    22
    3
    1.6
    3
    3.5
    1.4
    1 pieces
    12
    0.01 to 50
    25
    85
    6
    28
    4
    2
    4
    5
    2
    1 pieces
    16
    50.01 to 100
    60
    150
    7.5
    32
    5
    2.5
    5
    6
    2.5
    1 pieces
    20
    50.01 to 100
    75
    190
    10
    40
    7
    2.5
    6
    8
    3
    1 pieces
    24
    50.01 to 100
    95
    240
    12
    52
    10
    2.5
    8
    10
    3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.58 €
    ( 3.07 € )
    4 working days
    2.69 €
    ( 3.20 € )
    4 working days
    3.23 €
    ( 3.84 € )
    4 working days
    3.59 €
    ( 4.27 € )
    4 working days
    4.66 €
    ( 5.55 € )
    4 working days
    5.93 €
    ( 7.06 € )
    4 working days
    7.62 €
    ( 9.07 € )
    4 working days
    13.43 €
    ( 15.98 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable

    · Simple assembly

    · Hardened thrust pin
