NORELEM

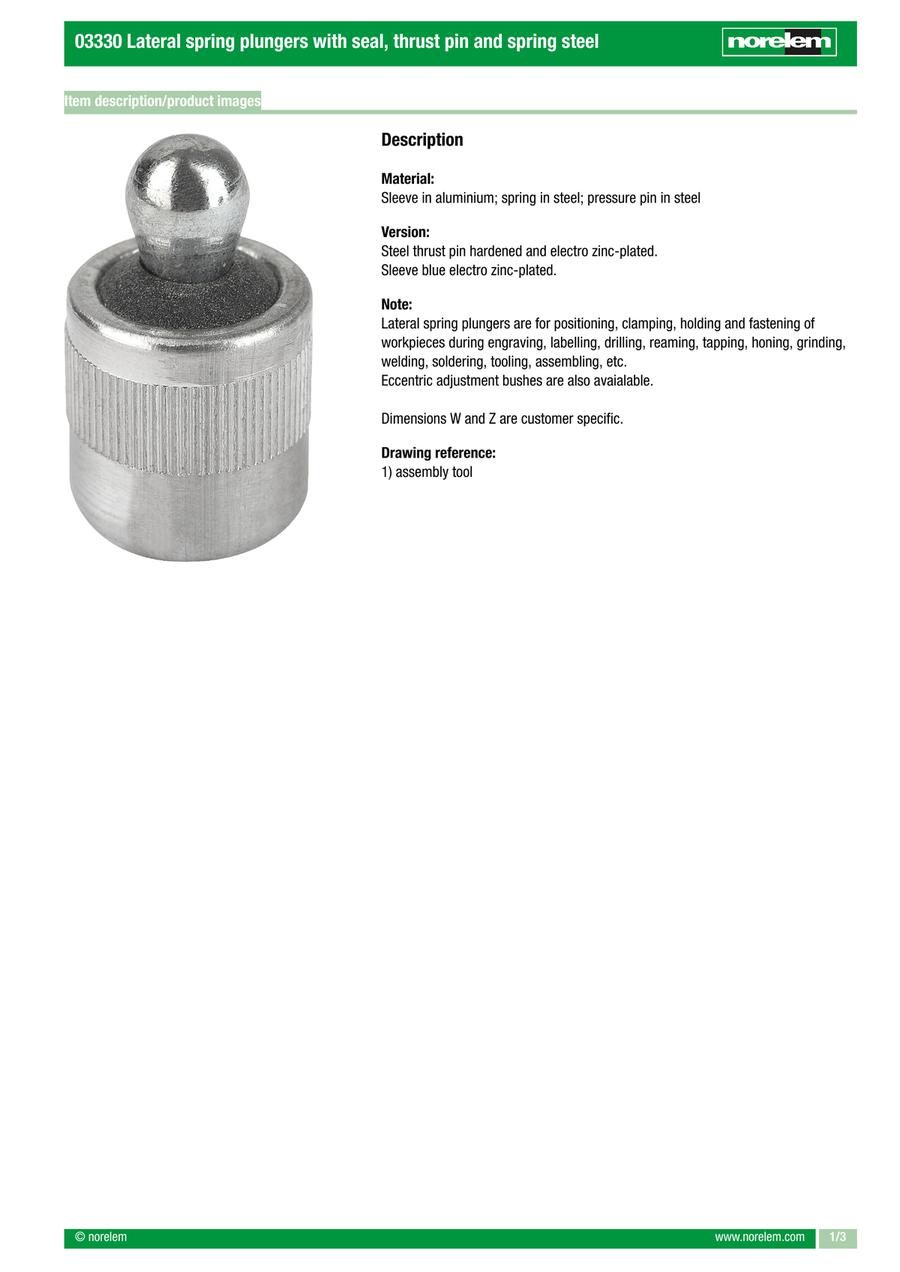

Lateral spring plungers with seal, thrust pin and spring steel (03330)

Lateral spring plungers with seal, thrust pin and spring steel (03330)

Part number:

Still undefined. 15 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03330-22034
    03330-22036
    03330-22038
    03330-22054
    03330-22056
    03330-22058
    03330-22064
    03330-22066
    03330-22068
    03330-22084
    03330-22086
    03330-22088
    03330-22104
    03330-22106
    03330-22108

    D=outside diameter

    (mm)

    D1

    (mm)

    D2

    (mm)

    L=Length

    (mm)

    L1= length

    (mm)

    F ca.

    (N)

    ±S

    (mm)

    Order No. assembly tool

    		Minimum order quantity
    6
    3
    6
    7
    4
    10
    0.5
    K0369.03
    1 pieces
    6
    3
    6
    7
    4
    20
    0.5
    K0369.03
    1 pieces
    6
    3
    6
    7
    4
    40
    0.5
    K0369.03
    1 pieces
    10
    5
    10
    12
    6
    20
    0.8
    K0369.05
    1 pieces
    10
    5
    10
    12
    6
    50
    0.8
    K0369.05
    1 pieces
    10
    5
    10
    12
    6
    100
    0.8
    K0369.05
    1 pieces
    10
    6
    10
    12
    10
    40
    1
    K0369.05
    1 pieces
    10
    6
    10
    12
    10
    75
    1
    K0369.05
    1 pieces
    10
    6
    10
    12
    10
    100
    1
    K0369.05
    1 pieces
    12
    8
    12
    14
    13
    50
    1.3
    K0369.08
    1 pieces
    12
    8
    12
    14
    13
    100
    1.3
    K0369.08
    1 pieces
    12
    8
    12
    14
    13
    150
    1.3
    K0369.08
    1 pieces
    16
    10
    16
    18
    16
    100
    1.6
    K0369.10
    1 pieces
    16
    10
    16
    18
    16
    150
    1.6
    K0369.10
    1 pieces
    16
    10
    16
    18
    16
    200
    1.6
    K0369.10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.98 €
    ( 8.31 € )
    4 working days
    6.98 €
    ( 8.31 € )
    4 working days
    6.98 €
    ( 8.31 € )
    4 working days
    7.27 €
    ( 8.65 € )
    4 working days
    7.27 €
    ( 8.65 € )
    4 working days
    7.27 €
    ( 8.65 € )
    4 working days
    7.71 €
    ( 9.17 € )
    4 working days
    7.71 €
    ( 9.17 € )
    4 working days
    7.71 €
    ( 9.17 € )
    4 working days
    8.25 €
    ( 9.82 € )
    4 working days
    8.25 €
    ( 9.82 € )
    4 working days
    8.25 €
    ( 9.82 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
    8.87 €
    ( 10.56 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Positioning, clamping, retaining and fixating of workpieces

    · Universally applicable

    · Thrust pin, steel, hardened
