NORELEM

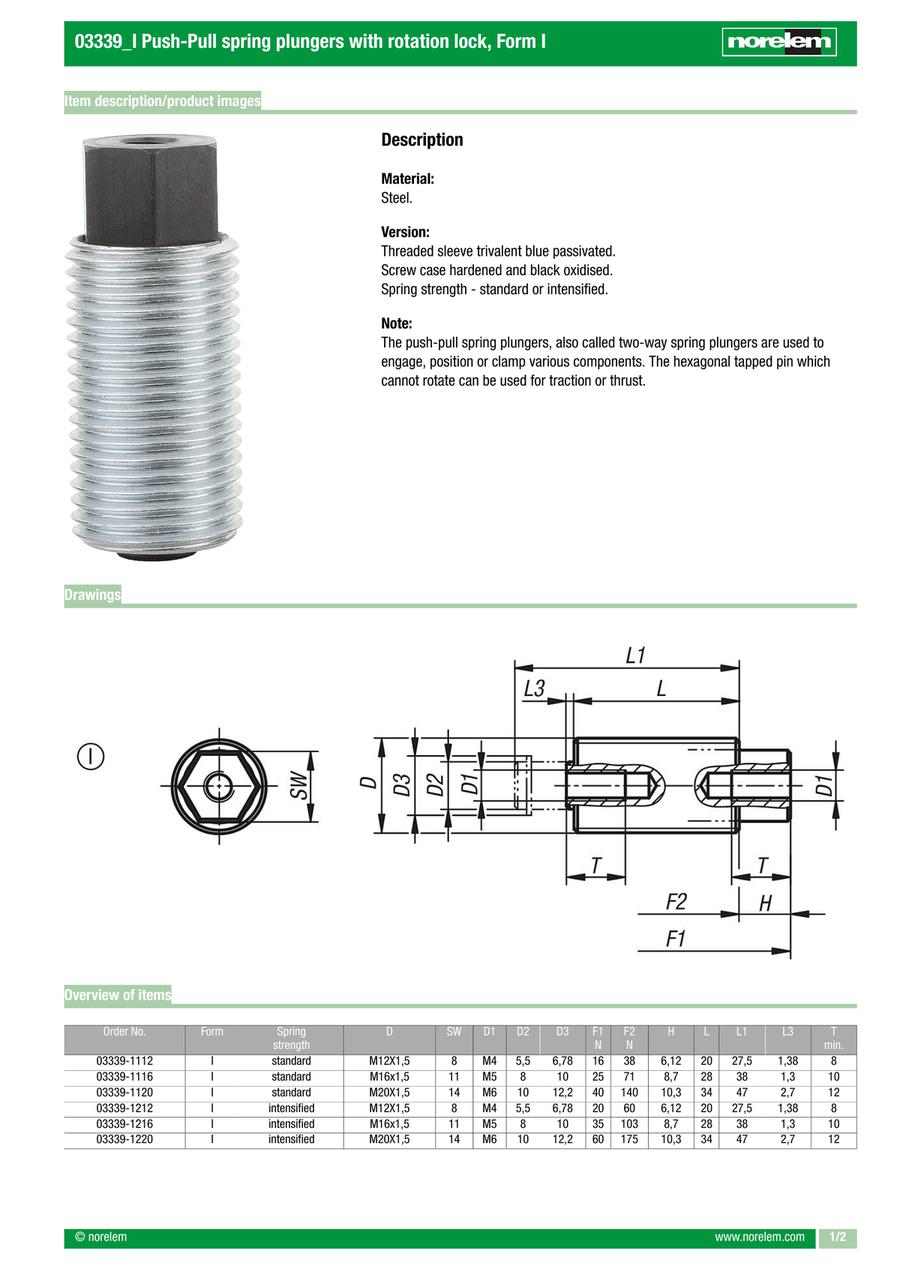

Push-Pull spring plungers with rotation lock, Form I (03339)

Push-Pull spring plungers with rotation lock, Form I (03339)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03339-1112
    03339-1116
    03339-1120
    03339-1212
    03339-1216
    03339-1220

    Body O.D./Thread M

    (mm)

    Initial Load (Range)

    (N)

    Initial Load

    (N)

    Max. Load

    (N)

    D1

    (mm)

    D2

    (mm)

    D3

    (mm)

    L

    (mm)

    L1

    (mm)

    L3

    (mm)

    SW

    (mm)

    H

    (mm)

    T min.

    (mm)

    		Minimum order quantity
    16x1.5
    0.01 to 50
    16
    38
    M4
    5.5
    6.78
    20
    27.5
    1.38
    8
    6.12
    8
    1 pieces
    20x1.5
    0.01 to 50
    25
    71
    M5
    8
    10
    28
    38
    1.3
    11
    8.7
    10
    1 pieces
    12x1.5
    0.01 to 50
    40
    140
    M6
    10
    12.2
    34
    47
    2.7
    14
    10.3
    12
    1 pieces
    16x1.5
    0.01 to 50
    20
    60
    M4
    5.5
    6.78
    20
    27.5
    1.38
    8
    6.12
    8
    1 pieces
    20x1.5
    0.01 to 50
    35
    103
    M5
    8
    10
    28
    38
    1.3
    11
    8.7
    10
    1 pieces
    12x1.5
    50.01 to 100
    60
    175
    M6
    10
    12.2
    34
    47
    2.7
    14
    10.3
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    10.24 €
    ( 12.19 € )
    4 working days
    11.52 €
    ( 13.71 € )
    4 working days
    14.37 €
    ( 17.10 € )
    4 working days
    10.24 €
    ( 12.19 € )
    4 working days
    11.52 €
    ( 13.71 € )
    4 working days
    14.37 €
    ( 17.10 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Universal thrust pad

    · Locking, positioning or clamping of various components

    · Suitable for use as tension pin or thrust pin
