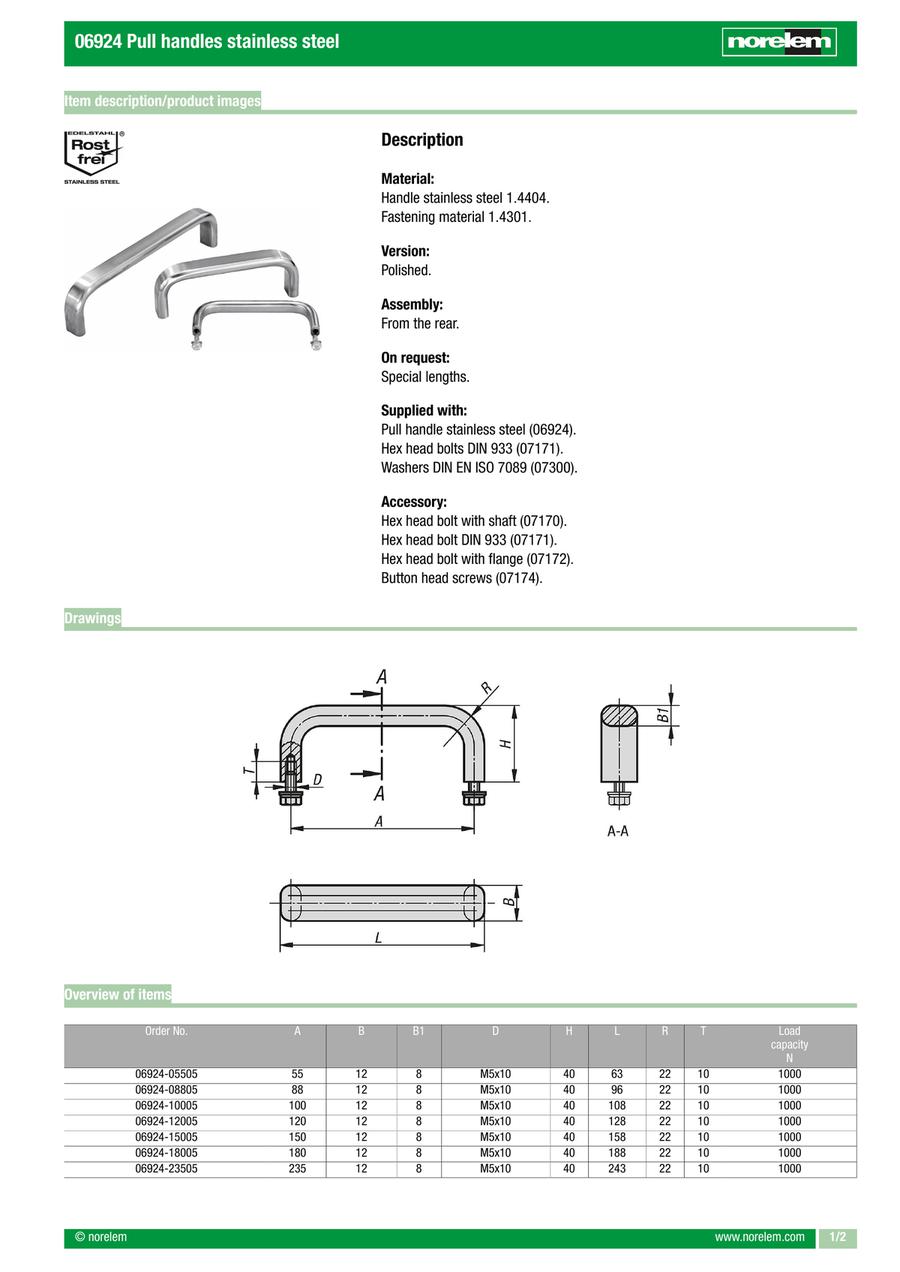

Pull handles stainless steel (06924)
· Application fields: machine and plant construction, toolmaking, foodstuff industry, rehabilitation and medical technology
· Grip material: stainless steel. 1.4404
· Fastening material: 1.4301
· Mounted: from the rear
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06924-10005 |
| 06924-10006 |
| 06924-12005 |
| 06924-12006 |
| 06924-15005 |
| 06924-15006 |
| 06924-18005 |
| 06924-18006 |
| 06924-25005 |
| 06924-25006 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hole spacing (mm) | Surface finish body | B (mm) | B1 (mm) | D=Fastening hole | H (mm) | L=Length (mm) | R (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
29.38 € | 1 | 4 Days | 100 | semi-gloss vibratory ground | 12 | 8 | M5x10 | 40 | 108 | 22 | 10 | ||
32.95 € | 1 | 4 Days | 100 | semi-gloss vibratory ground | 19.5 | 10 | M6x12 | 45 | 110 | 24 | 12 | ||
30.77 € | 1 | 4 Days | 120 | semi-gloss vibratory ground | 12 | 8 | M5x10 | 40 | 128 | 22 | 10 | ||
35.00 € | 1 | 4 Days | 120 | - | 19.5 | 10 | M6x12 | 45 | 130 | 24 | 12 | ||
32.95 € | 1 | 4 Days | 150 | semi-gloss vibratory ground | 12 | 8 | M5x10 | 40 | 158 | 22 | 10 | ||
37.58 € | 1 | 4 Days | 150 | semi-gloss vibratory ground | 19.5 | 10 | M6x12 | 45 | 160 | 24 | 12 | ||
34.17 € | 1 | 4 Days | 180 | semi-gloss vibratory ground | 12 | 8 | M5x10 | 40 | 188 | 22 | 10 | ||
39.21 € | 1 | 4 Days | 180 | semi-gloss vibratory ground | 19.5 | 10 | M6x12 | 45 | 190 | 24 | 12 | ||
40.59 € | 1 | 4 Days | 250 | semi-gloss vibratory ground | 12 | 8 | M5x10 | 40 | 258 | 22 | 10 | ||
46.85 € | 1 | 4 Days | 250 | semi-gloss vibratory ground | 19.5 | 10 | M6x12 | 45 | 260 | 24 | 12 |
Loading...
Basic information
| Main Body Material | Stainless Steel | Load capacity(N) | 1000 | Steel code | 1.4404 |
|---|---|---|---|---|---|
| Assembly | from the rear | Pull handle: cross section | oval |
Configure
Basic Attributes
-
Hole spacing(mm)
-
Surface finish body
- semi-gloss vibratory ground
-
B(mm)
-
B1(mm)
-
D=Fastening hole
-
H(mm)
-
L=Length(mm)
-
R(mm)
- 22
- 24
-
T(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
