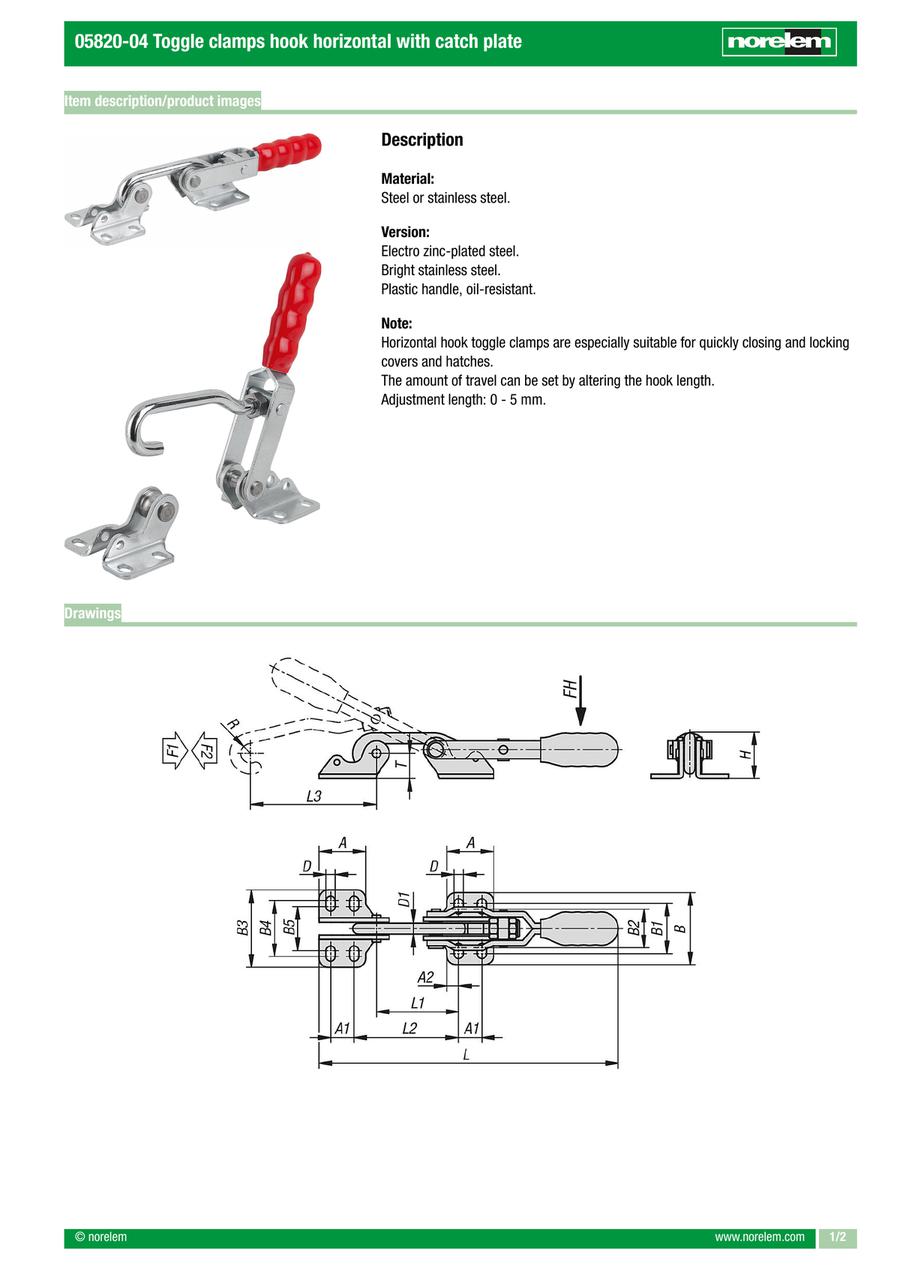

Toggle clamps hook horizontal with catch plate (05820-04)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05820-04-02000 |
| 05820-04-04000 |
| 05820-04-07000 |
| 05820-04-12000 |
| 05820-04-14000 |
| 05820-04-17000 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tightening Force (N) | Body Material | Surface finish body | Opening angle of handle | F1=Tractive force (N) | F2=Retaining force (N) | Clamping travel L3 (mm) | A (mm) | A1 (mm) | A2 (mm) | B (mm) | B1 (mm) | B2 (mm) | B3 (mm) | B4 (mm) | B5 (mm) | D (mm) | D1 (mm) | H (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | R (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.44 € | 1 | 4 Days | 100 | Steel | galvanised | 153° | 1500 | 2000 | 70 | 26 | 13 | 6.5 | 40 | 28 | 21.5 | 43 | 31 | 24.5 | 5.2 | 6 | 25.4 | 167 | 45.5 | 58 | 5.4 | 14 | ||
46.66 € | 1 | 4 Days | 160 | Steel | galvanised | 155° | 3000 | 4000 | 90 | 35 | 19 | 8 | 52 | 36 | 29 | 57 | 41 | 34 | 6.5 | 8 | 35 | 247 | 68.2 | 84 | 7 | 20 | ||
75.22 € | 1 | 4 Days | 200 | Steel | galvanised | 155° | 4000 | 7000 | 115 | 51 | 32 | 9.5 | 71.5 | 52.5 | 43.5 | 78 | 59 | 50 | 8.5 | 12 | 49.3 | 314 | 84 | 104 | 10 | 27 | ||
53.94 € | 1 | 4 Days | 100 | Stainless Steel | bright | 153° | 1500 | 2000 | 70 | 26 | 13 | 6.5 | 40 | 28 | 21.5 | 43 | 31 | 24.5 | 5.2 | 6 | 25.4 | 167 | 45.5 | 58 | 5.4 | 14 | ||
78.37 € | 1 | 4 Days | 160 | Stainless Steel | bright | 155° | 3000 | 4000 | 90 | 35 | 19 | 8 | 52 | 36 | 29 | 57 | 41 | 34 | 6.5 | 8 | 35 | 247 | 68.2 | 84 | 7 | 20 | ||
165.57 € | 1 | 4 Days | 200 | Stainless Steel | bright | 155° | 4000 | 7000 | 115 | 51 | 32 | 9.5 | 71.5 | 52.5 | 43.5 | 78 | 59 | 50 | 8.5 | 12 | 49.3 | 314 | 84 | 104 | 10 | 27 |
Loading...
Basic information
| Component material | Plastic | Surface finish component | oil-resistant | Component colour | red |
|---|---|---|---|---|---|
| Version 2 | with catch plate |
Configure
Basic Attributes
-
Tightening Force(N)
-
Body Material
- Steel
- Stainless Steel
-
Surface finish body
- bright
- galvanised
-
Opening angle of handle
- 153°
- 155°
-
F1=Tractive force(N)
-
F2=Retaining force(N)
-
Clamping travel L3(mm)
- 70
- 90
- 115
-
A(mm)
-
A1(mm)
-
A2(mm)
-
B(mm)
-
B1(mm)
-
B2(mm)
-
B3(mm)
-
B4(mm)
- 31
- 41
- 59
-
B5(mm)
-
D(mm)
-
D1(mm)
-
H(mm)
-
L=Length(mm)
-
L1(mm)
-
L2(mm)
-
R(mm)
- 5.4
- 7
- 10
-
T(mm)
- 14
- 20
- 27
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
