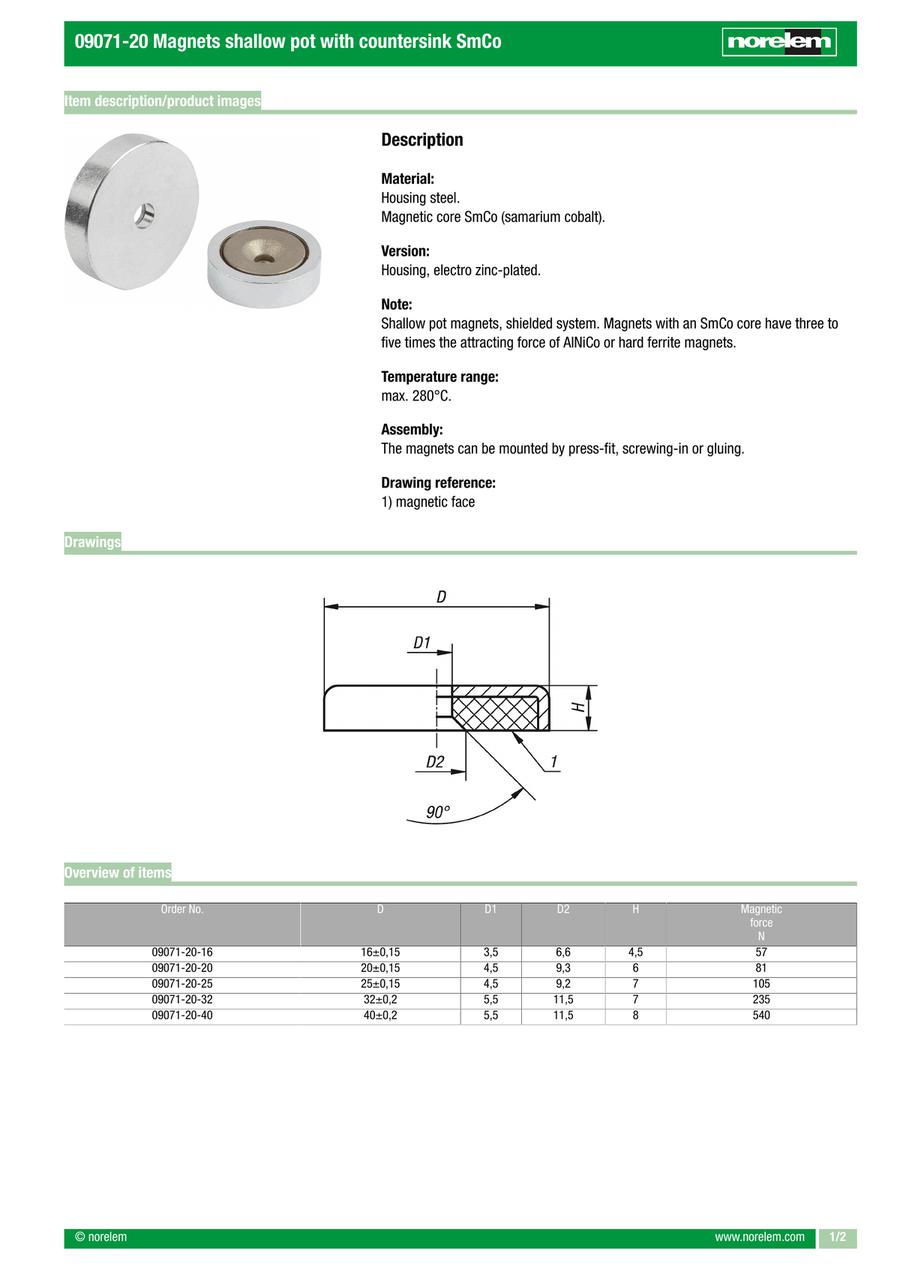

Magnets shallow pot with countersink SmCo (09071-20)

Magnets shallow pot with countersink SmCo (09071-20)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    09071-20-16
    09071-20-20
    09071-20-25
    09071-20-32
    09071-20-40

    Outer Diameter

    (Ø)

    D1=Fastening hole

    (mm)

    D2

    (mm)

    H=Height

    (mm)

    		Minimum order quantity
    16 ±0.15
    3.5
    6.6
    4.5
    1 pieces
    20 ±0.15
    4.5
    9.3
    6
    1 pieces
    25 ±0.15
    4.5
    9.2
    7
    1 pieces
    32 ±0.2
    5.5
    11.5
    7
    1 pieces
    40 ±0.2
    5.5
    11.5
    8
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.99 €
    ( 14.27 € )
    4 working days
    14.17 €
    ( 16.86 € )
    4 working days
    17.17 €
    ( 20.43 € )
    4 working days
    20.87 €
    ( 24.84 € )
    4 working days
    34.65 €
    ( 41.23 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Flexible, easy to remove, non-positive fasteners

    · Application sectors: machine and plant construction

    · Temperature range up to 280 °C

    · High magnetic force

    · Assembly: press in, screw in or glue
