    KIPP

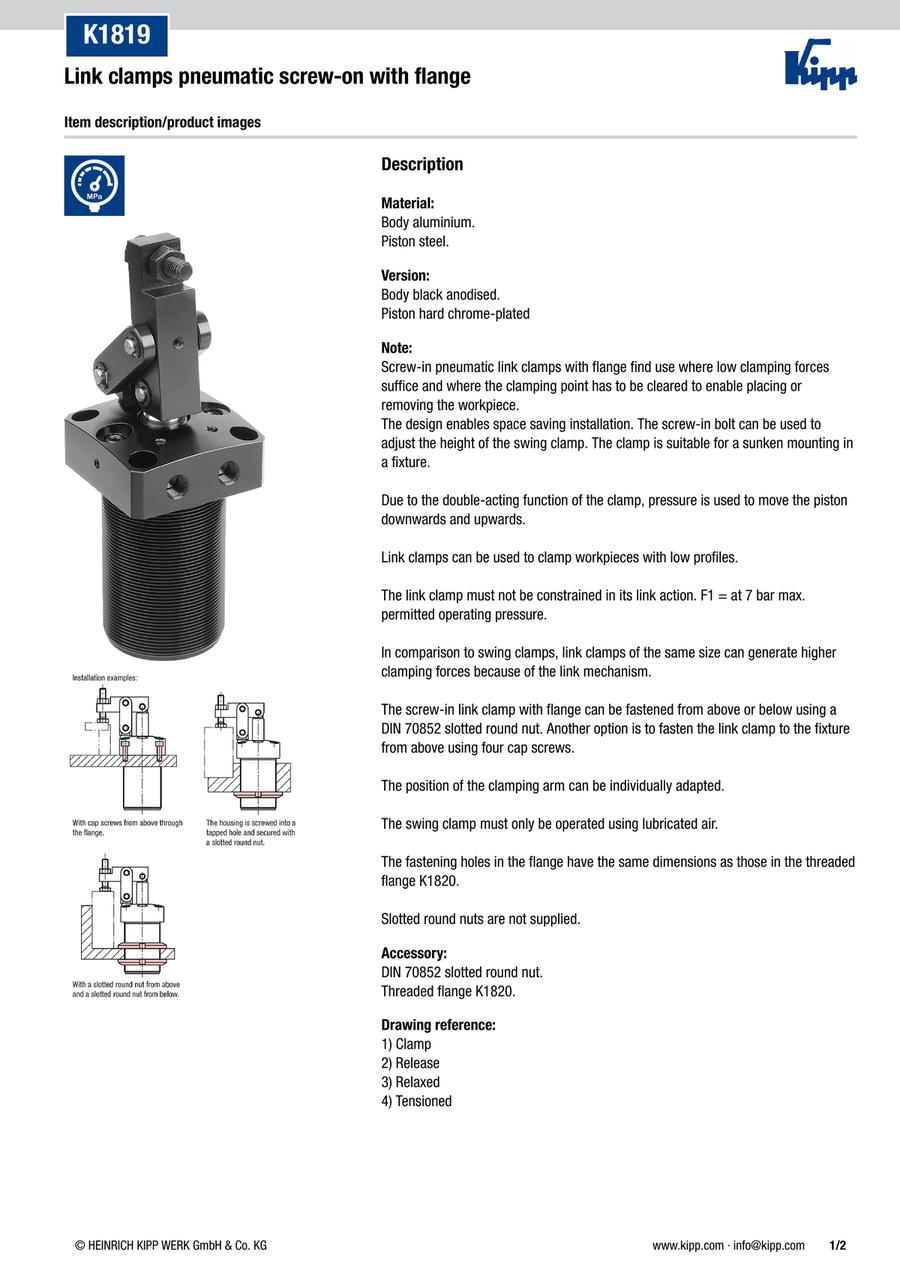

    Link clamps pneumatic screw-on with flange (K1819)

    Link clamps pneumatic screw-on with flange (K1819)

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1819.25
    K1819.32
    K1819.40
    K1819.50
    K1819.63

    A

    (mm)

    B=Width

    (mm)

    B1

    (mm)

    B2

    (mm)

    B3

    (mm)

    B4

    (mm)

    D=Thread

    (mm)

    D1

    (mm)

    D2

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    H2

    (mm)

    H4

    (mm)

    H5

    (mm)

    Size

    H6

    (mm)

    H7

    (mm)

    A2

    (mm)

    A1

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    41
    50
    37
    23
    66
    16
    M40X1.5
    5.5
    M5
    144
    62
    51
    15
    12
    25
    37-47
    17
    16
    48
    0.6051
    1 pieces
    52
    60
    45
    23
    80
    18
    M50X1.5
    6.5
    G1/8
    170
    73
    57
    13
    10.5
    32
    50-56
    20
    22
    60
    0.9827
    1 pieces
    56
    65
    50
    26
    87
    20
    M55X1.5
    6.8
    G1/8
    17
    73
    60
    13
    10.5
    40
    50-54.5
    25
    23.5
    66
    1.1800
    1 pieces
    63.5
    75
    58
    32
    100
    22
    M65X1.5
    8.5
    G1/8
    200
    79
    65
    11
    10.5
    50
    47-57
    30
    26
    77.5
    1.8100
    1 pieces
    74
    89
    70
    35
    118
    22
    M80X1.5
    8.5
    G1/8
    211
    80
    71.5
    11
    9
    63
    54-64
    30
    29.5
    88
    2.4400
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    344.84 €
    ( 410.36 € )
    4 working days
    363.40 €
    ( 432.45 € )
    4 working days
    385.25 €
    ( 458.45 € )
    4 working days
    557.75 €
    ( 663.72 € )
    4 working days
    609.50 €
    ( 725.30 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Automatable

    · Universal fastening possibilities

    · Double-acting
