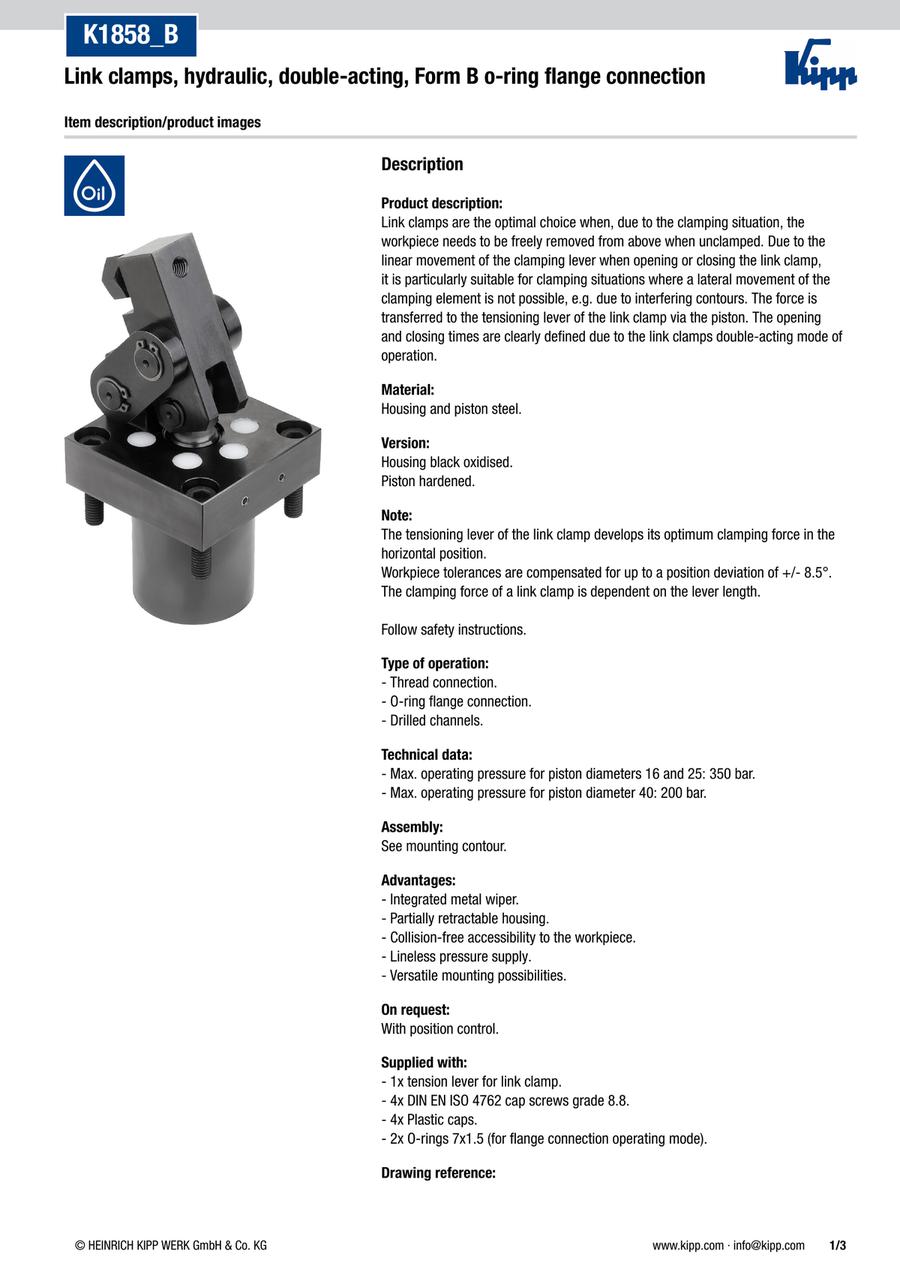

Link clamps, hydraulic, double-acting, Form B O-ring flange connection (K1858)
· Collision-free accessibility to the workpiece
· Lineless pressure supply
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1858.161204 |
| K1858.251204 |
| K1858.401204 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B (mm) | B1 (mm) | B2 (mm) | B4 (mm) | D (mm) | D1 (mm) | D2 (mm) | G (mm) | H (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | L (mm) | L1 (mm) | L2 (mm) | L4 (mm) | L5 (mm) | Piston diameter (mm) | L6 (mm) | B3 (mm) | L8 (mm) | L7 (mm) | L9 (mm) | Clamping force at 100 bar (kN) | C (degrees) | Clamping force at 350 bar (kN) | Clamping force at 200 bar (kN) | L10 | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
389.85 € | 1 | 4 Days | 61 | 38 | 7 | 20 | 38 | 38.5 | 4 | M6x12 | 117 | 41.5 | 37.5 | 10.5 | 22.5 | 52 | 38 | 15 | 28 | 19 | 16 | 49 | 38 | 7.5 | 35 | 38 | 1.5 | 69 | 5.2 | - | 24 | 0.8500 | ||
522.10 € | 1 | 4 Days | 72 | 56 | 8 | 27 | 50 | 50.5 | 4 | M8x22 | 156 | 50 | 54 | 19 | 22 | 72 | 56 | 24 | 44 | 24 | 25 | 63.5 | 56 | 10 | 36 | 56 | 3.9 | 65 | 13.8 | - | 28.1 | 2.2400 | ||
564.65 € | 1 | 4 Days | 95 | 62 | 13.5 | 29 | 70 | 70.5 | 5 | M10x22 | 191 | 65 | 67.7 | 20 | 25 | 100 | 78 | 36 | 66 | 31.5 | 40 | 82.5 | 78 | 10 | 50.5 | 62 | 9.5 | 65 | - | 19 | 42 | 4.3500 |
Loading...
Basic information
| Main material | Steel | Surface finish body | black oxidized | Form | B |
|---|---|---|---|---|---|
| Form-Type | double-acting | Item | Link Clamp | Version 1 | hydraulic |
| Connection type | O-ring flange connection | PL Edelstahl | false | RoHS | true |
