Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top (K1864)

Configure

Form-Type
- double-acting
- single-acting
B(mm)
- 50
- 63
B1(mm)
- 37
- 48
B2(mm)
- 28
- 41
D(mm)
- 44.8
- 59.8
D1(mm)
- 23.5
- 33.5
D2(mm)
- 20
- 32
D3(mm)
- 11
- 15
G(mm)
- M18x1.5
- M28x1.5
H(mm)
- 126.5
- 147.5
- 158.5
- 173.5
H1(mm)
- 78
- 94
- 107
H2(mm)
- 57
- 66
- 73
- 79
H3(mm)
- 34
- 40
H5(mm)
- 9
- 10
L(mm)
- 70
- 85
L1(mm)
- 26.5
- 34.5
L2(mm)
- 20
- 27
L3(mm)
- 30
- 38
L4(mm)
- 17
- 24
SW=key width(mm)
- 27
- 40
L5(mm)
- 26.5
- 31
H6(mm)
- 18
- 19
D4(mm)
- 6.6
- 9
H7(mm)
- 8
- 9
- 10
H8(mm)
- 10
- 13
- 25
Piston diameter(mm)
- 25
- 40
Travel
- 10
- 13
- 25
Flow rate max.(cm³/s)
- 3.2
- 10
Oil requirement / Stroke(cm³)
- 3.2
- 6
- 10
- 16
Swivel direction
- left
- right
B3(mm)
- 32
- 46
G1
- M6
- M8
D8(mm)
- 45
- 60
Oil requirement / Return stroke(cm³)
- 8.8
- 17
- 27.7
- 44
Weight(kg)
- 1.4000
- 1.4500
- 1.6000
- 2.3000
- 2.5400
- 2.7600
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

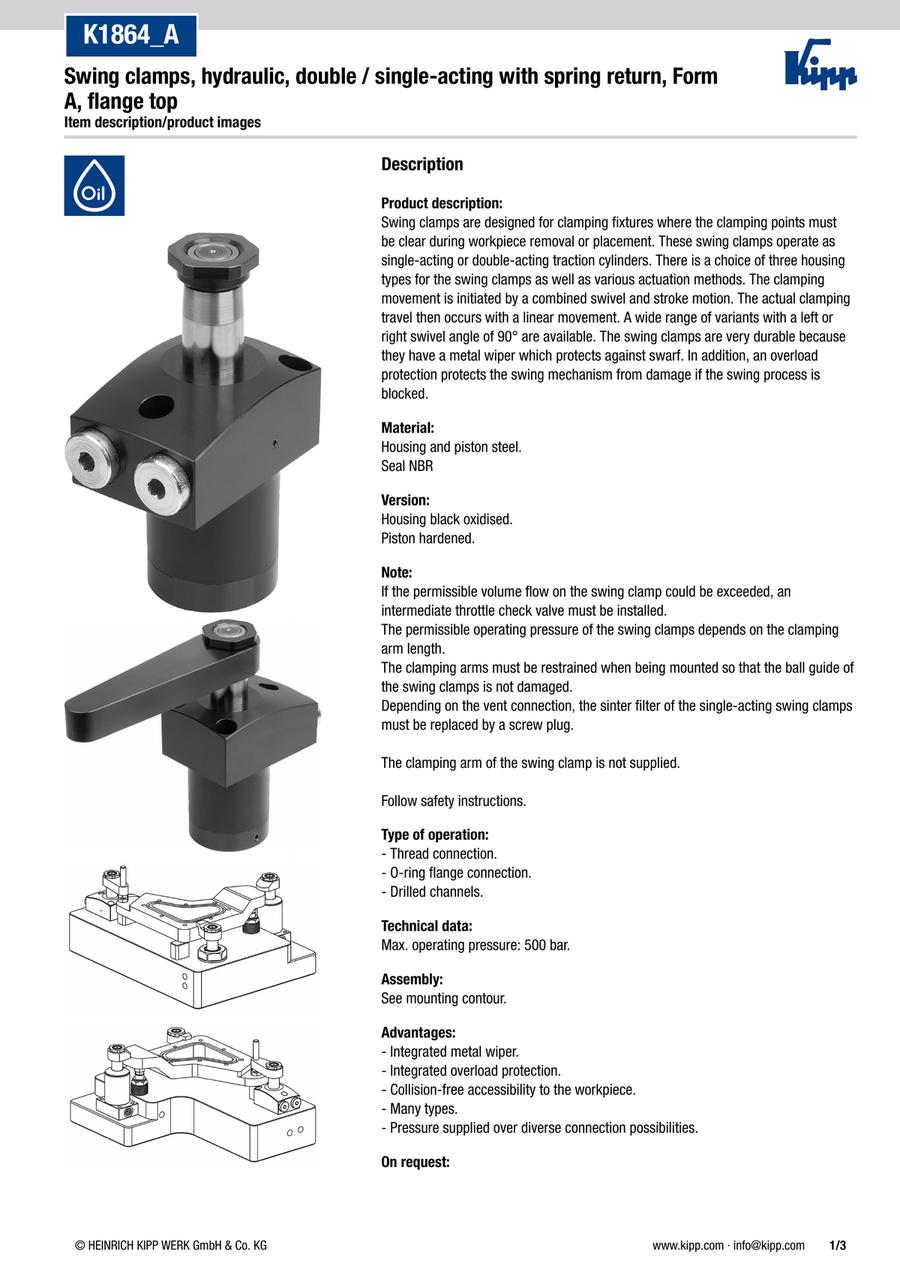

Swing clamps, hydraulic, double / single-acting with spring return, Form A, flange top (K1864)

Catalog

Part number:

Still undefined. 12 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Form-Type

(mm)

SW=key width

(mm)

Piston diameter

(mm)

Travel

Flow rate max.

(cm³/s)

Oil requirement / Stroke

(cm³)

Swivel direction

(mm)

Oil requirement / Return stroke

(cm³)

Weight

(kg)

Minimum order quantity

double-acting	50	37	28	44.8	23.5	20	11	M18x1.5	126.5	78	57	34	9	70	26.5	20	30	17	27	26.5	18	6.6	8	10	25	10	3.2	3.2	right	32	M6	45	8.8	1.4000	1 pieces
double-acting	50	37	28	44.8	23.5	20	11	M18x1.5	126.5	78	57	34	9	70	26.5	20	30	17	27	26.5	18	6.6	8	10	25	10	3.2	3.2	left	32	M6	45	8.8	1.4000	1 pieces
single-acting	50	37	28	44.8	23.5	20	11	M18x1.5	126.5	78	57	34	9	70	26.5	20	30	17	27	26.5	18	6.6	8	10	25	10	3.2	3.2	right	32	M6	45	-	1.4500	1 pieces
single-acting	50	37	28	44.8	23.5	20	11	M18x1.5	126.5	78	57	34	9	70	26.5	20	30	17	27	26.5	18	6.6	8	10	25	10	3.2	3.2	left	32	M6	45	-	1.4500	1 pieces
double-acting	50	37	28	44.8	23.5	20	11	M18x1.5	158.5	94	73	34	9	70	26.5	20	30	17	27	26.5	18	6.6	10	25	25	25	3.2	6	right	32	M6	45	17	1.6000	1 pieces
double-acting	50	37	28	44.8	23.5	20	11	M18x1.5	158.5	94	73	34	9	70	26.5	20	30	17	27	26.5	18	6.6	10	25	25	25	3.2	6	left	32	M6	45	17	1.6000	1 pieces
double-acting	63	48	41	59.8	33.5	32	15	M28x1.5	147.5	94	66	40	10	85	34.5	27	38	24	40	31	19	9	9	13	40	13	10	10	right	46	M8	60	27.7	2.5400	1 pieces
double-acting	63	48	41	59.8	33.5	32	15	M28x1.5	147.5	94	66	40	10	85	34.5	27	38	24	40	31	19	9	9	13	40	13	10	10	left	46	M8	60	27.7	2.5400	1 pieces
single-acting	63	48	41	59.8	33.5	32	15	M28x1.5	147.5	94	66	40	10	85	34.5	27	38	24	40	31	19	9	9	13	40	13	10	10	right	46	M8	60	-	2.3000	1 pieces
single-acting	63	48	41	59.8	33.5	32	15	M28x1.5	147.5	94	66	40	10	85	34.5	27	38	24	40	31	19	9	9	13	40	13	10	10	left	46	M8	60	-	2.3000	1 pieces
double-acting	63	48	41	59.8	33.5	32	15	M28x1.5	173.5	107	79	40	10	85	34.5	27	38	24	40	31	19	9	10	25	40	25	10	16	right	46	M8	60	44	2.7600	1 pieces
double-acting	63	48	41	59.8	33.5	32	15	M28x1.5	173.5	107	79	40	10	85	34.5	27	38	24	40	31	19	9	10	25	40	25	10	16	left	46	M8	60	44	2.7600	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

448.50 € ( 533.72 € )	4 working days
448.50 € ( 533.72 € )	4 working days
433.55 € ( 515.92 € )	4 working days
433.55 € ( 515.92 € )	4 working days
547.40 € ( 651.41 € )	4 working days
547.40 € ( 651.41 € )	4 working days
514.05 € ( 611.72 € )	4 working days
514.05 € ( 611.72 € )	4 working days
497.95 € ( 592.56 € )	4 working days
497.95 € ( 592.56 € )	4 working days
580.75 € ( 691.09 € )	4 working days
580.75 € ( 691.09 € )	4 working days

More Information

Basic information

Basic information

· Integrated metal wiper

· Integrated overload protection

· Collision-free accessibility to the workpiece
