Configure
- B(mm)
- 27
- 34
- 40
- 52
- 66
- 78
- B1(mm)
- 19.5
- 25
- 30
- 38.5
- 49
- 59
- D(mm)
- 20
- 27
- 34
- 43
- 57
- 71
- D1(mm)
- 21
- 28
- 35
- 44
- 58
- 72
- H(mm)
- 15
- 20
- 25
- 31.25
- 40
- 50
- H1(mm)
- 22
- 24
- 27.5
- 32
- 37
- 46
- H2(mm)
- 21
- 28
- 35
- 43.75
- 56
- 70
- H3(mm)
- 7
- 9
- 10.5
- 11.5
- 15.5
- 17.5
- H4(mm)
- 22.5
- 24.5
- 28
- 33
- 38
- 47
- H5(mm)
- 12
- 13
- 15
- 19
- 21
- 28
- L(mm)
- 27
- 35
- 41.5
- 53.5
- 68
- 82
- L1(mm)
- 9.75
- 13.5
- 16.5
- 20.75
- 26.5
- 33.5
- L2(mm)
- 3.75
- 4.5
- 5
- 6.75
- 8.5
- 9.5
- L3(mm)
- 7.5
- 10
- 12.5
- 15.63
- 20
- 25
- R(mm)
- 13.5
- 17
- 20
- 26
- 33
- 39
- H6(mm)
- 9.5
- 10
- 11
- 13
- 14.5
- 18.5
- Piston diameter(mm)
- 12
- 16
- 20
- 25
- 32
- 40
- Effective piston area (cm²)
- 2.27
- 4.52
- 7.06
- 11.34
- 21.23
- 33.18
- Piston force at 6 bar(kN)
- 0.14
- 0.27
- 0.42
- 0.68
- 1.27
- 1.99
- Weight(kg)
- 0.0600
- 0.1200
- 0.2182
- 0.4100
- 1.0400
- 1.5000
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

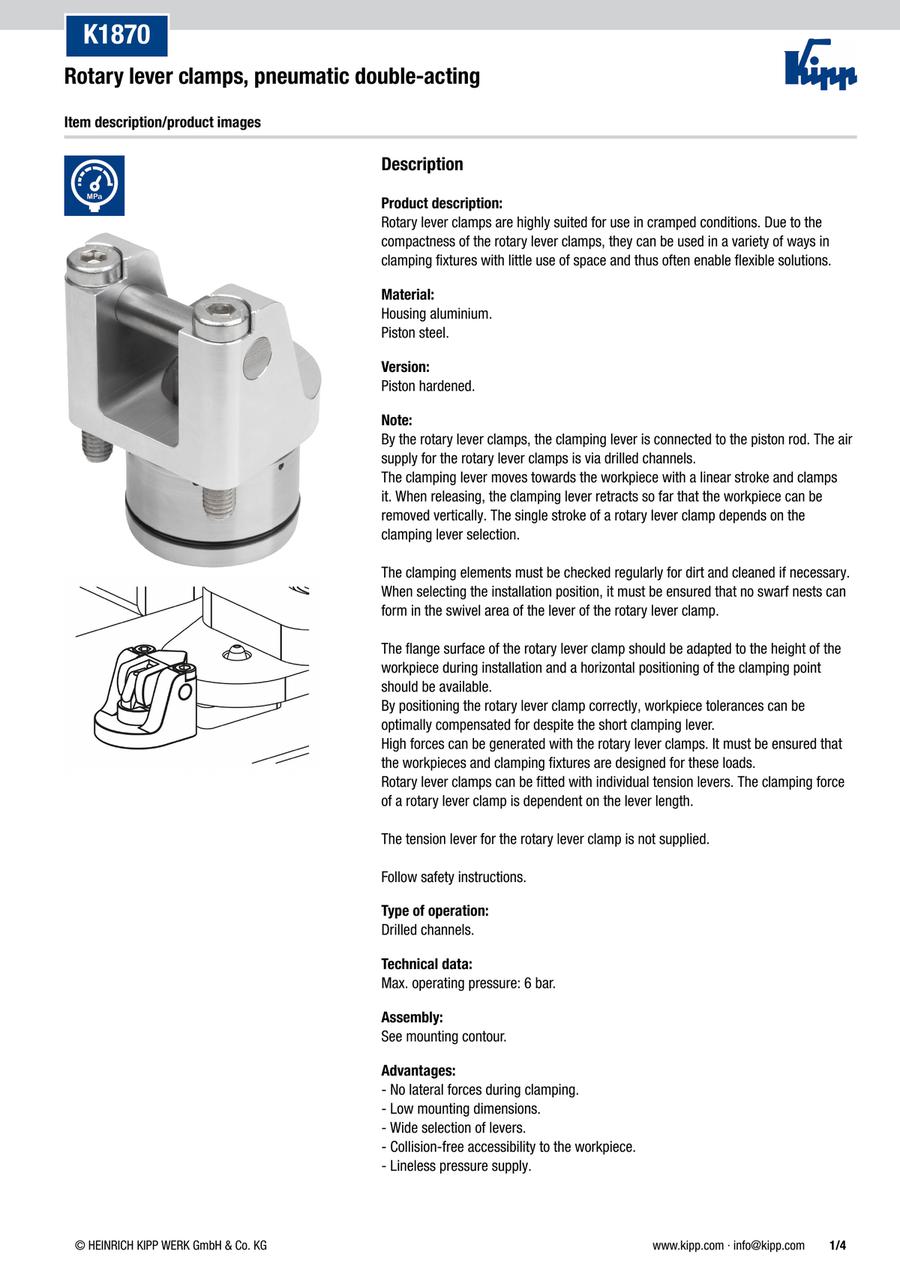

Rotary lever clamps, pneumatic double-acting (K1870)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
228.87 € ( 272.36 € ) | 4 working days |
243.64 € ( 289.93 € ) | 4 working days |
315.01 € ( 374.86 € ) | 4 working days |
334.70 € ( 398.29 € ) | 4 working days |
350.75 € ( 417.39 € ) | 4 working days |
405.95 € ( 483.08 € ) | 4 working days |
More Information
Basic information
· No lateral forces during clamping
· Low mounting dimensions.
· Wide selection of levers
· Collision-free accessibility to the workpiece
· Lineless pressure supply
