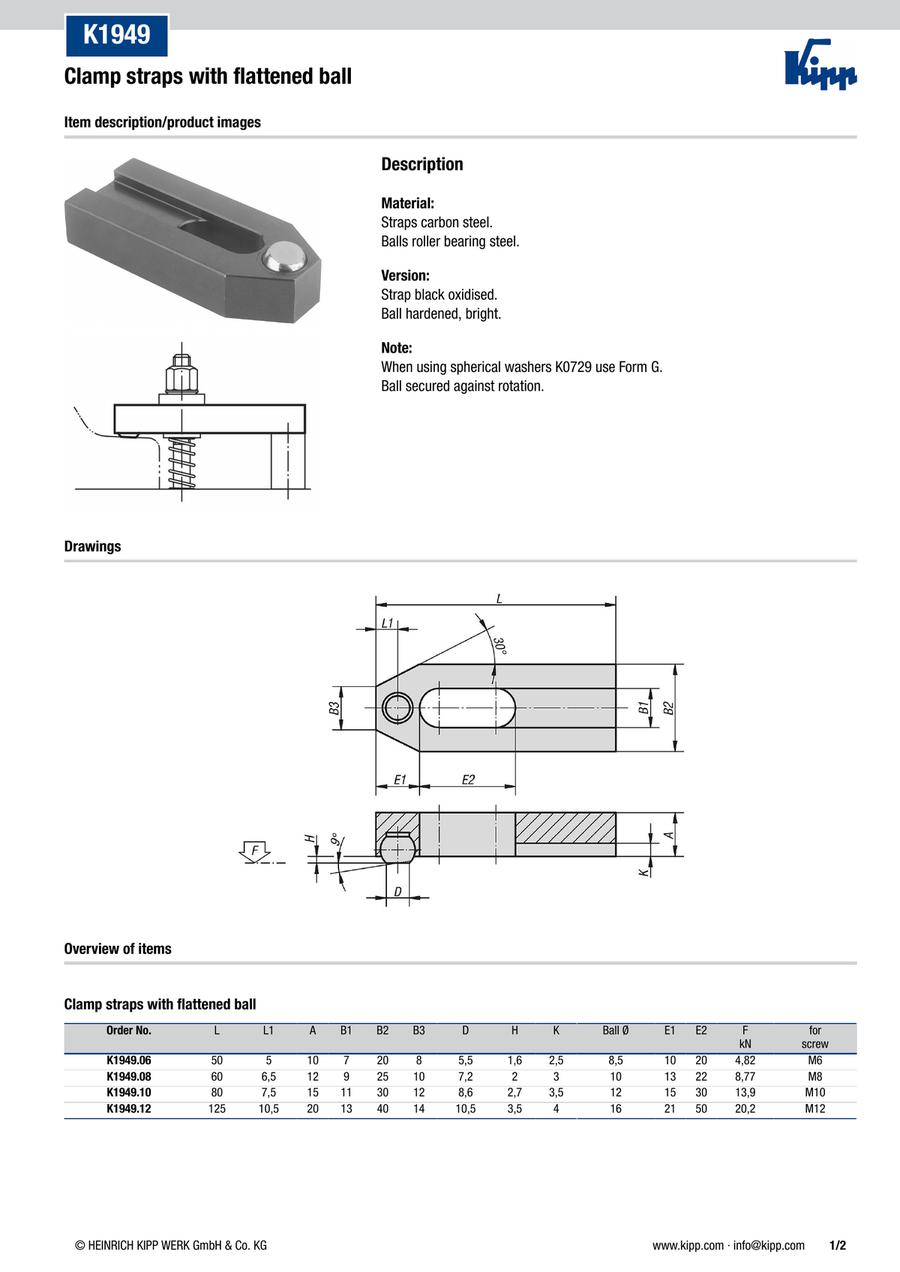

Clamp straps with flattened ball (K1949)
· Ball adjusts optimally to workpiece contours
· ball point hardened
· Application sectors: machine construction, toolmaking, fixture construction
· For clamping any workpiece and component
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1949.06 |
| K1949.08 |
| K1949.10 |
| K1949.12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A=Height (mm) | B1 (mm) | B2=Width (mm) | B3 (mm) | D (mm) | E1 (mm) | E2 (mm) | H (mm) | K (mm) | L=Length (mm) | L1 (mm) | F (kN) | Ball Ø (mm) | for Screw | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25.27 € | 1 | 4 Days | 10 | 7 | 20 | 8 | 5.5 | 10 | 20 | 1.6 | 2.5 | 50 | 5 | 4.82 | 8.5 | M6 | 0.0606 | ||
28.82 € | 1 | 4 Days | 12 | 9 | 25 | 10 | 7.2 | 13 | 22 | 2 | 3 | 60 | 6.5 | 8.77 | 10 | M8 | 0.1086 | ||
38.09 € | 1 | 4 Days | 15 | 11 | 30 | 12 | 8.6 | 15 | 30 | 2.7 | 3.5 | 80 | 7.5 | 13.9 | 12 | M10 | 0.2191 | ||
43.08 € | 1 | 4 Days | 20 | 13 | 40 | 14 | 10.5 | 21 | 50 | 3.5 | 4 | 125 | 10.5 | 20.2 | 16 | M12 | 0.6182 |
Loading...
Basic information
| Main material | High carbon steel | Component material | Ball-bearing steel | Item | Clamp Strap |
|---|---|---|---|---|---|
| Version 1 | with flattened ball | RoHS | true |
Configure
Basic Attributes
-
A=Height(mm)
-
B1(mm)
-
B2=Width(mm)
-
B3(mm)
-
D(mm)
-
E1(mm)
-
E2(mm)
-
H(mm)
-
K(mm)
-
L=Length(mm)
-
L1(mm)
-
F(kN)
-
Ball Ø(mm)
- 8.5
- 10
- 12
- 16
-
for Screw
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
