    KIPP

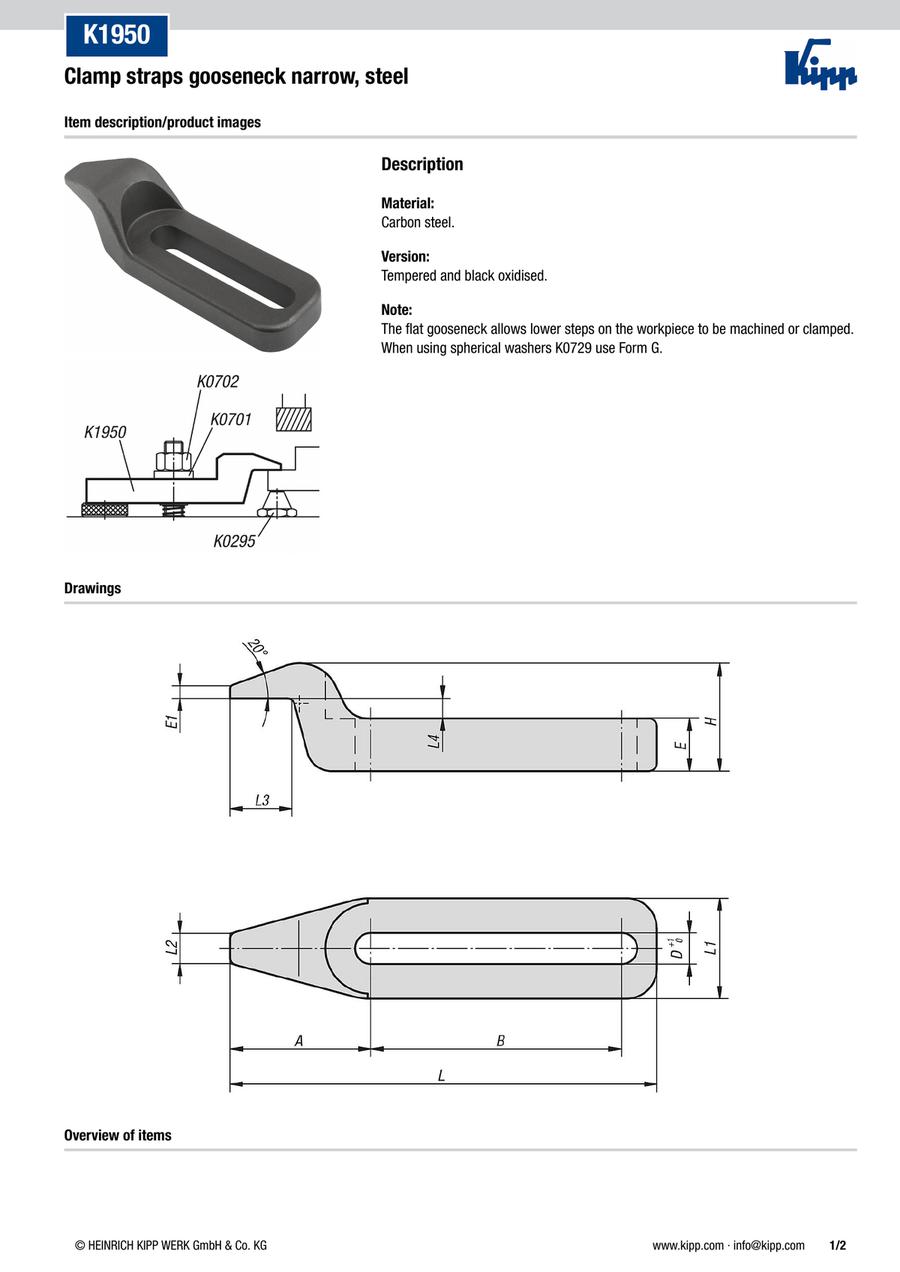

    Clamp straps gooseneck narrow, Steel (K1950)

    Clamp straps gooseneck narrow, Steel (K1950)

    Part number:

    Still undefined. 12 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1950.06005
    K1950.06010
    K1950.08005
    K1950.08010
    K1950.10005
    K1950.10010
    K1950.12005
    K1950.12010
    K1950.16005
    K1950.16010
    K1950.20005
    K1950.20010

    A

    (mm)

    B

    (mm)

    D

    (mm)

    E

    (mm)

    E1

    (mm)

    H=Height

    (mm)

    L=Length

    (mm)

    L2

    (mm)

    L3

    (mm)

    L4

    (mm)

    Retaining force

    (kN)

    L1=Width

    (mm)

    Weight

    (kg)

    		Minimum order quantity
    28
    32
    6.2
    7.5
    2.5
    18.5
    67
    6
    12.5
    4
    4.82
    20
    0.0593
    1 pieces
    28
    50
    6.2
    10.5
    2.5
    21.5
    85
    6
    12.5
    4
    4.82
    20
    0.0912
    1 pieces
    28
    32
    8.2
    7.5
    2.5
    18.5
    67
    6
    12.5
    4
    8.77
    20
    0.0528
    1 pieces
    28
    50
    8.2
    10.5
    2.5
    21.5
    85
    6
    12.5
    4
    8.77
    20
    0.0810
    1 pieces
    45
    50
    10.2
    12
    4
    30
    105
    10
    20
    6
    13.9
    30
    0.2287
    1 pieces
    45
    80
    10.2
    17
    4
    35
    135
    10
    20
    6
    13.9
    30
    0.3767
    1 pieces
    45
    50
    12.2
    12
    4
    30
    105
    10
    20
    6
    20.2
    30
    0.2126
    1 pieces
    45
    80
    12.2
    17
    4
    35
    135
    10
    20
    6
    20.2
    30
    0.3419
    1 pieces
    72
    80
    16.2
    19
    7
    48
    168
    16
    32
    9.5
    37.8
    48
    0.9248
    1 pieces
    72
    128
    16.2
    27
    7
    56
    216
    16
    32
    9.5
    37.8
    48
    1.5020
    1 pieces
    72
    80
    20.2
    19
    7
    48
    168
    16
    32
    9.5
    58.8
    48
    0.8551
    1 pieces
    72
    128
    20.2
    27
    7
    56
    216
    16
    32
    9.5
    58.8
    48
    1.3830
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    13.19 €
    ( 15.70 € )
    4 working days
    78.43 €
    ( 93.33 € )
    4 working days
    23.20 €
    ( 27.61 € )
    4 working days
    81.58 €
    ( 97.08 € )
    4 working days
    17.08 €
    ( 20.33 € )
    4 working days
    32.45 €
    ( 38.62 € )
    4 working days
    25.01 €
    ( 29.76 € )
    4 working days
    49.99 €
    ( 59.49 € )
    4 working days
    66.48 €
    ( 79.11 € )
    4 working days
    82.92 €
    ( 98.67 € )
    4 working days
    62.10 €
    ( 73.90 € )
    4 working days
    124.18 €
    ( 147.77 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Flat lug for clamping low profiles

    · Flexible application

    · Application sectors: machine construction, toolmaking, fixture construction

    · For clamping any workpiece and component
