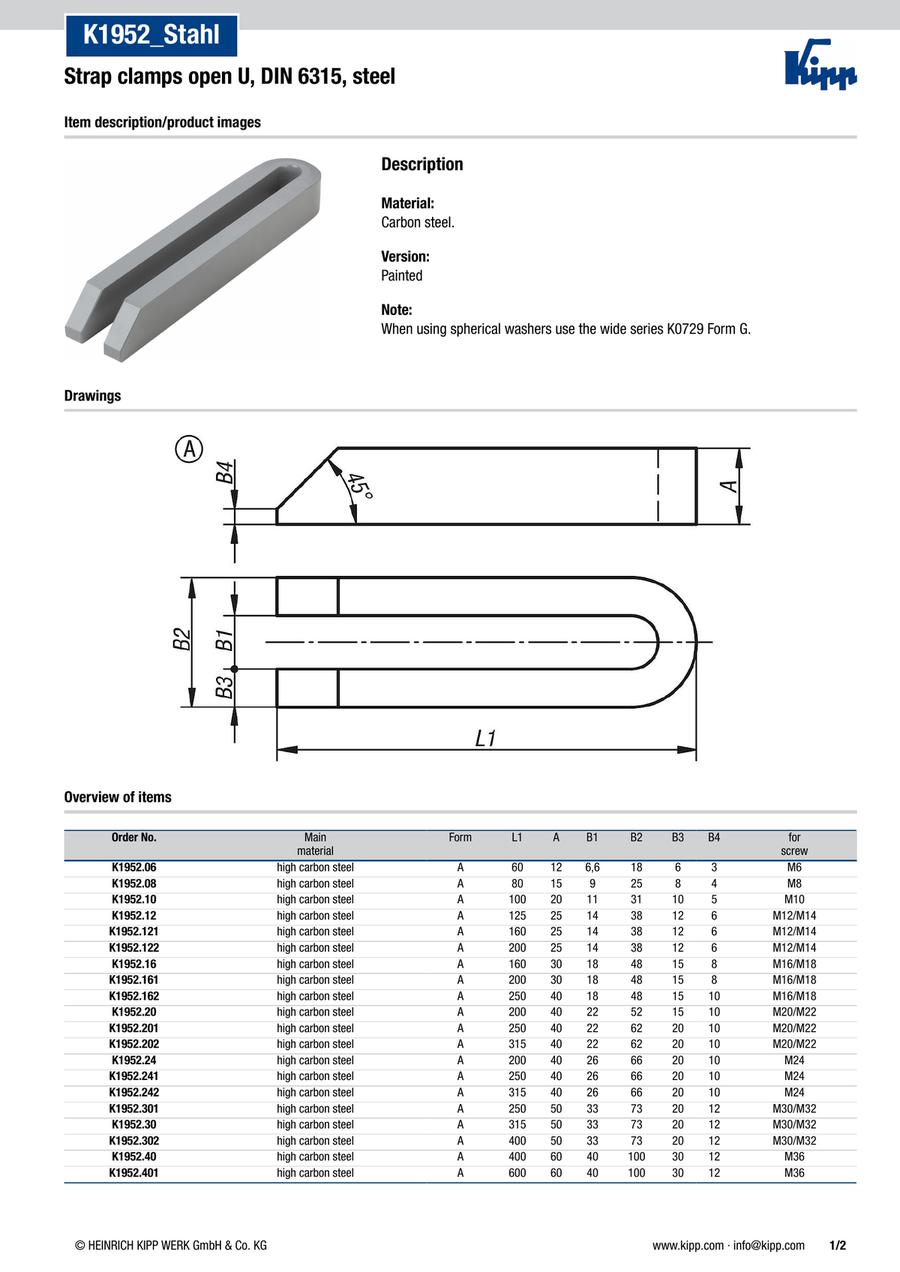

Strap clamps open U, DIN 6315, Steel (K1952)
· Flexible application
· Application sectors: machine construction, toolmaking, fixture construction
· For clamping any workpiece and component
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1952.06 |
| K1952.08 |
| K1952.10 |
| K1952.12 |
| K1952.16 |
| K1952.20 |
| K1952.24 |
| K1952.30 |
| K1952.40 |
| K1952.121 |
| K1952.122 |
| K1952.161 |
| K1952.162 |
| K1952.201 |
| K1952.202 |
| K1952.241 |
| K1952.242 |
| K1952.301 |
| K1952.302 |
| K1952.401 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A=Height (mm) | B1 (mm) | B2=Width (mm) | B3 (mm) | B4 (mm) | for Screw | L1=Length (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.95 € | 1 | 4 Days | 12 | 6.6 | 18 | 6 | 3 | M6 | 60 | 0.0639 | ||
10.07 € | 1 | 4 Days | 15 | 9 | 25 | 8 | 4 | M8 | 80 | 0.1400 | ||
11.40 € | 1 | 4 Days | 20 | 11 | 31 | 10 | 5 | M10 | 100 | 0.3006 | ||
13.46 € | 1 | 4 Days | 25 | 14 | 38 | 12 | 6 | M12/M14 | 125 | 0.5700 | ||
19.01 € | 1 | 4 Days | 30 | 18 | 48 | 15 | 8 | M16/M18 | 160 | 1.0640 | ||
29.01 € | 1 | 4 Days | 40 | 22 | 52 | 15 | 10 | M20/M22 | 200 | 1.7750 | ||
35.93 € | 1 | 4 Days | 40 | 26 | 66 | 20 | 10 | M24 | 200 | 2.3860 | ||
68.75 € | 1 | 4 Days | 50 | 33 | 73 | 20 | 12 | M30/M32 | 315 | 4.5800 | ||
179.61 € | 1 | 4 Days | 60 | 40 | 100 | 30 | 12 | M36 | 400 | 10.9000 | ||
15.46 € | 1 | 4 Days | 25 | 14 | 38 | 12 | 6 | M12/M14 | 160 | 0.7152 | ||
20.18 € | 1 | 4 Days | 25 | 14 | 38 | 12 | 6 | M12/M14 | 200 | 0.9100 | ||
21.97 € | 1 | 4 Days | 30 | 18 | 48 | 15 | 8 | M16/M18 | 200 | 1.3350 | ||
31.67 € | 1 | 4 Days | 40 | 18 | 48 | 15 | 10 | M16/M18 | 250 | 2.1630 | ||
39.15 € | 1 | 4 Days | 40 | 22 | 62 | 20 | 10 | M20/M22 | 250 | 3.0000 | ||
50.80 € | 1 | 4 Days | 40 | 22 | 62 | 20 | 10 | M20/M22 | 315 | 3.7660 | ||
41.98 € | 1 | 4 Days | 40 | 26 | 66 | 20 | 10 | M24 | 250 | 3.0280 | ||
60.50 € | 1 | 4 Days | 40 | 26 | 66 | 20 | 10 | M24 | 315 | 3.7800 | ||
59.81 € | 1 | 4 Days | 50 | 33 | 73 | 20 | 12 | M30/M32 | 250 | 3.6320 | ||
91.28 € | 1 | 4 Days | 50 | 33 | 73 | 20 | 12 | M30/M32 | 400 | 6.1000 | ||
238.49 € | 1 | 4 Days | 60 | 40 | 100 | 30 | 12 | M36 | 600 | 16.5000 |
Loading...
Basic information
| Main material | High carbon steel | Form | A | Item | Clamp Strap |
|---|---|---|---|---|---|
| Version 1 | open-U | RoHS | true |
