Configure

Main Body Material
- Steel
- Stainless Steel
Thread M
M3
M3.5
M5
M5
M6
M6
M8
M8
M10
M10
M12
M12
M14
M14x1.5
M16
M16
Steel code
- 1.4305
Surface finish body
- Bright
- Galvanised and passivated
Version 2
- LH Thread
- RH Thread
A(mm)
- 18
- 22
- 25
- 30
- 35
- 45
D1(mm)
- 8
- 10
- 13
- 16
- 19
D3(mm)
- 8
- 10
- 13
- 16
- 22
D4(mm)
- M4
- M5
- M6
- M8
- M10
- M12
- M14x1.5
- M16
E(mm)
- 8
- 10.2
- 11.5
- 14
- 15.5
- 21.5
L2(mm)
- 10.2
- 12.5
- 16.5
- 20
- 28
L3(mm)
- 9
- 11
- 13
- 16
- 20
SW(mm)
- 7
- 8
- 11
- 13
- 16
Est. shipping days
- All
- Within 4 working days

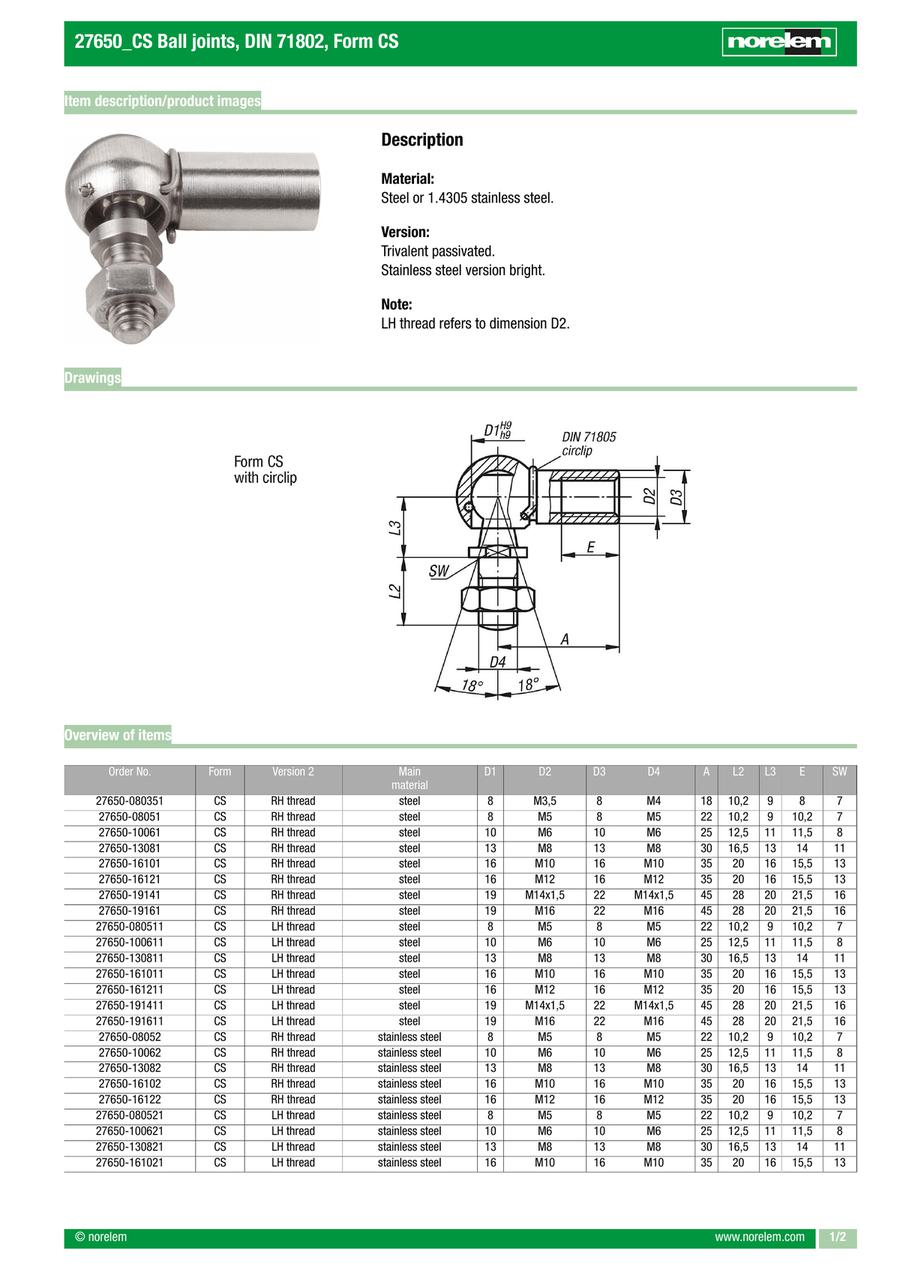

Ball joints, DIN 71802, Form CS (27650)

Catalog

Part number:

Still undefined. 25 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main Body Material

Thread M

Steel code

Surface finish body

Version 2

(mm)

Minimum order quantity

Steel	[M3] M3.5	-	Galvanised and passivated	RH Thread	18	8	8	M4	8	10.2	9	7	1 pieces
Steel	[M5] M5	-	Galvanised and passivated	RH Thread	22	8	8	M5	10.2	10.2	9	7	1 pieces
Stainless Steel	[M5] M5	1.4305	Bright	RH Thread	22	8	8	M5	10.2	10.2	9	7	1 pieces
Steel	[M5] M5	-	Galvanised and passivated	LH Thread	22	8	8	M5	10.2	10.2	9	7	1 pieces
Stainless Steel	[M5] M5	1.4305	Bright	LH Thread	22	8	8	M5	10.2	10.2	9	7	1 pieces
Steel	[M6] M6	-	Galvanised and passivated	RH Thread	25	10	10	M6	11.5	12.5	11	8	1 pieces
Stainless Steel	[M6] M6	1.4305	Bright	RH Thread	25	10	10	M6	11.5	12.5	11	8	1 pieces
Steel	[M6] M6	-	Galvanised and passivated	LH Thread	25	10	10	M6	11.5	12.5	11	8	1 pieces
Stainless Steel	[M6] M6	1.4305	Bright	LH Thread	25	10	10	M6	11.5	12.5	11	8	1 pieces
Steel	[M8] M8	-	Galvanised and passivated	RH Thread	30	13	13	M8	14	16.5	13	11	1 pieces
Stainless Steel	[M8] M8	1.4305	Bright	RH Thread	30	13	13	M8	14	16.5	13	11	1 pieces
Steel	[M8] M8	-	Galvanised and passivated	LH Thread	30	13	13	M8	14	16.5	13	11	1 pieces
Stainless Steel	[M8] M8	1.4305	Bright	LH Thread	30	13	13	M8	14	16.5	13	11	1 pieces
Steel	[M10] M10	-	Galvanised and passivated	RH Thread	35	16	16	M10	15.5	20	16	13	1 pieces
Stainless Steel	[M10] M10	1.4305	Bright	RH Thread	35	16	16	M10	15.5	20	16	13	1 pieces
Steel	[M10] M10	-	Galvanised and passivated	LH Thread	35	16	16	M10	15.5	20	16	13	1 pieces
Steel	[M12] M12	-	Galvanised and passivated	RH Thread	35	16	16	M12	15.5	20	16	13	1 pieces
Stainless Steel	[M10] M10	1.4305	Bright	LH Thread	35	16	16	M10	15.5	20	16	13	1 pieces
Stainless Steel	[M12] M12	1.4305	Bright	RH Thread	35	16	16	M12	15.5	20	16	13	1 pieces
Steel	[M12] M12	-	Galvanised and passivated	LH Thread	35	16	16	M12	15.5	20	16	13	1 pieces
Stainless Steel	[M12] M12	1.4305	Bright	LH Thread	35	16	16	M12	15.5	20	16	13	1 pieces
Steel	[M14] M14x1.5	-	Galvanised and passivated	RH Thread	45	19	22	M14x1.5	21.5	28	20	16	1 pieces
Steel	[M16] M16	-	Galvanised and passivated	RH Thread	45	19	22	M16	21.5	28	20	16	1 pieces
Steel	[M14] M14x1.5	-	Galvanised and passivated	LH Thread	45	19	22	M14x1.5	21.5	28	20	16	1 pieces
Steel	[M16] M16	-	Galvanised and passivated	LH Thread	45	19	22	M16	21.5	28	20	16	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

3.59 € ( 4.27 € )	4 working days
2.15 € ( 2.56 € )	4 working days
15.06 € ( 17.92 € )	4 working days
2.51 € ( 2.99 € )	4 working days
15.51 € ( 18.46 € )	4 working days
2.42 € ( 2.88 € )	4 working days
16.88 € ( 20.09 € )	4 working days
2.82 € ( 3.36 € )	4 working days
17.72 € ( 21.09 € )	4 working days
3.19 € ( 3.80 € )	4 working days
17.84 € ( 21.23 € )	4 working days
3.67 € ( 4.37 € )	4 working days
18.75 € ( 22.31 € )	4 working days
4.68 € ( 5.57 € )	4 working days
31.99 € ( 38.07 € )	4 working days
5.88 € ( 7.00 € )	4 working days
5.41 € ( 6.44 € )	4 working days
33.59 € ( 39.97 € )	4 working days
33.92 € ( 40.36 € )	4 working days
6.36 € ( 7.57 € )	4 working days
35.62 € ( 42.39 € )	4 working days
10.39 € ( 12.36 € )	4 working days
13.70 € ( 16.30 € )	4 working days
12.59 € ( 14.98 € )	4 working days
15.01 € ( 17.86 € )	4 working days

More Information

Basic information

Basic information

· Enables transmission and redirection of forces

· Application sectors: machine and vehicle construction, material handling

· Steel or stainless steel

· Version: right or left-hand thread
