Configure
- Main Body Material
- Thread M
- M5
- M5
- M6
- M6
- M8
- M8
- M10
- M10
- M14
- M14x1.5
- Steel code
- 1.4305
- Surface finish body
- Component material
- A(mm)
- 22
- 25
- 30
- 35
- 45
- D1(mm)
- 8
- 10
- 13
- 16
- 19
- E(mm)
- 10.2
- 11.5
- 14
- 15.5
- 21.5
- L3(mm)
- 9
- 11
- 13
- 16
- 20
- LA(mm)
- 19.2
- 23.5
- 29.5
- 36
- 48
- Extraction force F(N)
- 30
- 40
- 60
- 80
- 100
- Est. shipping days
- All
- Within 4 working days

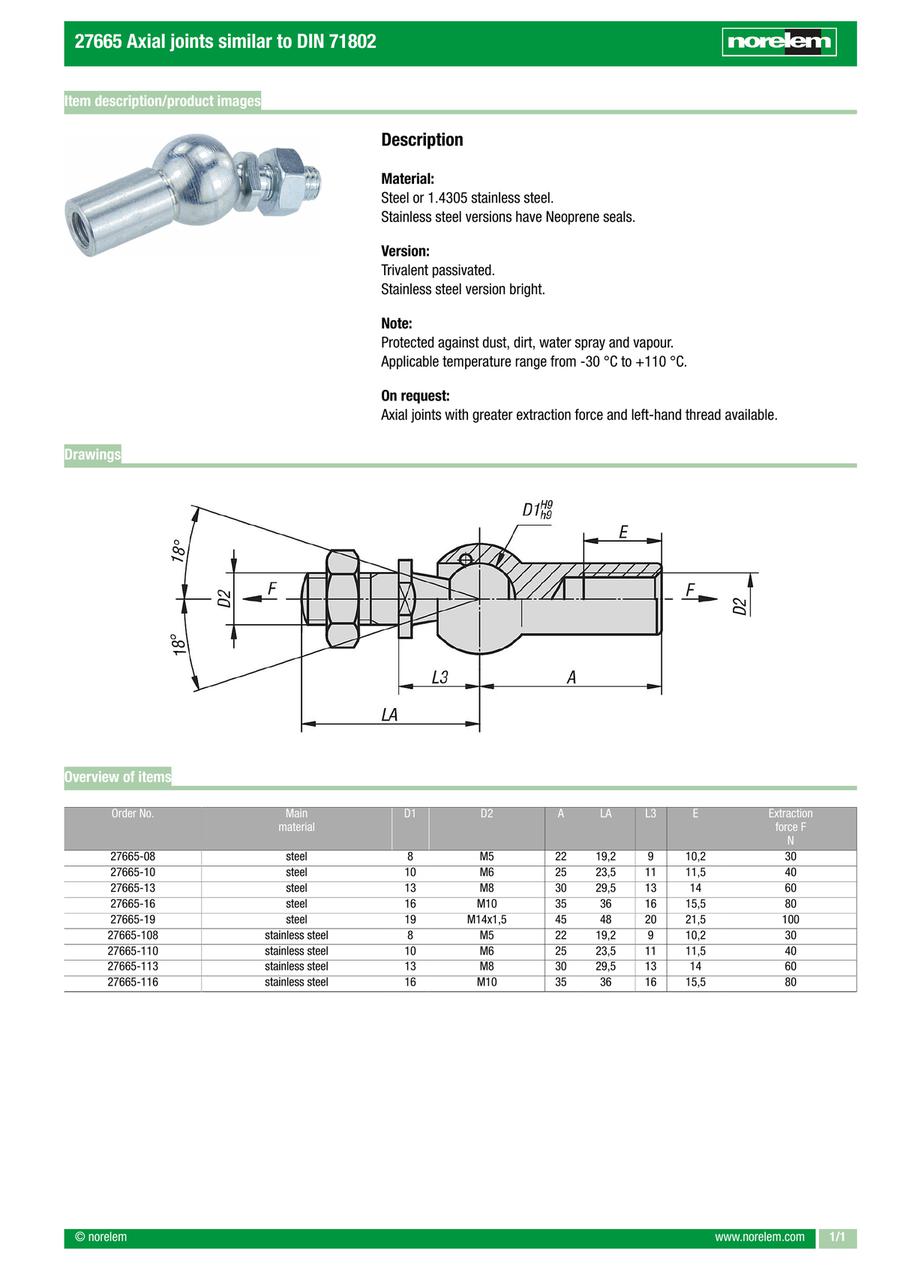

Axial joints similar to DIN 71802 (27665)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
6.54 € ( 7.78 € ) | 4 working days |
6.73 € ( 8.01 € ) | 4 working days |
10.07 € ( 11.98 € ) | 4 working days |
12.83 € ( 15.27 € ) | 4 working days |
18.06 € ( 21.49 € ) | 4 working days |
21.17 € ( 25.19 € ) | 4 working days |
21.90 € ( 26.06 € ) | 4 working days |
30.19 € ( 35.93 € ) | 4 working days |
41.66 € ( 49.58 € ) | 4 working days |
More Information
Basic information
· For transmitting movement processes
· Application sectors: machine and vehicle construction, material handling
· Temperature range: -30 °C to +110 °C
· Stainless steel version: protected against dust and dirt
