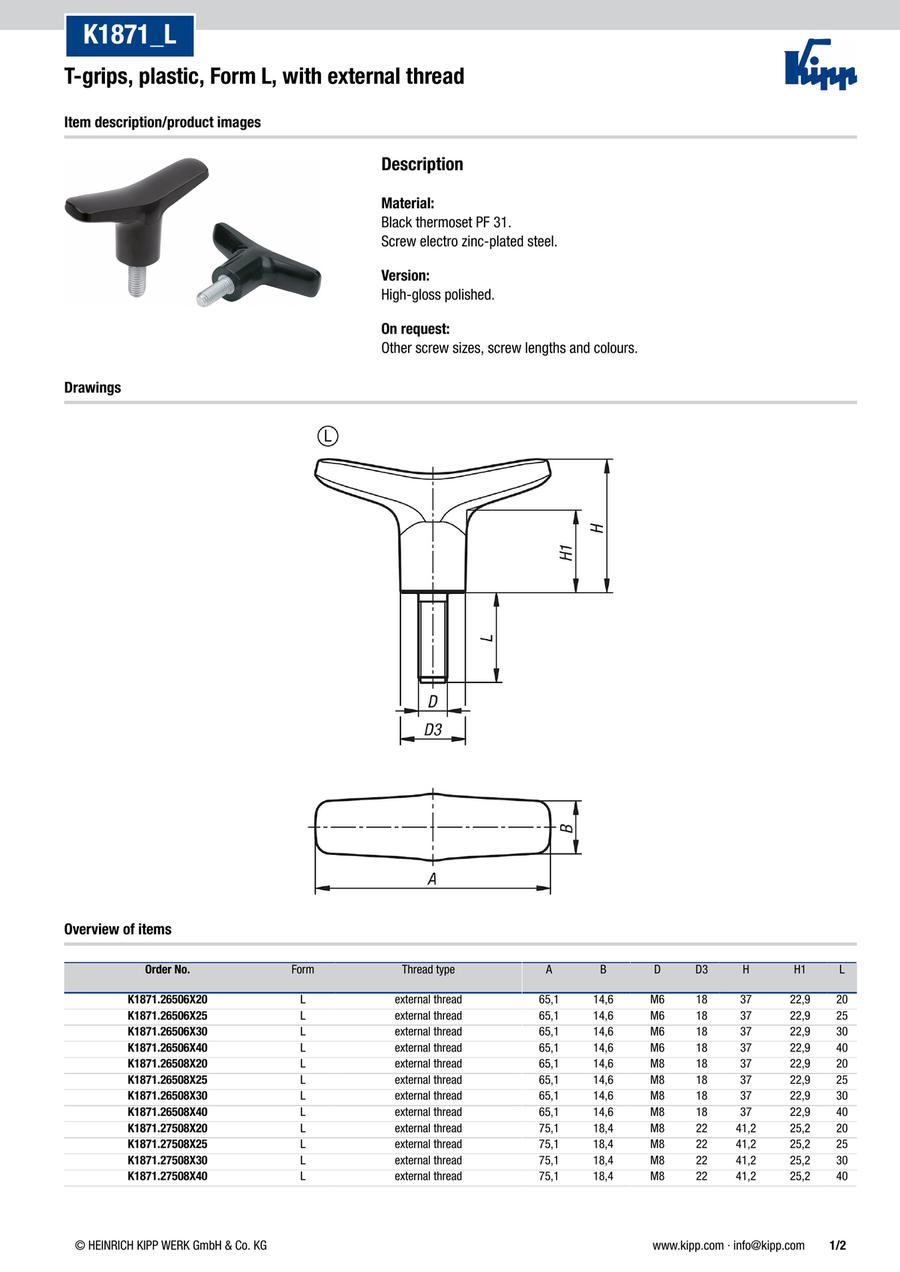

T-Grips, Plastic, Form L, with External thread (K1871)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A=Handle length (mm) | B=Width (mm) | D=thread (mm) | D3 (mm) | H=Height (mm) | L=thread length (mm) | H1 (mm) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.74 € | 1 | 4 Days | 65.1 | 14.6 | M6 | 18 | 37 | 20 | 22.9 | 0.0320 | ||
4.99 € | 1 | 4 Days | 65.1 | 14.6 | M6 | 18 | 37 | 25 | 22.9 | 0.0330 | ||
5.01 € | 1 | 4 Days | 65.1 | 14.6 | M6 | 18 | 37 | 30 | 22.9 | 0.0340 | ||
5.05 € | 1 | 4 Days | 65.1 | 14.6 | M6 | 18 | 37 | 40 | 22.9 | 0.0350 | ||
4.47 € | 1 | 4 Days | 65.1 | 14.6 | M8 | 18 | 37 | 20 | 22.9 | 0.0320 | ||
4.66 € | 1 | 4 Days | 65.1 | 14.6 | M8 | 18 | 37 | 25 | 22.9 | 0.0330 | ||
5.08 € | 1 | 4 Days | 65.1 | 14.6 | M8 | 18 | 37 | 30 | 22.9 | 0.0340 | ||
5.26 € | 1 | 4 Days | 65.1 | 14.6 | M8 | 18 | 37 | 40 | 22.9 | 0.0350 | ||
4.66 € | 1 | 4 Days | 75.1 | 18.4 | M8 | 22 | 41.2 | 20 | 25.2 | 0.0450 | ||
4.84 € | 1 | 4 Days | 75.1 | 18.4 | M8 | 22 | 41.2 | 25 | 25.2 | 0.0460 | ||
5.23 € | 1 | 4 Days | 75.1 | 18.4 | M8 | 22 | 41.2 | 30 | 25.2 | 0.0470 | ||
5.45 € | 1 | 4 Days | 75.1 | 18.4 | M8 | 22 | 41.2 | 40 | 25.2 | 0.0480 | ||
5.26 € | 1 | 4 Days | 75.1 | 18.4 | M10 | 22 | 41.2 | 30 | 25.2 | 0.0470 | ||
5.31 € | 1 | 4 Days | 75.1 | 18.4 | M10 | 22 | 41.2 | 40 | 25.2 | 0.0480 | ||
5.53 € | 1 | 4 Days | 75.1 | 18.4 | M10 | 22 | 41.2 | 50 | 25.2 | 0.0500 | ||
5.38 € | 1 | 4 Days | 85.2 | 19.6 | M10 | 24 | 44.8 | 30 | 26.5 | 0.0620 | ||
5.45 € | 1 | 4 Days | 85.2 | 19.6 | M10 | 24 | 44.8 | 40 | 26.5 | 0.0640 | ||
5.68 € | 1 | 4 Days | 85.2 | 19.6 | M10 | 24 | 44.8 | 50 | 26.5 | 0.0660 | ||
5.50 € | 1 | 4 Days | 85.2 | 19.6 | M12 | 24 | 44.8 | 30 | 26.5 | 0.0620 | ||
5.73 € | 1 | 4 Days | 85.2 | 19.6 | M12 | 24 | 44.8 | 40 | 26.5 | 0.0640 | ||
5.92 € | 1 | 4 Days | 85.2 | 19.6 | M12 | 24 | 44.8 | 50 | 26.5 | 0.0660 |
Loading...
Basic information
| Main material(mm) | duroplast | Surface finish body(mm) | High-gloss polished | Component material(mm) | steel |
|---|---|---|---|---|---|
| Surface finish component(mm) | blue-passivated | Main colour(mm) | black | Form(mm) | L |
| Item | T-Grip | Thread type | external thread | PL Edelstahl | false |
| RoHS | true |
Configure
Basic Attributes
-
A=Handle length(mm)
-
B=Width(mm)
-
D=thread(mm)
-
D3(mm)
-
H=Height(mm)
-
L=thread length(mm)
-
H1(mm)
-
Weight
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
