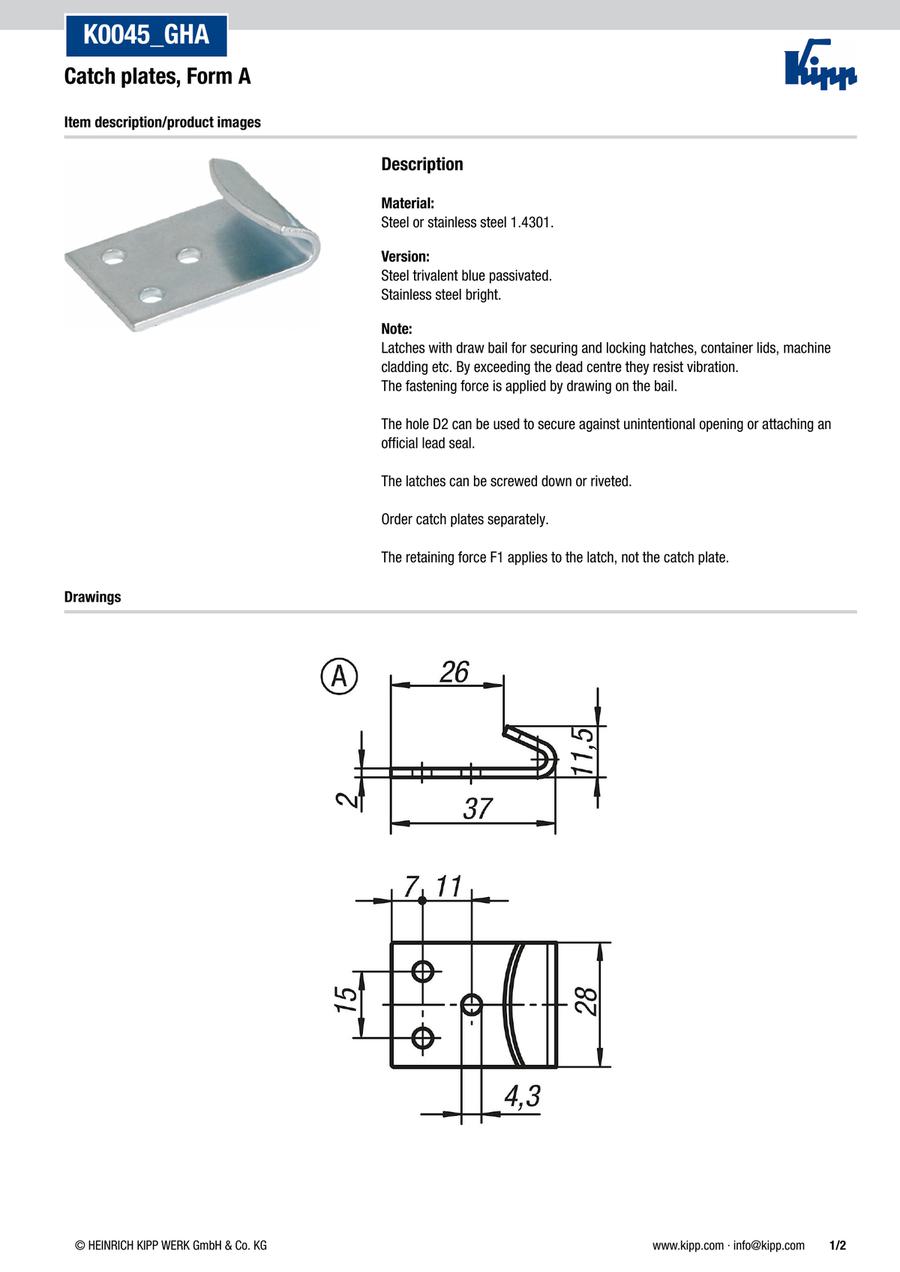

Catch plates, Form A (K0045)
Steel or stainless steel 1.4301
Version:
Galvanized and blue chromed.
Stainless steel bright.
Note:
Latches with draw bail for safe holding and locking of hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by drawing on the bail.
The hole D2 can be used to secure against unintentional opening or attaching an official lead seal.
The latches can be screwed down or riveted.
Order catch plates separately.
The retaining force F1 applies to the latch, not the catch plate.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0045.9143371 |
| K0045.9143372 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | for Art. No. | Surface finish body | Steel code component | PL Edelstahl | |
|---|---|---|---|---|---|---|---|---|---|
0.52 € | 1 | 4 Days | steel | K0045.1541091 | galvanised and passivated | - | false | ||
1.62 € | 1 | 4 Days | stainless steel | K0045.1541092 | bright | 1.4301 | true |
Loading...
Basic information
| Form | A | Version 1 | for latch | Version 2 | with draw bail |
|---|---|---|---|---|---|
| Item | Catch Plate | Weight(kg) | 0.0206 | RoHS | true |
Configure
Basic Attributes
-
Main material
- stainless steel
- steel
-
for Art. No.
-
Surface finish body
- bright
- galvanised and passivated
-
Steel code component
- 1.4301
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
