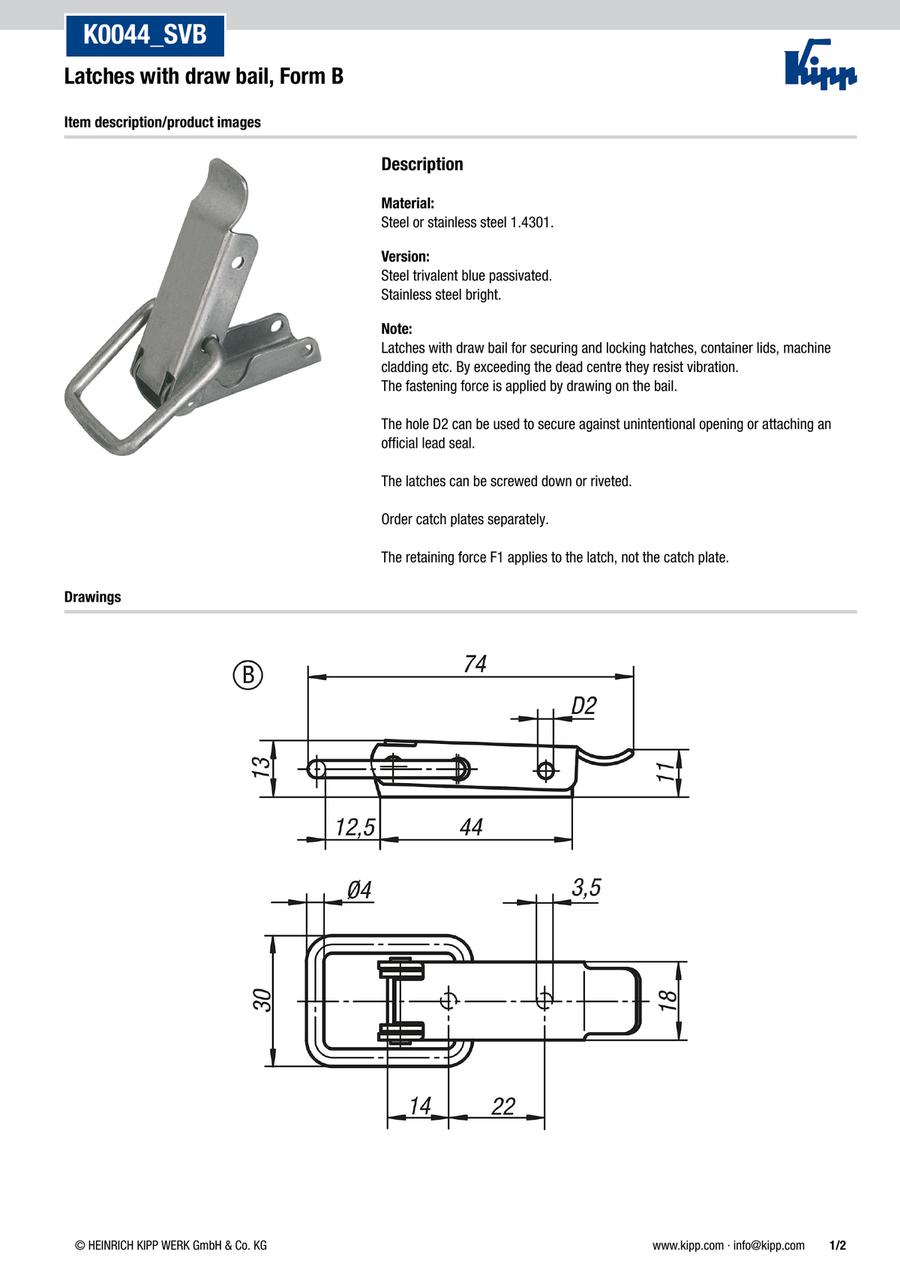

Latches with draw bail, Form B (K0044)
· Simple locking mechanism for covers, claddings and containers
· Application sectors: machine and plant construction, container construction
· Vibration-proof through exceeding dead centre point
· Latches can be screwed on or riveted
· Can be secured or sealed against unintentional loosening
· Application sectors: machine and plant construction, container construction
· Vibration-proof through exceeding dead centre point
· Latches can be screwed on or riveted
· Can be secured or sealed against unintentional loosening
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0044.2350741 |
| K0044.2350742 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Surface finish body | Steel code | Weight (kg) | PL Edelstahl | |
|---|---|---|---|---|---|---|---|---|---|
1.73 € | 1 | 4 Days | steel | galvanised and passivated | - | 0.044 | false | ||
4.78 € | 1 | 4 Days | stainless steel | bright | 1.4301 | 0.0381 | true |
Loading...
Basic information
| Form | B | Version 1 | with draw bail | Version 2 | fastening holes covered |
|---|---|---|---|---|---|
| D2(mm) | 3.2 | Item | Latch | Retaining force F1(N) | 2000 |
| Product type | Standard | RoHS | true |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
