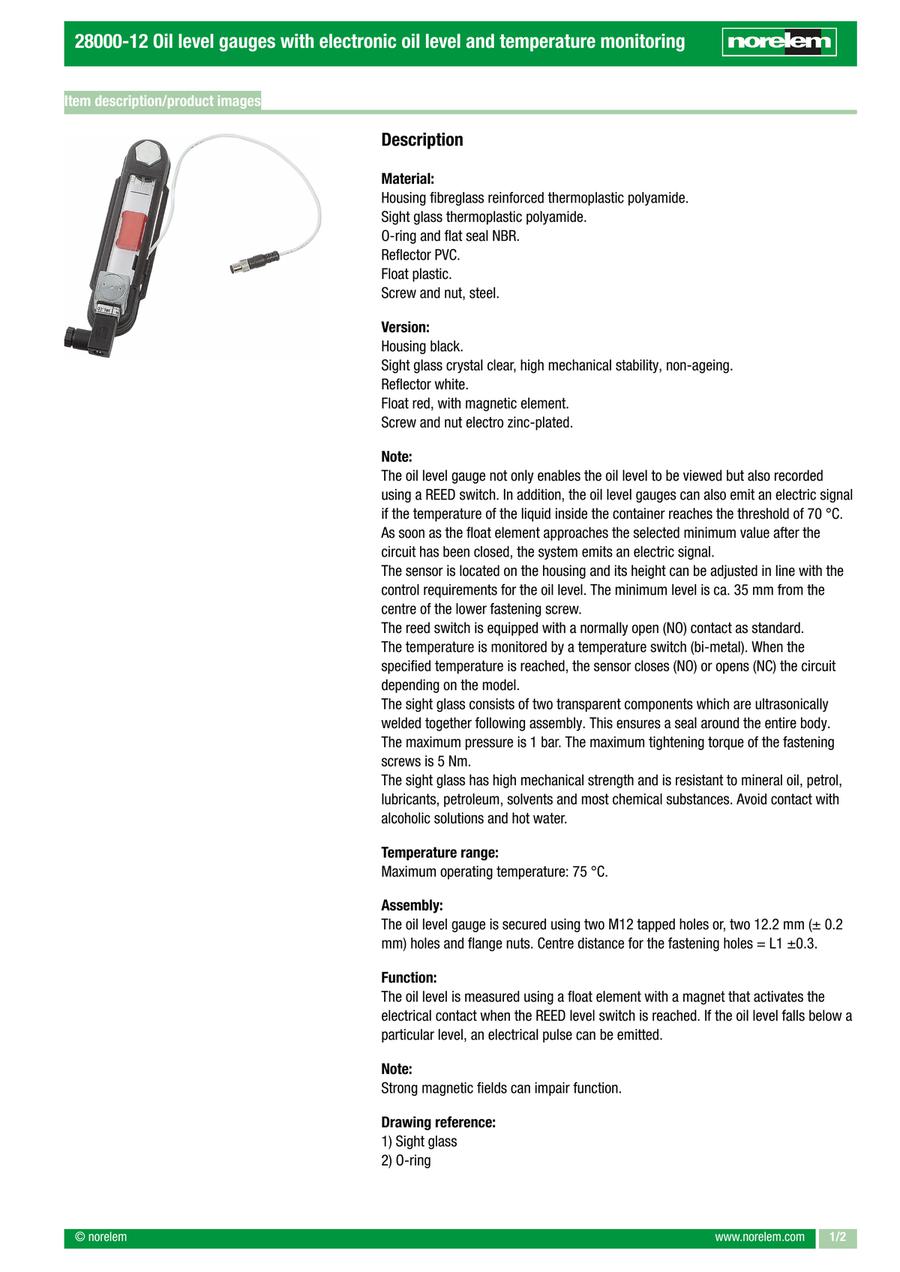

Oil level gauges with electronic oil level and temperature monitoring (28000)
· Recording of fill level visually and using reed switch
· Automatic warning when the liquid exceeds the maximum temperature
· Sight glass with good mechanical stability
· Temperature resistant to 75 °C
· Automatic warning when the liquid exceeds the maximum temperature
· Sight glass with good mechanical stability
· Temperature resistant to 75 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 28000-12-112712 |
| 28000-12-212712 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Version 2 | |
|---|---|---|---|---|---|
258.68 € | 1 | 4 Days | normally open contact | ||
258.68 € | 1 | 4 Days | normally closed contact |
Loading...
Basic information
| Main material | Plastic | Component material | Steel | B=Width(mm) | 42 |
|---|---|---|---|---|---|
| B1(mm) | 45 | D1=Thread | M12 | H=Height(mm) | 21 |
| H1(mm) | 21 | H2(mm) | 80 | L=Length(mm) | 164 |
| L1(mm) | 127 | L2(mm) | 91 | L3(mm) | 75 |
| L4(mm) | 191 | SW=key width(mm) | 19 | Number of fastening screws | 2 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
